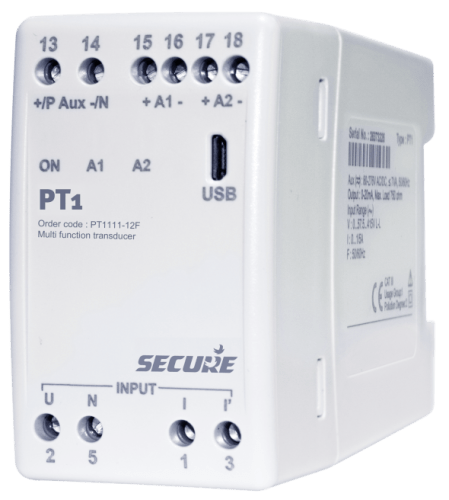

The Secure PT1 XX1-126 is a high-precision single-phase transducer designed for accurate measurement and conversion of electrical parameters into two galvanically isolated analog output signals. With Accuracy Class 0.2, it delivers precise True RMS measurements for industrial automation, power monitoring, and energy management applications. The compact DIN rail-mounted design, configurable measurement functions, and dual analog outputs make it ideal for switchgear, control panels, OEM equipment, and power distribution systems. The PT1 series supports on-site configuration via Micro USB and ConfigView software for flexible installation and operation.
| Parameter | Specification |
|---|---|
| Brand | Secure |
| Model | PT1 XX1-126 |
| Product Type | Single-Phase Transducer |
| System | Single Phase |
| Accuracy Class | 0.2 |
| Measurement | True RMS |
| Analog Outputs | 2 Isolated Outputs |
| Output Type | Configurable (mA / Voltage) |
| Voltage Input | 57.7–415 V AC |
| Current Input | 1 A / 5 A CT |
| Frequency | 50/60 Hz |
| Mounting | DIN Rail |
| Configuration | Micro USB with ConfigView Software |
| Protection | IP40 (Housing), IP20 (Terminals) |
| Operating Temperature | -5°C to +55°C |
| Standards | IEC 60688, IEC 61010-1, IEC 61326-1 |
| Applications | Switchgear, MCC, PCC, Industrial Automation, Energy Monitoring |
