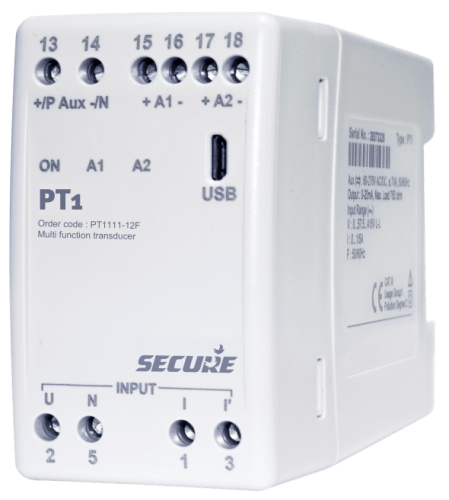

The Secure PT1 XX1-15F is a compact single-phase multifunction transducer designed for accurate measurement and conversion of electrical parameters into two isolated analog output signals. Featuring Accuracy Class 0.5, the transducer provides reliable True RMS measurements for industrial monitoring, automation, and energy management applications. Its dual-output design allows simultaneous transmission of two configurable measurement parameters, while on-site programmability enables flexible configuration to suit a wide range of applications. The PT1 series is ideal for switchgear, power distribution panels, OEM equipment, and process control systems.
| Parameter | Specification |
|---|---|
| Brand | Secure |
| Model | PT1 XX1-15F |
| Product Type | Multifunction Transducer |
| System | Single Phase |
| Accuracy Class | 0.5 |
| Measurement | True RMS |
| Analog Outputs | 2 Isolated Outputs |
| Output Type | Configurable (mA / Voltage) |
| Voltage Input | 57.7–415 V AC |
| Current Input | 1 A / 5 A CT |
| Frequency | 50/60 Hz |
| Mounting | DIN Rail |
| Configuration | Micro USB with ConfigView Software |
| Housing Protection | IP40 (Housing), IP20 (Terminals) |
| Operating Temperature | -5°C to +55°C |
| Standards | IEC 60688, IEC 61010-1, IEC 61326-1 |
| Applications | Power Distribution Panels, Switchgear, OEM Panels, Industrial Automation, Energy Monitoring Systems |
