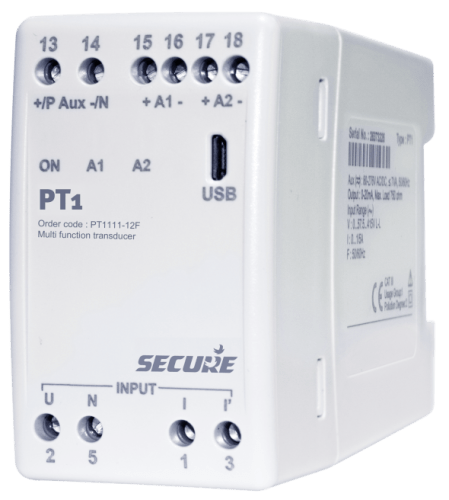

The Secure PT1 XX1-12F is a compact single-phase multifunction transducer designed for accurate measurement and conversion of multiple electrical parameters in industrial power monitoring and automation systems. Featuring Accuracy Class 0.2, the transducer delivers precise True RMS measurements and provides two galvanically isolated analog outputs for seamless integration with PLCs, SCADA, DCS, and energy management systems. Its configurable measurement functions, compact DIN rail-mounted design, and fast response time make it an ideal solution for switchgear, control panels, OEM equipment, and utility applications.
| Parameter | Specification |
|---|---|
| Brand | Secure |
| Model | PT1 XX1-12F |
| Product Type | Multifunction Transducer |
| System | Single Phase |
| Accuracy Class | 0.2 |
| Measurement | True RMS Multi-Parameter Measurement |
| Analog Outputs | 2 Isolated Outputs |
| Output Type | Configurable (mA or Voltage) |
| Voltage Input | 57.7–415 V AC |
| Current Input | 1 A / 5 A CT |
| Frequency | 50/60 Hz |
| Response Time | 100–220 ms |
| Mounting | DIN Rail |
| Configuration | Micro USB with ConfigView Software |
| Protection | IP40 (Housing), IP20 (Terminals) |
| Operating Temperature | -5°C to +55°C |
| Standards | IEC 60688, IEC 61010-1, IEC 61010-2-30, IEC 61326-1 |
| Applications | Power Monitoring, Switchgear, PLC Panels, SCADA, Industrial Automation, Energy Management Systems |
