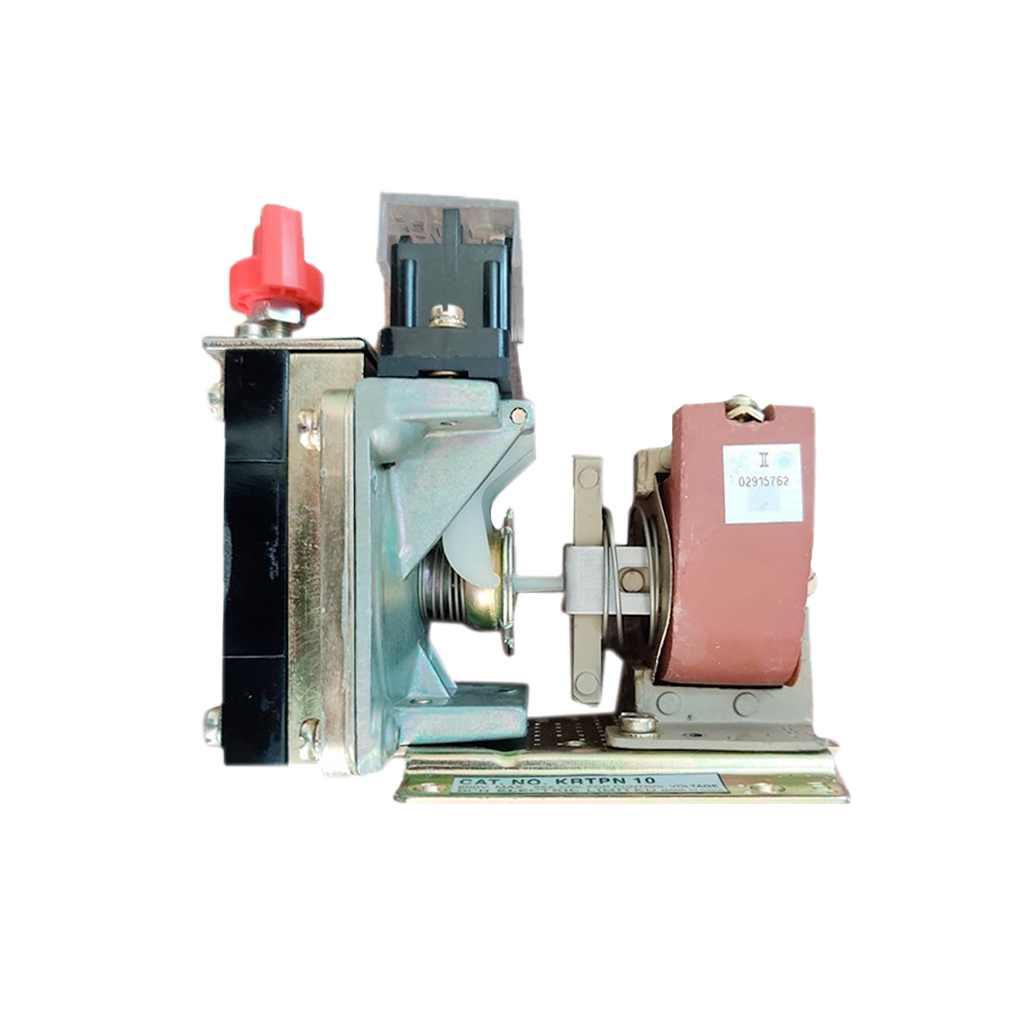

The Pneumatic Timer for Railway Application (Model: KRTPN20A-3R) is a highly reliable and precision-engineered timing device designed specifically for railway signaling and automation systems. Built with advanced electro-pneumatic technology, this timer ensures accurate and consistent time delay operations, which are essential for maintaining safety, coordination, and efficiency in railway infrastructure.
This model operates on a time delay mechanism with ON delay function, allowing the output contacts to activate after a preset time interval once the input signal is applied. It is widely used in railway systems for applications such as signal timing, track switching, warning systems, and sequential control operations. The timer plays a critical role in ensuring smooth and safe railway functioning by providing precise timing control.
The KRTPN20A-3R features a fixed timing range of 150 seconds, making it suitable for applications that require longer delay cycles. The electro-pneumatic design ensures smooth operation through a pneumatic damping system, delivering stable and repeatable performance even in continuous duty cycles.
Designed for harsh railway environments, this timer is built with a rugged and durable industrial-grade housing that can withstand vibration, dust, humidity, and temperature variations. Its panel mount configuration allows easy installation into control panels and signaling equipment while maintaining a compact and organized layout.
One of the key advantages of this timer is its reduced dependency on electronic circuitry, which enhances reliability and minimizes the risk of failure due to voltage fluctuations or electrical disturbances. The device also provides high repeat accuracy and fast reset response, ensuring efficient operation in repetitive control processes.
The relay is equipped with 2NO + 2NC contact configuration, offering flexibility in circuit design and control applications. This makes it suitable for complex railway control systems where multiple switching operations are required simultaneously.
Overall, the KRTPN20A-3R Railway Pneumatic Timer is a dependable, low-maintenance, and high-performance solution for railway and industrial automation applications. Its combination of precision, durability, and ease of integration makes it a preferred choice for engineers and system integrators.
