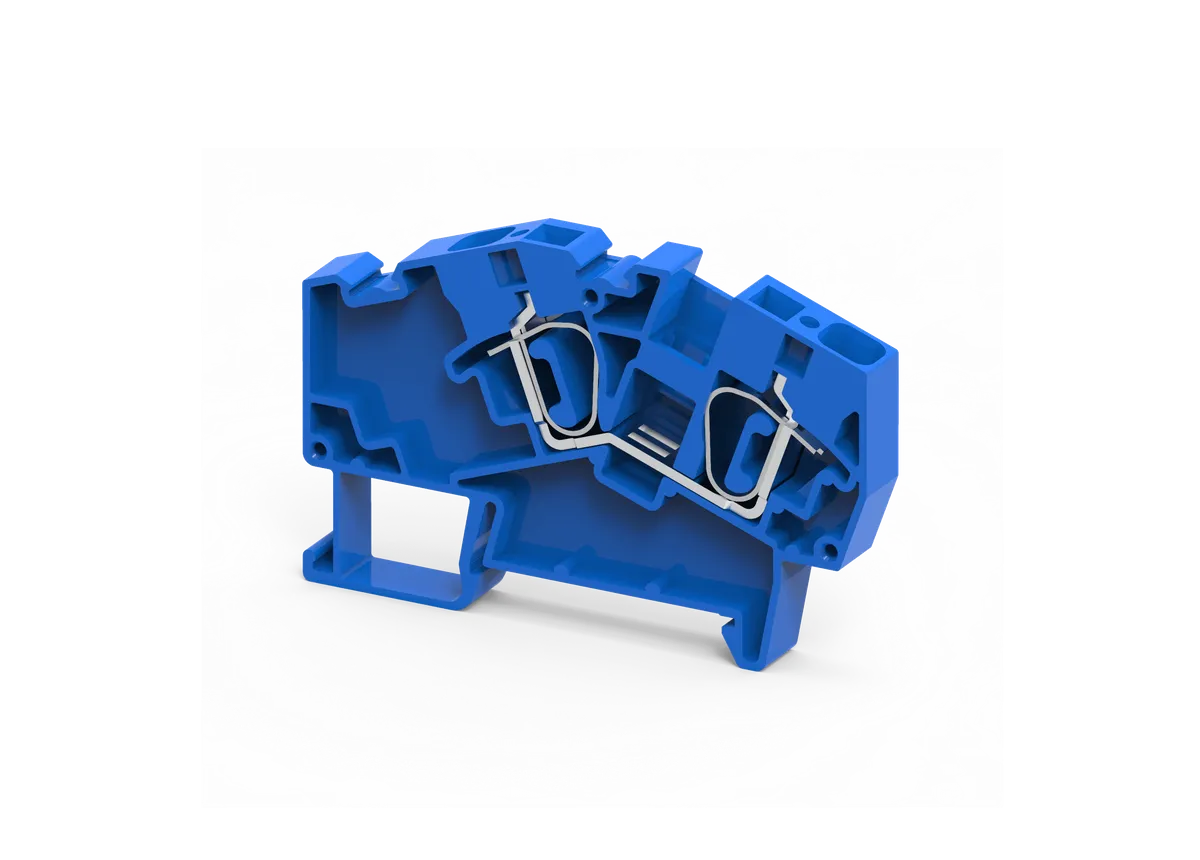

AS6BU is a 6 sq.mm angular spring clamp feed through terminal block in blue color specially designed for industrial electrical systems where compact panel wiring, angular wire entry, neutral circuit grouping, and secure conductor termination are required. In electrical control panels, PLC cabinets, switchboards, industrial automation systems, machine control panels, and under-floor wiring applications, engineers often need a terminal block that can save panel height and conductor length while maintaining secure electrical continuity.
Unlike conventional top-entry terminal blocks, the AS6BU features an angular wire entry design, which allows conductors to enter from the side angle. This helps reduce conductor bending radius, saves wire length, and makes it highly suitable for compact junction boxes and low-height panel installations where space optimization is critical.
The blue housing provides a visual identification advantage and is commonly used for neutral circuit identification, dedicated wiring sections, and organized electrical panel grouping, helping technicians quickly identify circuit sections during maintenance and troubleshooting. Its spring clamp conductor locking technology provides vibration-resistant conductor retention and maintenance-free electrical continuity, making it ideal for industrial applications where reliability and fast wiring installation are essential.
The AS6BU operates as an angular feed through spring clamp terminal block, where conductors are inserted through an angular side-entry orientation and locked through a spring pressure connection mechanism. This provides secure conductor retention without frequent retightening.
Its working design provides:
The spring clamp system provides dependable conductor holding even in vibration-prone industrial electrical systems, while the angular wire entry design improves installation flexibility in restricted panel spaces.
The blue housing color improves visual recognition of dedicated terminal sections inside electrical panels. Blue terminal blocks are commonly used where neutral conductor circuits and dedicated panel wiring sections require fast identification.
Safety advantages include:
Blue terminal blocks are widely used for:
This improves organized electrical panel management and reduces maintenance errors.
The AS6BU is manufactured using flame-retardant polyamide insulated housing with precision spring clamp conductive hardware, designed for demanding industrial electrical environments.
Construction advantages include:
Its rugged construction ensures dependable industrial electrical performance in compact panel installations.
Using AS6BU improves electrical panel layout by supporting angular conductor routing and compact terminal wiring.
Benefits include:
| Parameter | Specification |
|---|---|
| Product Code | AS6BU |
| Product Type | Angular Spring Clamp Feed Through Terminal Block |
| Color | Blue |
| Rated Voltage | 800 V |
| Rated Current | 41 A |
| Conductor Capacity | 0.2 – 6 mm² |
| AWG Range | 22 – 8 AWG |
| Connection System | Spring Clamp |
| Wire Entry Orientation | Angular Entry |
| Mounting Style | DIN 35 / DIN 35-15 Rail |
| Operation | Screwdriver Operated |
| Housing Material | Polyamide |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Stripping Length | 15 mm |
| Length | 74 mm |
| Width (Thickness) | 8 mm |
| Height | 57 mm |
| Electrical Function | Feed Through Terminal |
| Mechanical Strength | High |
| Industrial Use | PLC Panels, Junction Boxes, Under Floor Wiring |
Saves conductor length and reduces wire bending.
Ideal for low-height and compact junction box installations.
Reliable conductor holding without frequent retightening.
Blue housing supports quick identification.
Suitable for industrial operating conditions.
Built for demanding electrical environments.
Supports clean and structured electrical layouts.
AS6BU is widely used in:
