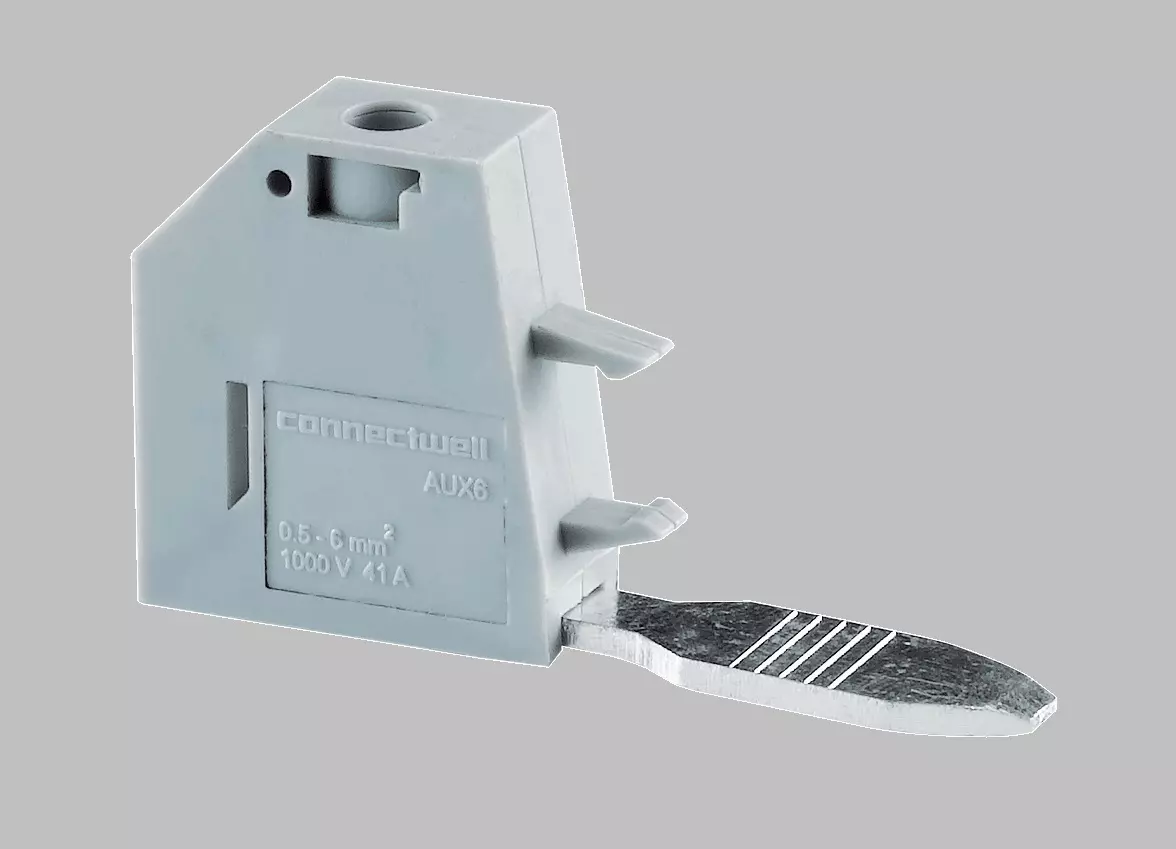

AUX6 is a plug-in auxiliary terminal block specially designed for industrial electrical systems where an additional auxiliary connection point is required in heavy-duty power terminal circuits. In electrical control panels, switchboards, power distribution systems, motor control centers, and industrial automation panels, engineers often need to take an extra output from a power terminal for auxiliary circuits such as indicating lamps, contactor coils, signaling devices, monitoring circuits, relays, or control feedback systems.
Instead of adding separate wiring joints or using additional terminal blocks, the AUX6 provides a direct plug-in auxiliary connection point that mounts onto compatible power terminal blocks. This makes it easy to take an additional signal or control connection from the main power circuit without disturbing the primary conductor connection. This improves panel wiring organization, saves installation time, and reduces the use of extra wiring accessories.
The AUX6 is commonly used with heavy-duty power terminal series where auxiliary control circuits must be connected safely and reliably. It is highly suitable for industrial applications where power circuits and auxiliary control circuits need to work together in one organized terminal assembly.
The AUX6 works as a plug-in auxiliary terminal accessory, where it is mounted directly onto a compatible power terminal block and provides an additional feed through conductor connection for auxiliary circuits.
Its working design provides:
This design eliminates the need for separate tapping arrangements and creates a clean auxiliary circuit connection inside industrial electrical panels.
The AUX6 improves electrical safety by creating a dedicated auxiliary connection point instead of using unsafe wire tapping methods.
Safety advantages include:
This improves electrical panel reliability and reduces installation mistakes.
The AUX6 provides several panel wiring advantages.
Benefits include:
This makes industrial electrical systems more organized and maintenance-friendly.
The AUX6 is manufactured using industrial-grade polyamide insulated housing with precision conductive hardware, designed for demanding industrial electrical environments.
Construction advantages include:
Its rugged construction ensures dependable performance in industrial auxiliary circuit wiring applications.
Using AUX6 improves electrical panel layout by creating a dedicated auxiliary take-off point within the power terminal assembly.
Benefits include:
| Parameter | Specification |
|---|---|
| Product Code | AUX6 |
| Product Type | Auxiliary Terminal Block |
| Rated Voltage | 1000 V |
| Rated Current | 41 A |
| Conductor Capacity (Stranded) | 0.5 – 6 mm² |
| Conductor Capacity (Solid) | 0.5 – 10 mm² |
| AWG Range | 22 – 8 AWG |
| Connection System | Screw Clamp |
| Screw Size | M3.5 |
| Tightening Torque | 0.8 Nm |
| Mounting Type | Plug-In Auxiliary Mounting |
| Wire Entry Orientation | Side Entry |
| Housing Material | Polyamide |
| Height | 29.4 mm |
| Length | 53.6 mm |
| Width (Thickness) | 8 mm |
| Electrical Function | Auxiliary Feed Through Connection |
| Mechanical Strength | High |
| Compatible Use | Heavy Duty Power Terminal Blocks |
| Industrial Use | Control Panels, Switchboards, Power Circuits |
Provides an easy additional circuit take-off.
Fast installation on compatible power terminals.
Reduces the need for extra terminals and wiring accessories.
Screw clamp design provides reliable conductor holding.
Improves organized control circuit wiring.
Built for demanding electrical environments.
Supports faster troubleshooting and servicing.
AUX6 is widely used in:
