Product Description

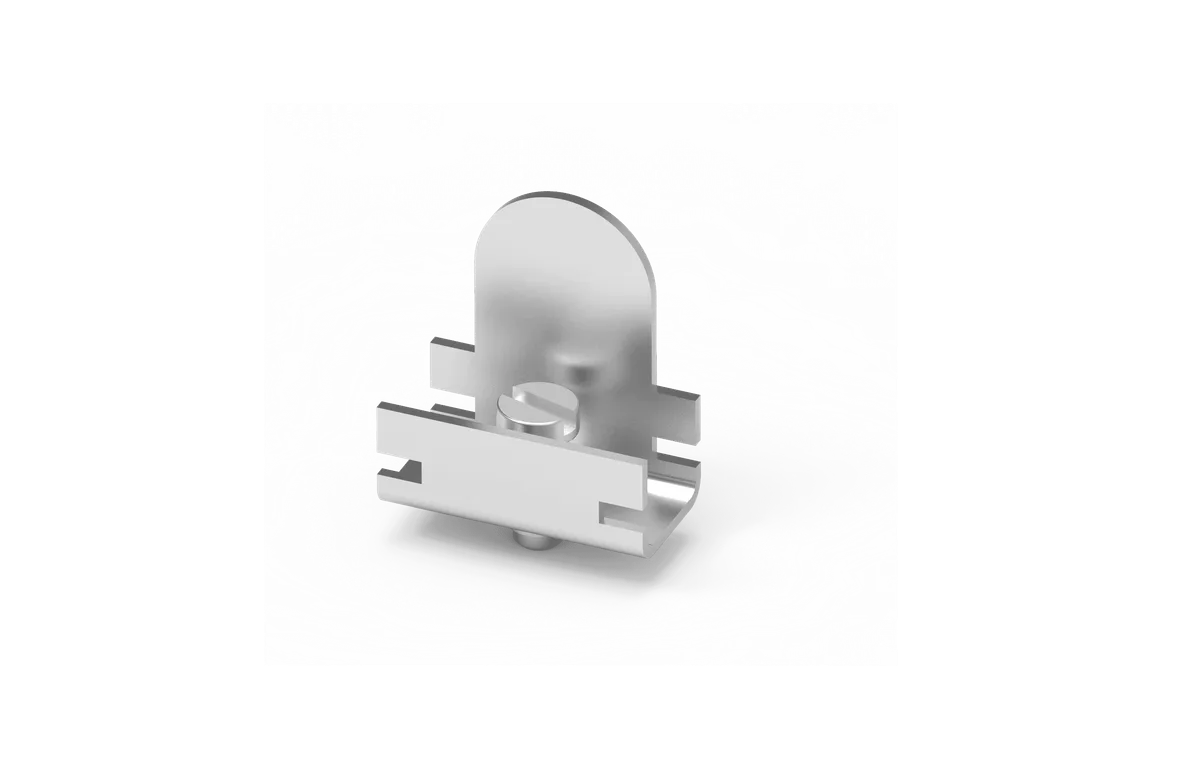

The CA502 End Clamp is a compact and durable terminal block accessory designed to secure terminal block assemblies firmly on DIN rails in industrial and commercial electrical installations. It plays an essential role in maintaining the stability and alignment of terminal blocks inside control panels, switchgear systems, distribution boards, and electrical enclosures. End clamps are critical components in any terminal block assembly because they prevent the movement of mounted terminal blocks during wiring, operation, and vibration-prone applications.

In professional electrical panel installations, terminal blocks are mounted side by side on DIN rails to create organized wiring systems. Without a proper end clamp, these terminal blocks may shift, loosen, or become unstable over time due to vibration, maintenance activity, or wire pressure. The CA502 DIN Rail End Clamp solves this problem by locking the terminal block assembly securely in place and ensuring reliable long-term panel stability.

The CA502 is specially designed for DIN rail mounting applications and is suitable for use in industrial control panels, switchgear assemblies, automation systems, power distribution panels, machine control wiring, and OEM panel building applications. Its compact size and robust construction make it a dependable accessory for electrical installations where secure mounting and organized panel layout are important.

One of the key functions of the CA502 End Clamp is to hold terminal block assemblies firmly on the DIN rail, preventing unwanted movement during electrical operation. In industrial environments where machinery vibration and continuous operation are common, terminal block shifting can affect wiring reliability and electrical safety. The CA502 provides strong mechanical support to maintain proper terminal block positioning and improve the overall stability of the panel assembly.

The compact body of the CA502 makes it ideal for modern electrical panels where space optimization is important. Its small design allows it to fit neatly at the ends of terminal block assemblies without occupying unnecessary panel space. This helps electricians and panel builders maintain organized installations while maximizing the available wiring area.

The CA502 is manufactured using durable steel construction with protective finishing, providing excellent mechanical strength, corrosion resistance, and long-term reliability. The strong metal body ensures that the end clamp can withstand industrial working conditions, mechanical pressure, and continuous use without deformation or performance issues.

Its secure clamping design allows easy installation on standard DIN rail systems and provides a firm locking mechanism for terminal block assemblies. Once installed, the CA502 helps prevent sliding, movement, and misalignment of terminal blocks, improving overall wiring reliability and panel safety.

This end clamp is widely used in industrial electrical applications because it improves terminal block assembly strength and creates a more professional panel installation. It also simplifies maintenance by keeping the terminal block arrangement fixed and organized during inspection or servicing.

The CA502 End Clamp is suitable for various electrical and industrial applications, including:

• Terminal block assemblies
• Industrial control panels
• Distribution boards
• Switchgear systems
• Automation control panels
• Machine wiring panels
• Power control cabinets
• OEM electrical panel building
• DIN rail mounting applications
• Commercial electrical installations

Its compact design, strong construction, secure DIN rail fitment, and reliable terminal block locking function make it an essential accessory for professional electrical panel installations.
