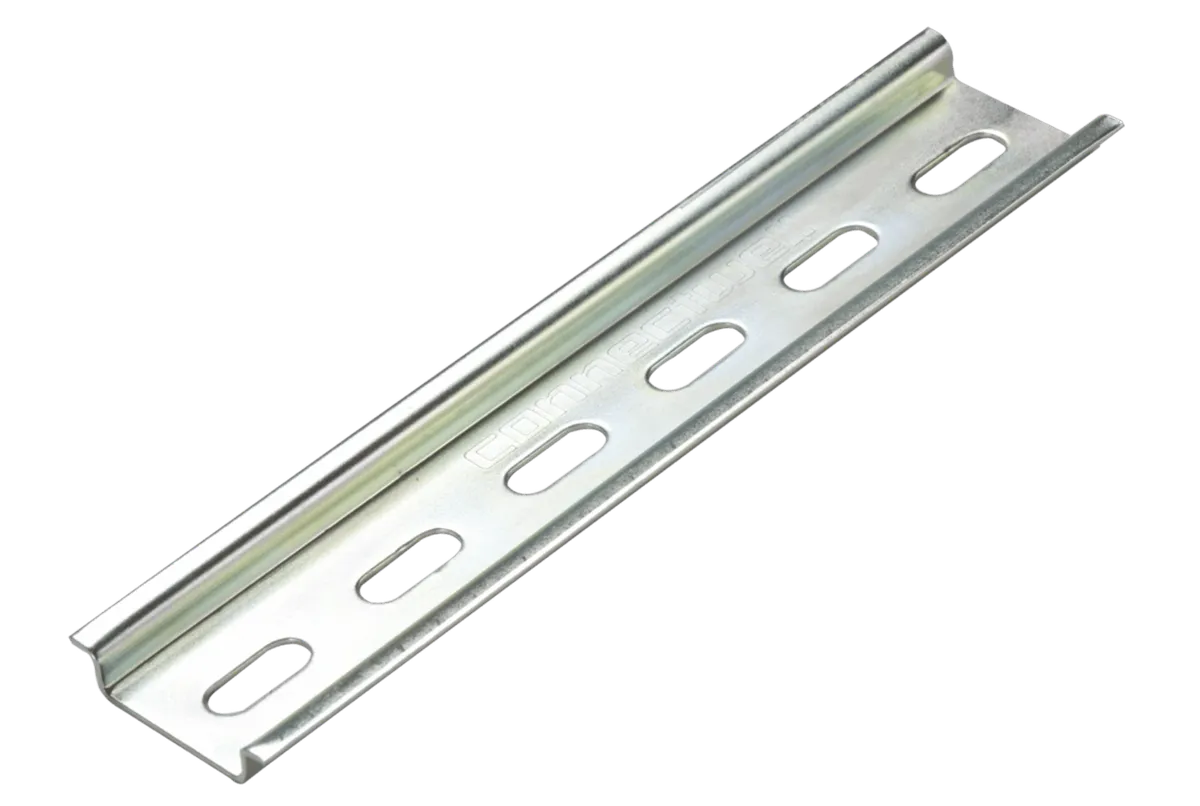

The CA701-2M-S is a high-quality DIN 35 slotted mounting rail designed for industrial electrical panels, PLC systems, switchgear assemblies, automation cabinets, and power distribution applications. Engineered for strong mechanical support and reliable mounting performance, this DIN rail provides a secure platform for installing terminal blocks, relays, MCBs, contactors, interface modules, and other DIN rail mounted industrial devices.
The CA701-2M-S rail is manufactured using premium-quality zinc plated steel with chromate passivation, providing excellent resistance against corrosion, rust, and environmental exposure. Its strong industrial-grade construction ensures long-lasting durability even under demanding industrial conditions involving vibration, heat, and continuous operation.
The rail follows the DIN EN 50 022 standard, making it compatible with a wide range of industrial electrical components used in modern automation and electrical systems.
One of the key advantages of the CA701-2M-S is its slotted structure, which simplifies mounting and alignment during panel assembly. The slots allow easy fixing using screws and improve installation flexibility for electrical panel builders and automation engineers.
Its slotted design also helps reduce installation time and improves airflow inside control cabinets while maintaining strong mechanical support for mounted electrical devices.
The CA701-2M-S is ideal for mounting:
The DIN rail features a standard 35 mm width and 7.5 mm depth profile, ensuring compatibility with globally accepted DIN rail mounted electrical components.
Its 2-meter rail length makes it suitable for large industrial control cabinets and extensive wiring systems requiring long continuous mounting arrangements.
The CA701-2M-S is widely used in:
The strong zinc plated steel body provides excellent load-bearing capability, enabling stable mounting of multiple heavy industrial components without deformation or vibration-related issues.
According to industrial DIN standards, steel DIN rails may also serve as grounding bus bars (PE function) when properly installed inside electrical systems.
The CA701-2M-S rail enables organized panel layouts and simplifies future expansion or maintenance of electrical systems. Its standardized dimensions help panel builders maintain professional and efficient industrial wiring infrastructure.
The rail can be easily installed onto panel surfaces using screws, clamps, or mounting brackets. Its rugged industrial construction ensures dependable long-term performance for industrial electrical installations requiring reliable mechanical support.
The CA701-2M-S is an ideal solution for electricians, automation engineers, switchgear manufacturers, panel builders, and industrial system integrators looking for durable and reliable DIN mounting infrastructure for modern electrical systems.
| Parameter | Specification |
|---|---|
| Model Number | CA701-2M-S |
| Product Type | DIN 35 Mounting Rail |
| Rail Type | Slotted |
| DIN Standard | EN 50 022 |
| Rail Width | 35 mm |
| Rail Depth | 7.5 mm |
| Thickness | 1 mm |
| Length | 2000 mm (2 Meter) |
| Material | Zinc Plated Steel |
| Surface Finish | Chromate Passivated |
| Corrosion Resistance | Yes |
| Mounting Application | DIN Rail Mounted Devices |
| Compatible Devices | Terminal Blocks, PLCs, Relays, MCBs |
| Installation Type | Panel Mount |
| Mechanical Strength | Heavy Duty Industrial Grade |
| Suitable For | Industrial Electrical Panels |
| Country of Origin | India |
Heavy-duty zinc plated steel ensures long-lasting industrial durability.
Slots simplify mounting, alignment, and panel assembly operations.
Chromate passivated surface protects against rust and environmental damage.
Compatible with most DIN rail mounted industrial electrical devices.
Provides vibration-resistant support for industrial electrical components.
Suitable for extensive industrial wiring and large control panel systems.
