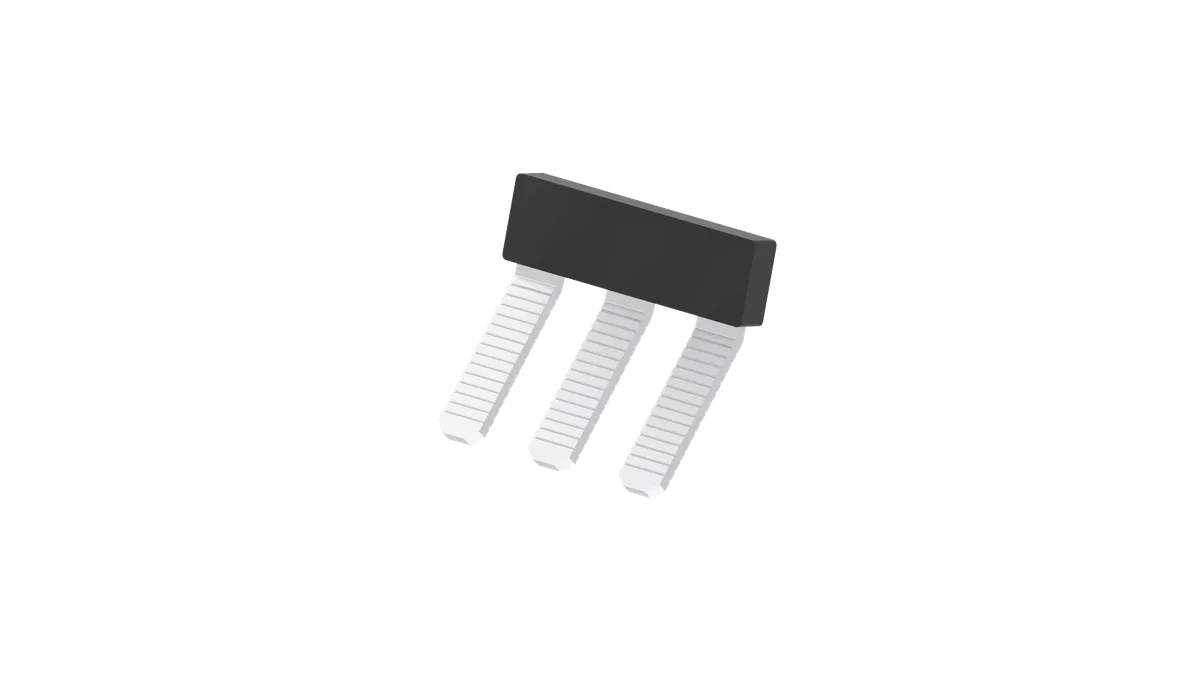

The CA716/3 Plug-In Bridging Connector is a precision-engineered industrial terminal accessory specially developed for secure three-point electrical linking, organized signal distribution, and efficient terminal block interconnection in modern automation and control systems. It is widely used in industrial applications where fast electrical bridging, compact wiring arrangements, and reliable conductor distribution are required for professional panel building.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CA716/3 is designed for DIN rail terminal block assemblies and provides a dependable plug-in connection method for electrically linking three adjacent terminal points quickly and safely. Its compact bridging structure eliminates the need for manual jumper wiring, helping electricians and automation engineers reduce wiring complexity while improving installation speed and overall control panel organization.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
One of the key advantages of the CA716/3 Plug-In Bridging Connector is its ability to maintain stable electrical continuity across multiple terminals with minimal resistance. The precision connection system ensures efficient current transfer and dependable signal distribution within industrial electrical systems, making it suitable for automation panels, PLC systems, and industrial distribution applications.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The bridging connector is manufactured using premium-grade copper alloy conductive components combined with high-strength flame-retardant insulation material. This industrial-quality construction provides excellent electrical conductivity, superior mechanical durability, low heat generation, corrosion resistance, and long operational life under continuous industrial usage.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CA716/3 is specially designed with a professional horizontal bridging arrangement that supports clean cable routing and organized terminal layouts inside industrial control cabinets. The horizontal interconnection structure improves installation accessibility and simplifies maintenance procedures while helping maintain neat and professional panel construction standards.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Its reliable plug-in locking mechanism allows quick installation into compatible terminal blocks while ensuring secure mechanical retention during industrial operation. The strong connection stability minimizes accidental loosening caused by vibration, machine movement, or heavy-duty operational conditions.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The compact profile of the CA716/3 helps maximize DIN rail space utilization and supports organized high-density terminal configurations in modern industrial automation systems. Its space-saving design makes it highly suitable for compact control panels and advanced industrial electrical installations.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CA716/3 Plug-In Bridging Connector is commonly used in manufacturing industries, industrial automation systems, switchgear assemblies, instrumentation systems, process control panels, HVAC applications, renewable energy systems, machine control cabinets, and industrial monitoring systems where reliable multi-terminal electrical distribution is required.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The maintenance-friendly structure of the CA716/3 allows engineers and technicians to perform quick inspections, troubleshooting, and wiring modifications without disturbing nearby connections. Its organized bridging configuration improves maintenance efficiency and reduces industrial downtime.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The corrosion-resistant industrial materials and robust mechanical construction enable the CA716/3 to perform reliably under harsh environmental conditions including vibration, heat, humidity, dust, and continuous industrial electrical operation.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
◆ Designed for Professional DIN Rail Terminal Bridging
◆ Reliable Three-Point Electrical Interconnection
◆ Compact Plug-In Industrial Bridging Solution
◆ High Conductivity Copper Alloy Connection Path
◆ Flame Retardant Industrial Insulation Material
◆ Professional Horizontal Bridging Layout
◆ Strong Mechanical Connection Stability
◆ Low Resistance Electrical Performance
◆ Space Saving High-Density Wiring Design
◆ Corrosion Resistant Industrial Construction
◆ Fast and Tool-Free Installation System
◆ Long Service Life in Industrial Applications
◆ Stable Performance in Vibration Conditions
◆ Supports Organized Electrical Panel Wiring
◆ Ideal for Industrial Automation Systems
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
| Specification | Details |
|---|---|
| Product Model | CA716/3 |
| Product Type | Plug-In Bridging Connector |
| Mounting Compatibility | DIN Rail Terminal Blocks |
| Bridging Type | Horizontal Plug-In Bridge |
| Number of Bridging Points | 3 Pole |
| Conductive Material | High Conductivity Copper Alloy |
| Insulation Material | Flame Retardant Thermoplastic |
| Electrical Resistance | Low |
| Mechanical Stability | High |
| Corrosion Resistance | Yes |
| Installation Method | Plug-In Locking System |
| Operating Environment | Industrial Applications |
| Maintenance Accessibility | Easy |
| Design Structure | Compact Industrial Design |
| Main Application | Multi-Terminal Electrical Bridging |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Provides secure electrical linking between three adjacent terminal points.
Supports organized panel wiring and clean cable management systems.
Industrial-grade materials ensure long-term reliable operation.
Ideal for high-density terminal block installations and compact control panels.
Plug-in system reduces installation time and improves assembly efficiency.
High conductivity materials provide stable current transfer with low resistance.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✔ PLC Automation Panels
✔ Industrial Control Cabinets
✔ Switchgear Assemblies
✔ Instrumentation Systems
✔ Process Automation Panels
✔ Electrical Distribution Systems
✔ HVAC Control Applications
✔ Renewable Energy Systems
✔ Machine Automation Panels
✔ Industrial Monitoring Systems
