4-Pole Insulated External Shorting Link for 5mm Wide Terminal Block – CA717/4

Product Description

SB Smart CA717/4 is a high-performance 4 Pole External Comb Type Shorting Link (Jumper) designed for professional electrical panel wiring, terminal block cross-connection, and industrial control applications. This premium-quality shorting link is specially engineered to create a reliable electrical bridge between adjacent terminal blocks, helping electricians and panel builders reduce wiring complexity while improving installation efficiency. It is an essential accessory for modern electrical systems where organized common potential distribution is required for safe and efficient circuit management.

The CA717/4 shorting link is designed to provide quick and secure cross-connection between four adjacent terminal blocks, eliminating the need for multiple individual wiring connections. In industrial panels, switchgear assemblies, PLC systems, automation panels, and machine control circuits, commoning multiple terminals manually can consume time and increase wiring complexity. The SB Smart CA717/4 solves this challenge by offering a compact and efficient jumper solution that simplifies wiring while maintaining reliability and electrical safety. This improves panel aesthetics, reduces labor cost, and ensures professional wiring standards in electrical installations.

Manufactured using high-conductivity tin plated brass/copper, the CA717/4 ensures excellent electrical conductivity and low resistance performance. The conductive material is designed to maintain stable current flow while offering superior corrosion resistance and long-term durability, even in demanding industrial environments. Tin plating protects the conductive surface from oxidation and environmental wear, helping maintain dependable electrical contact throughout the product’s service life. This makes the jumper ideal for industrial applications where reliability and long operational performance are critical requirements.

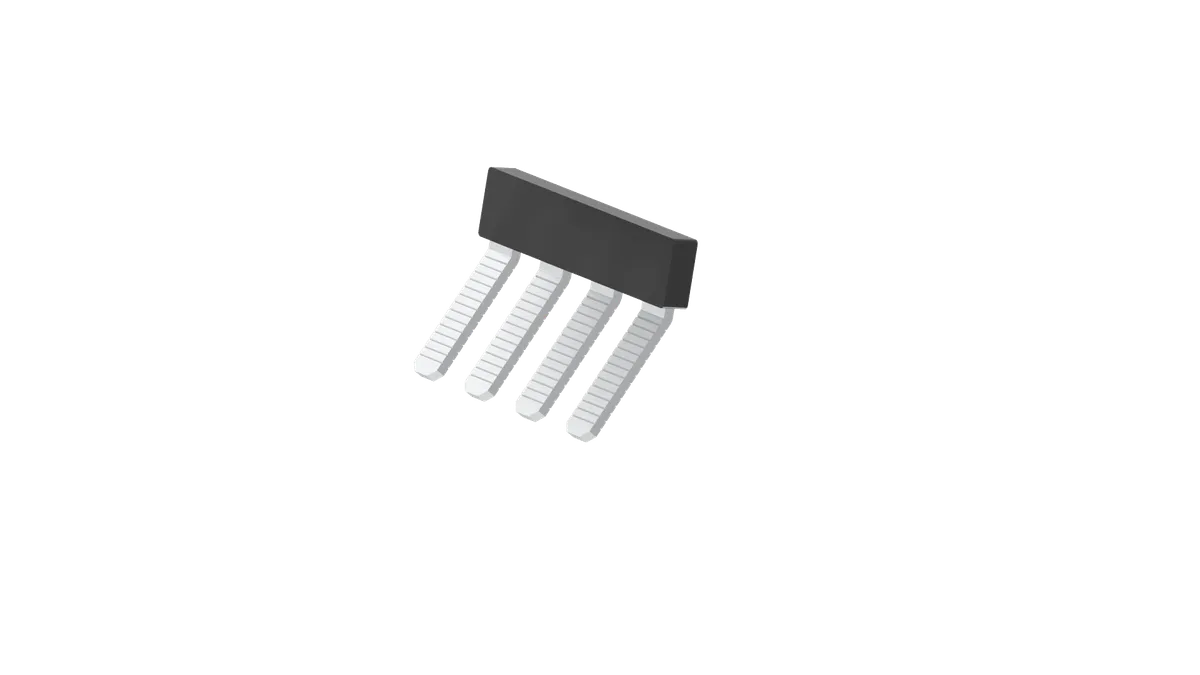

The insulated black body design of the SB Smart CA717/4 enhances safety during installation and operation. The insulated structure helps reduce the risk of accidental contact, improves user protection, and supports safer handling in crowded electrical panels. This design also contributes to organized panel wiring by keeping connections neat and compact, reducing the risk of loose wires and installation errors. The insulated external comb design makes the jumper suitable for professional electrical panel builders who require safety, efficiency, and reliability in one accessory.

SB Smart CA717/4 is rated for 24A current carrying capacity, making it suitable for a wide range of industrial and commercial electrical applications. Its 4 Pole configuration allows simultaneous connection across four adjacent terminals, enabling faster commoning in terminal block assemblies. The jumper is designed for 5 mm wide terminal blocks and is commonly used where compact terminal spacing and organized cross-connection are necessary. With a recommended tightening torque of 0.4 Nm, the jumper ensures secure mechanical and electrical contact when installed properly. Proper torque application helps achieve reliable conductivity and long-term performance.

One of the major advantages of the SB Smart CA717/4 is its ability to reduce panel wiring time significantly. Instead of using separate wires to create common potential distribution between multiple terminals, a single comb type jumper can establish organized shorting across four poles instantly. This not only improves installation speed but also reduces wiring errors, minimizes clutter, and simplifies troubleshooting during maintenance. Industrial electricians and control panel manufacturers prefer comb type shorting links because they improve productivity while maintaining high-quality electrical standards.

The SB Smart CA717/4 is widely used in industrial automation systems, PLC panels, switchgear assemblies, machine control panels, OEM electrical panels, electrical distribution boards, terminal block assemblies, and process control applications. Wherever multiple terminals require common electrical potential, this jumper provides a practical and efficient connection solution. Its compact size, durable construction, and easy installation make it a preferred accessory for electrical professionals working in industrial and commercial environments.

With its combination of high conductivity, insulated safety design, durable construction, corrosion resistance, easy installation, and professional wiring efficiency, SB Smart CA717/4 is a reliable terminal block jumper for modern electrical systems. It helps improve wiring organization, reduce installation time, enhance safety, and deliver long-term electrical performance in industrial applications.
