Product Description

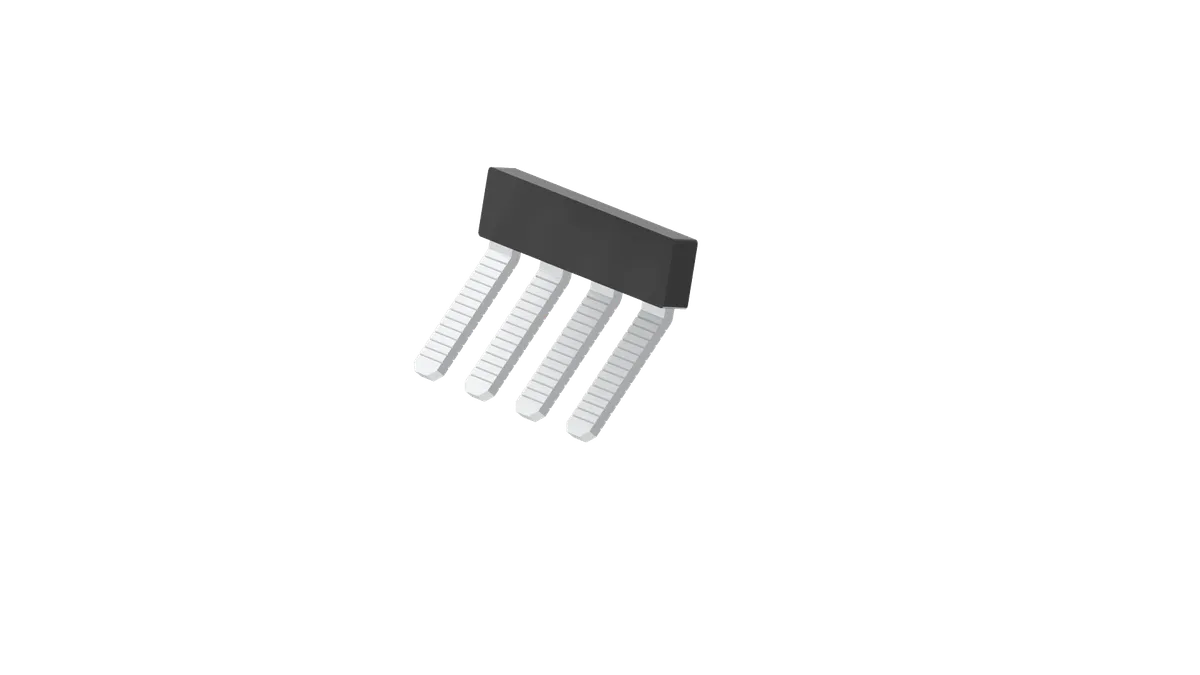

SB Smart CA718/4 is a high-performance 4 Pole External Comb Type Shorting Link designed to create safe and efficient common electrical connections between adjacent terminal blocks in industrial electrical panels, automation systems, PLC panels, switchgear assemblies, and machine control circuits. This professional-grade jumper accessory is specially developed to simplify panel wiring by reducing the need for individual jumper wires and creating a clean, organized, and secure commoning solution in terminal block assemblies.

The CA718/4 shorting link is engineered with a 4 pole comb configuration, allowing electrical cross-connection across four adjacent terminals in one compact unit. In electrical control panels, creating common potential distribution using separate wires can increase wiring complexity and consume installation time. The SB Smart CA718/4 solves this problem by providing a ready-made jumper solution that simplifies terminal commoning while improving wiring neatness and reducing labor effort during installation.

This external comb type shorting link is ideal for applications where multiple circuits require a shared electrical connection. It helps electricians and panel builders maintain professional wiring standards while reducing wiring clutter inside control panels and switchgear systems. By replacing multiple jumper wires with one compact shorting link, the CA718/4 improves panel aesthetics, enhances maintenance convenience, and supports organized conductor management in industrial electrical installations.

Manufactured using high conductivity tin plated copper alloy conductive material, the SB Smart CA718/4 provides excellent electrical conductivity and dependable long-term performance. The conductive elements are specially engineered to ensure low resistance current transfer and stable electrical continuity across connected terminals. Tin plating improves corrosion resistance and protects the conductive surface against oxidation, helping maintain reliable performance even in industrial environments exposed to dust, humidity, and operating stress.

The SB Smart CA718/4 is equipped with an insulated black outer body, which improves electrical safety and protects users from accidental contact during installation and maintenance. The insulated design also helps maintain a neat and compact jumper arrangement while ensuring secure electrical shorting across adjacent terminals. This makes it a practical solution for electrical installations where safe conductor commoning and panel organization are critical.

Designed for 57A current carrying capacity, the SB Smart CA718/4 is suitable for medium to high current industrial applications where multiple terminals need common electrical potential. It is specially developed for 10 mm terminal block systems, ensuring compatibility with industrial terminal block assemblies used in power distribution, control wiring, automation systems, and machine electrical panels.

The jumper is designed for easy installation and removal, helping electricians save time during panel assembly, maintenance, and future modifications. It offers a recommended tightening torque of 0.8 Nm, ensuring secure mechanical and electrical contact when properly installed. This helps reduce the chances of loose connections and improves long-term reliability in demanding industrial operating conditions.

One of the biggest advantages of the SB Smart CA718/4 is its ability to improve wiring efficiency and reduce panel installation time. Instead of manually connecting multiple jumper wires, electricians can install one comb type jumper for instant cross-connection. This improves installation speed, reduces wiring errors, simplifies troubleshooting, and creates cleaner electrical panel layouts.

SB Smart CA718/4 is widely used in industrial control panels, PLC systems, switchgear assemblies, automation equipment, OEM electrical systems, machine control circuits, terminal block assemblies, electrical distribution boards, and industrial electrical installations where safe and organized terminal cross-connection is required.

With its combination of 4 pole commoning design, insulated safety body, high conductivity construction, corrosion resistance, easy installation, and industrial-grade durability, SB Smart CA718/4 is an ideal shorting link for improving panel wiring efficiency and ensuring dependable electrical performance in professional electrical systems.
