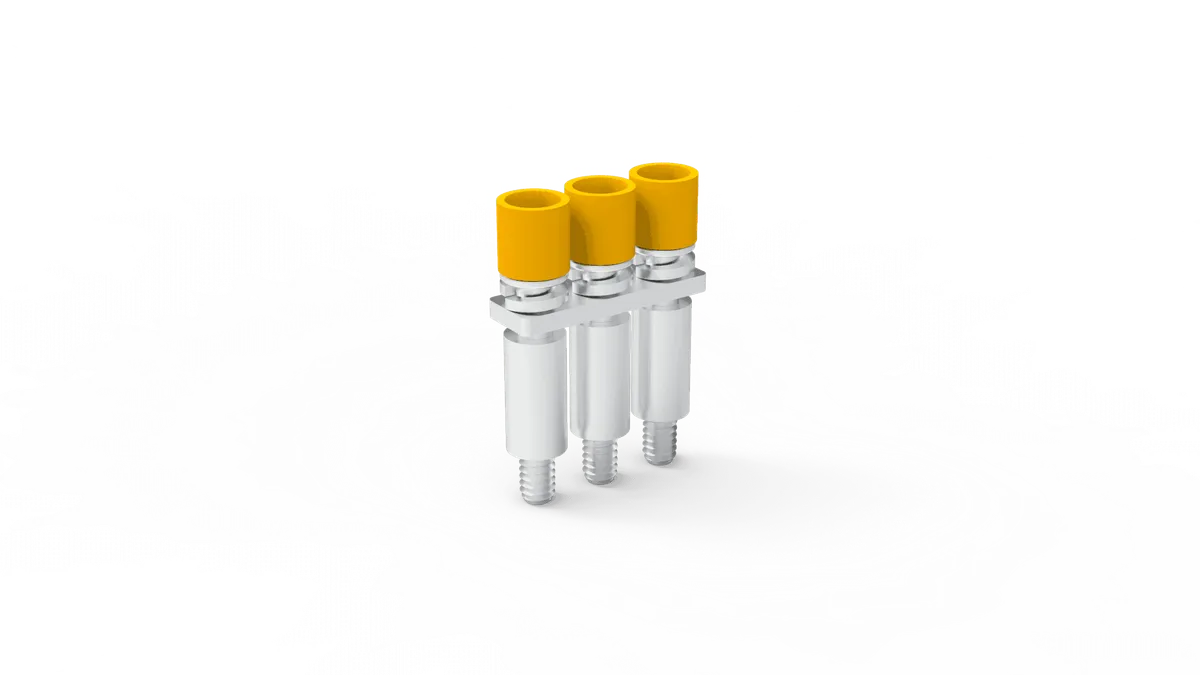

The CA745/3 Insulated Pre-Assembled Shorting Link is a high-performance terminal block accessory designed for safe and efficient cross-connection of terminal block circuits in industrial and commercial electrical applications. It is specially engineered to create a reliable electrical bridge between adjacent terminal blocks, allowing common potential distribution across multiple connection points. This insulated shorting link helps simplify wiring, reduce installation time, and improve circuit organization inside electrical panels, switchgear systems, control panels, and automation systems.
In electrical panel installations, there are many situations where multiple terminal blocks need to share a common electrical potential. Traditional jumper wiring methods often create cluttered panel layouts, consume additional wiring space, and increase installation time. The CA745/3 Insulated Pre-Assembled Shorting Link solves this problem by providing a ready-to-install cross connection accessory that bridges 3 terminal block poles safely and efficiently. This improves panel wiring organization while reducing manual wiring work for electricians and panel builders.
One of the key features of the CA745/3 Shorting Link is its 3-way shorting capability, allowing adjacent terminal blocks to be electrically connected with a common potential. This creates an efficient distribution path for circuits where multiple terminals need to carry the same electrical supply. Instead of using multiple jumper wires, this insulated shorting link provides a clean and professional electrical connection solution that improves wiring efficiency and panel appearance.
The CA745/3 is designed as a pre-assembled insulated shorting link, which means the current bar, shorting sleeves, and screws come pre-assembled and ready for immediate installation. This saves installation time and eliminates the need for manual jumper assembly. The ready-to-use construction improves convenience and ensures reliable cross connection performance in industrial electrical systems.
A major advantage of the CA745/3 Insulated Shorting Link is its shock-protected insulated design. Unlike exposed metal jumper links, this accessory is insulated to provide added electrical safety during installation, operation, and maintenance. The insulated body helps reduce accidental contact with live conductive parts and improves overall safety inside electrical panels and distribution systems. This makes it a safer and more professional solution for power distribution applications.
The CA745/3 supports a rated current of 101A, making it suitable for industrial power distribution and heavy-duty electrical applications where multiple terminals require reliable common potential bridging. Its strong current carrying capacity ensures safe electrical flow and dependable circuit continuity in demanding electrical systems. This makes it suitable for control panels, switchgear systems, automation panels, and industrial distribution boards.
The body of the CA745/3 is made using high-quality insulated engineering material, providing strong insulation, heat resistance, impact strength, and long-term durability. This durable insulated construction protects conductive components while maintaining safe operation under industrial working conditions. It also improves the overall safety and reliability of the electrical panel assembly.
Its compact design allows easy fitting into terminal block assemblies without occupying unnecessary panel space. Once installed, the CA745/3 provides a neat and organized cross connection system that improves panel layout and reduces unnecessary wiring congestion. This creates cleaner electrical installations and makes future maintenance easier.
The CA745/3 Insulated Pre-Assembled Shorting Link is commonly used in:
| Specification | Details |
|---|---|
| Model Number | CA745/3 |
| Product Type | Insulated Pre-Assembled Shorting Link |
| Shorting Type | 3 Way Shorting |
| Rated Current | 101A |
| Torque | 0.8 Nm |
| Construction | Pre-Assembled Current Bar, Sleeves & Screws |
| Insulation Type | Shock Protected Insulated Design |
| Material | Insulated Engineering Plastic + Conductive Bar |
| Installation Type | Manual Fitment |
| Application | Terminal Block Cross Connection |
| Suitable For | 25 sq.mm Feed Through Terminal Blocks |
| Applications | Control Panels, Switchgear, Distribution Boards |
✅ Ready-to-install pre-assembled shorting link
✅ Efficient 3-way cross connection capability
✅ High 101A current carrying capacity
✅ Shock-protected insulated design
✅ Reduces panel wiring complexity
✅ Faster installation compared to jumper wiring
✅ Improves panel wiring organization
✅ Reliable common potential distribution
✅ Compact space-saving design
✅ Safe and professional electrical connection solution
✅ Suitable for industrial and commercial applications
✅ Long-lasting durable construction
