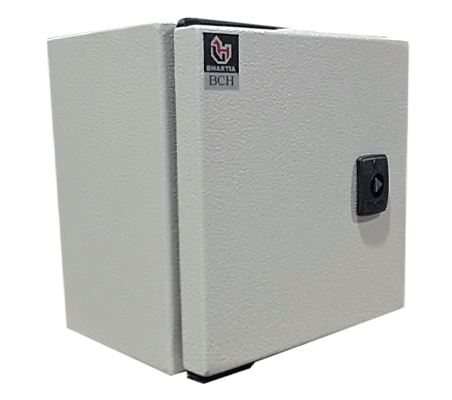

The Enclosure Systems – BIL - 50020 is a compact and highly reliable industrial electrical enclosure designed to provide superior protection for electrical equipment, automation devices, control systems, and power distribution components. Manufactured from premium-grade CRCA steel, the enclosure offers excellent strength, durability, and long-term performance in demanding industrial environments.
Modern industries require electrical installations that can withstand dust, moisture, vibration, accidental impact, and environmental exposure. The BIL - 50020 enclosure system is specially designed to protect sensitive electrical equipment while maintaining proper cable management and easy accessibility for installation and maintenance.
Its compact dimensions make it ideal for applications where installation space is limited while still providing adequate internal space for electrical components. The enclosure combines safety, durability, and functionality, making it suitable for industrial, commercial, and automation applications.
✔ Premium CRCA Steel Construction
✔ IP55 Dust and Water Protection
✔ IK10 Mechanical Impact Resistance
✔ Powder-Coated Corrosion-Resistant Finish
✔ 180° Door Opening
✔ PU Foam Gasket Sealing
✔ Secure Cam Lock Arrangement
✔ Compact Industrial Design
✔ Easy Installation & Maintenance
✔ Long Service Life
The BIL - 50020 enclosure is manufactured using high-quality CRCA sheet steel that provides excellent structural strength and long-lasting durability. The robust enclosure body protects internal components from external environmental conditions and industrial damage.
The enclosure effectively safeguards equipment against:
Its rugged construction ensures reliable performance even in harsh industrial environments.
The enclosure body, door, and gland plate are powder coated with tricationic zinc phosphating treatment, which enhances corrosion resistance and improves the operational life of the enclosure.
✔ Excellent rust protection
✔ Better moisture resistance
✔ Improved environmental durability
✔ Professional industrial appearance
✔ Reduced maintenance requirements
The enclosure is finished in RAL 7035 Grey, providing a clean and professional look suitable for industrial installations.
The BIL - 50020 offers a well-organized internal layout that supports efficient installation of electrical and automation equipment.
✔ PLC Systems
✔ Control Panels
✔ Distribution Boards
✔ Circuit Breakers
✔ Relays & Contactors
✔ Terminal Blocks
✔ Automation Equipment
✔ Industrial Control Devices
The mounting plate allows easy installation of components and supports organized cable routing for better panel management.
The enclosure is specifically engineered to improve operational safety and equipment reliability.
✔ Prevents dust accumulation
✔ Reduces water exposure
✔ Improves equipment safety
✔ Minimizes equipment failure
✔ Protects against accidental impact
✔ Enhances electrical reliability
✔ Supports continuous operation
Its IP55 protection rating provides excellent resistance against dust ingress and water splashes, making it suitable for various industrial environments.
The enclosure is supplied with:
The 180° door opening provides convenient access during installation, servicing, and maintenance operations, helping technicians perform tasks efficiently.
The BIL - 50020 enclosure system is widely used in:
| Specification | Details |
|---|---|
| Model | BIL - 50020 |
| Enclosure Size | 250 × 300 × 150 mm |
| Mounting Plate Size | 190 × 276 mm |
| Material | CRCA Steel |
| Body Thickness | 1.2 mm CRCA |
| Door Thickness | 1.2 mm CRCA |
| Gland Plate Thickness | 2.0 mm CRCA |
| Mounting Plate | 2.0 mm GPSP |
| Surface Finish | Powder Coated |
| Color | RAL 7035 Grey |
| Protection Rating | IP55 |
| Impact Resistance | IK10 |
| Door Type | Single Door |
| Number of Doors | 1 |
| Number of Locks | 1 |
| Door Opening | 180° |
| Lock Type | Triangular Cam Lock |
| Weight | Approx. 5 kg |
