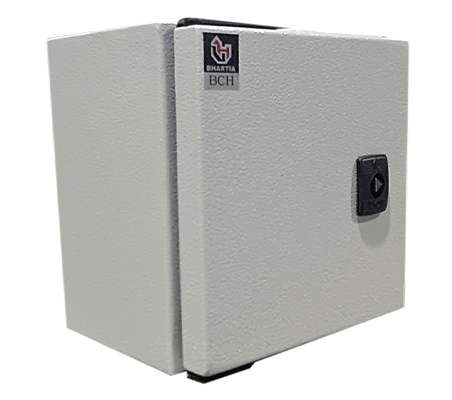

The Enclosure Systems – BIL - 50030 is a compact, high-performance industrial enclosure specially designed for protecting electrical and electronic equipment in industrial environments. Manufactured using premium-quality CRCA steel, this enclosure provides superior protection against dust, moisture, mechanical impact, and environmental exposure.
Designed for modern electrical installations, the BIL - 50030 offers a safe and reliable housing solution for control panels, PLC systems, terminal blocks, automation equipment, relays, and other electrical components. Its compact design makes it ideal for applications where installation space is limited while maintaining excellent protection and accessibility.
The enclosure combines durability, safety, and professional design, making it suitable for industrial automation, machine control systems, electrical distribution, and commercial electrical applications.
✔ Premium CRCA steel construction
✔ IP55 dust and water protection
✔ IK10 mechanical impact resistance
✔ Powder-coated corrosion-resistant finish
✔ Compact and space-saving design
✔ Secure cam locking system
✔ PU foam gasket sealing
✔ Easy installation and maintenance
✔ Organized cable management
✔ Long service life
The BIL - 50030 enclosure is manufactured using high-quality CRCA sheet steel to provide excellent structural strength and durability. The enclosure body and door are fabricated from 1.2 mm CRCA steel, while the gland plate and mounting plate are manufactured using 2.0 mm steel for additional rigidity and support.
Its robust construction protects electrical components against:
The rugged design ensures dependable operation even in demanding industrial environments.
The enclosure body, door, and gland plate are powder-coated with tricationic zinc phosphating treatment that improves corrosion resistance and extends the product life.
✔ Better rust protection
✔ Improved environmental resistance
✔ Long-lasting finish
✔ Professional industrial appearance
✔ Reduced maintenance requirements
The enclosure is supplied in RAL 7035 Grey, providing a clean and professional industrial look.
The BIL - 50030 features a well-organized internal structure that supports efficient mounting of electrical equipment and proper cable routing.
✔ PLC Systems
✔ Electrical Control Panels
✔ Relays and Contactors
✔ Terminal Blocks
✔ Distribution Systems
✔ Automation Equipment
✔ Monitoring Devices
✔ Machine Control Components
Its spacious design allows technicians to install and maintain electrical equipment efficiently.
The enclosure is specifically designed to protect sensitive electrical equipment from external environmental factors.
✔ Prevents dust accumulation
✔ Protects against water splashes
✔ Reduces equipment failure risks
✔ Improves electrical safety
✔ Enhances equipment life
✔ Supports continuous operation
✔ Improves workplace safety
The IP55 protection rating makes the enclosure suitable for industrial applications requiring reliable environmental protection.
The hinged door opens up to 180°, providing easy access to the internal components during installation, servicing, and maintenance.
The enclosure includes:
These features help reduce maintenance time and simplify electrical panel assembly.
The BIL - 50030 enclosure system is widely used in:
| Specification | Details |
|---|---|
| Model | BIL - 50030 |
| Enclosure Size | 300 × 300 × 150 mm |
| Mounting Plate Size | 240 × 276 mm |
| Material | CRCA Steel |
| Body Thickness | 1.2 mm CRCA |
| Door Thickness | 1.2 mm CRCA |
| Gland Plate Thickness | 2.0 mm CRCA |
| Mounting Plate | 2.0 mm GPSP |
| Surface Finish | Powder Coated |
| Color | RAL 7035 Grey |
| Protection Rating | IP55 |
| Impact Resistance | IK10 |
| Door Type | Single Door |
| Number of Locks | 1 |
| Door Opening | 180° |
| Lock Type | Triangular Cam Lock |
| Weight | Approximately 5–6 kg |
