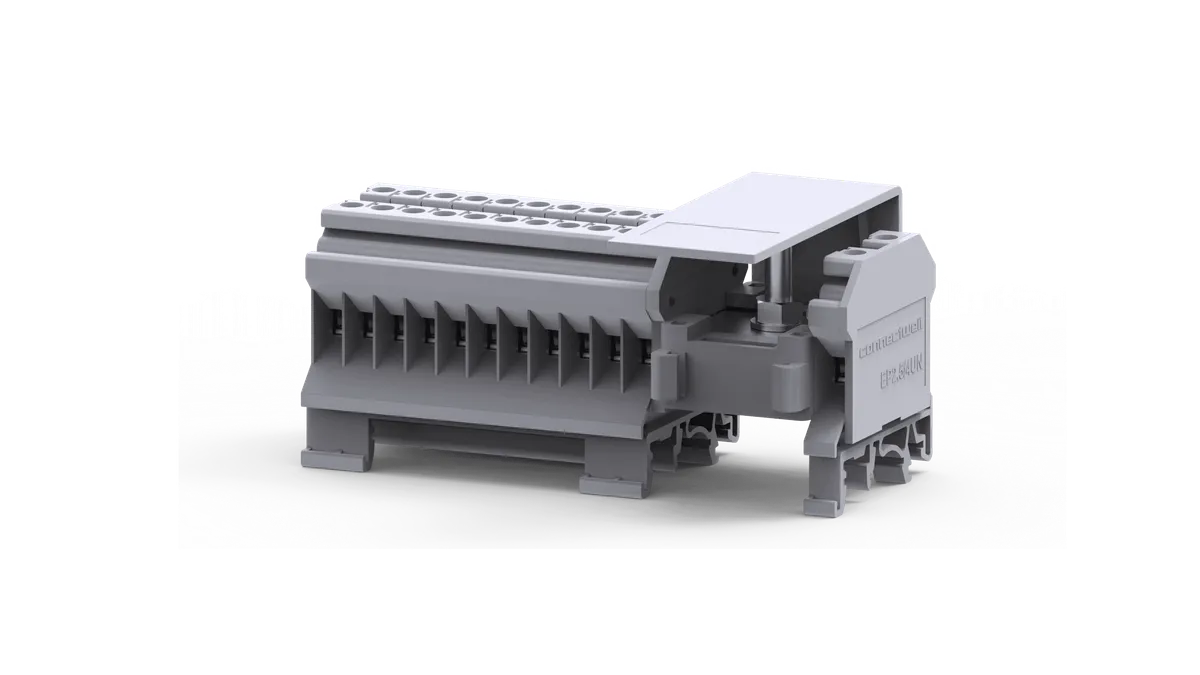

CDB4/10(1) Modular Distribution Terminal Block is a compact and high-performance electrical power distribution component specially designed for safe power input distribution, multi-circuit branching, and organized electrical panel wiring in industrial and commercial electrical systems. It is widely used in control panels, switchgear assemblies, PLC systems, automation cabinets, electrical distribution boards, machine wiring systems, and industrial electrical installations where one incoming power source needs to be safely distributed to multiple outgoing circuits in a compact and organized manner. The CDB4/10(1) features 1 input connection with 22 output connections of 4 sq.mm, making it ideal for high-density circuit distribution applications.
In modern industrial electrical systems, multiple outgoing circuits often require a centralized power distribution point. Using manual loop wiring or direct conductor interconnections can create wiring congestion, increase installation complexity, and reduce panel organization. The CDB4/10(1) is designed to solve these issues by providing a modular distribution block with bolt type input connection that allows safe power input and structured outgoing circuit distribution in one reliable electrical component. Its 22 output connections help simplify circuit branching in compact panel installations.
The CDB4/10(1) provides a secure conductor connection with a high-conductivity internal bus path, helping maintain stable electrical continuity while reducing wiring clutter inside panels. A protective shield safely covers the incoming connection, improving electrical safety and protecting the distribution point from accidental contact. Its compact modular construction improves panel space utilization and supports professional electrical wiring layouts.
Manufactured using industrial-grade polyamide housing, the CDB4/10(1) offers excellent electrical insulation, heat resistance, mechanical strength, and long industrial service life. Its rugged design supports reliable performance under vibration, heat, dust, and continuous industrial electrical operation, making it a dependable power distribution solution for professional electrical systems.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
In industrial electrical systems, one incoming power source often needs to supply:
✔ Multiple outgoing circuits
✔ Structured power distribution
✔ Organized circuit branching
✔ Safe current sharing
✔ Compact panel wiring
✔ Reliable electrical continuity
✔ Cleaner panel layouts
✔ Professional circuit organization
Without a modular distribution block, systems may face:
◆ Wiring congestion
◆ Multiple manual jumper wires
◆ Increased installation time
◆ Difficult maintenance access
◆ Reduced safety
◆ Untidy panel layouts
◆ Complex circuit distribution
The CDB4/10(1) solves these issues by providing a structured power distribution block with 22 outputs for organized electrical branching.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
◆ 1 input with 22 output distribution design
◆ Modular power distribution block
◆ Bolt type input connection
◆ Structured circuit branching solution
◆ High current carrying capacity
◆ Secure conductor clamping
◆ Compact DIN rail mounting design
◆ High conductive internal bus connection
◆ Protective shield on input terminal
◆ Durable polyamide housing
◆ Easy installation support
◆ Organized power distribution
◆ Heat-resistant body design
◆ Long industrial service life
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CDB4/10(1) works by receiving electrical power at the input terminal and distributing it across 22 internally connected output terminals.
During operation:
✔ Incoming cable is connected at input stud
✔ Internal conductive bus distributes power
✔ Output terminals receive common electrical supply
✔ Stable electrical continuity is maintained
✔ Organized circuit distribution is achieved
✔ Panel wiring becomes cleaner and structured
This improves power distribution efficiency in industrial electrical panels.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CDB4/10(1) improves industrial power distribution by providing a compact and structured electrical branching solution.
Its design helps:
✔ Simplify power distribution
✔ Reduce wiring clutter
✔ Improve panel organization
✔ Maintain stable electrical continuity
✔ Support safe current distribution
✔ Reduce installation time
✔ Improve maintenance access
✔ Support professional electrical layout
This makes it ideal for industrial power distribution applications.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CDB4/10(1) is manufactured using industrial-grade materials for dependable industrial electrical use.
Its construction provides:
✔ High-strength polyamide housing
✔ Heat-resistant body material
✔ High conductive internal bus path
✔ Corrosion-resistant conductive parts
✔ Secure terminal fitment
✔ Protective shield safety cover
✔ Rugged mechanical structure
✔ Long service life
Its rugged design supports stable performance under:
◆ Heat
◆ Dust
◆ Vibration
◆ Continuous industrial electrical operation
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CDB4/10(1) improves panel wiring organization by providing structured power distribution from one incoming source.
Its design supports:
✔ Cleaner electrical panel layouts
✔ Organized outgoing wiring
✔ Faster installation
✔ Better circuit distribution planning
✔ Easy troubleshooting access
✔ Reduced conductor clutter
✔ Professional panel finishing
✔ Improved maintenance convenience
This makes it highly suitable for industrial electricians, automation engineers, and panel builders.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
| Specification | Details |
|---|---|
| Product Model | CDB4/10(1) |
| Product Type | Modular Distribution Terminal Block |
| Terminal Function | Power Distribution & Circuit Branching |
| Terminal Color | Grey |
| Rated Voltage | 800V |
| Rated Current – Input Side | 64A |
| Rated Current – Output Side | 64A |
| Input Connection | 1 x 16 sq.mm |
| Output Connections | 22 x 4 sq.mm |
| Connection Type | Screw Clamp + Bolt Type Input |
| Wire Entry Type | Side Entry |
| Mounting Type | DIN 32 / DIN 35 / DIN 35-15 Rail |
| Housing Material | Industrial Grade Polyamide |
| Tightening Torque – Input Side | 2 Nm |
| Tightening Torque – Output Side | 0.5 Nm |
| Rated Surge Voltage | 8kV |
| Pollution Degree | 3 |
| Stud Size | M5 |
| Screw Size | M3 |
| Mechanical Strength | High |
| Heat Resistance | Yes |
| Corrosion Resistance | Yes |
| Vibration Stability | Yes |
| Electrical Conductivity | High Conductive Internal Bus Path |
| Mounting Stability | Secure Rail Fitment |
| Service Life | Long Industrial Use |
| Main Usage | Power Distribution & Circuit Branching |
| Panel Benefit | Organized Wiring & Reliable Electrical Distribution |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
► 22 Output Distribution Design
Supports multiple outgoing circuits from one input source.
► Reliable Power Distribution
Supports structured electrical branching in compact panels.
► Protective Input Shield
Improves electrical safety and prevents accidental contact.
► Stable Electrical Performance
Ensures reliable current flow and circuit continuity.
► Durable Industrial Construction
Built for long-term industrial use.
► Easy DIN Rail Installation
Supports quick and secure mounting.
► Professional Panel Wiring
Improves organized circuit distribution.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✔ PLC Panels
✔ Industrial Control Cabinets
✔ Switchgear Assemblies
✔ Power Distribution Panels
✔ Automation Systems
✔ Machine Wiring Systems
✔ Electrical Distribution Boards
✔ Process Automation Panels
✔ Relay Control Circuits
✔ Industrial Electrical Installations
