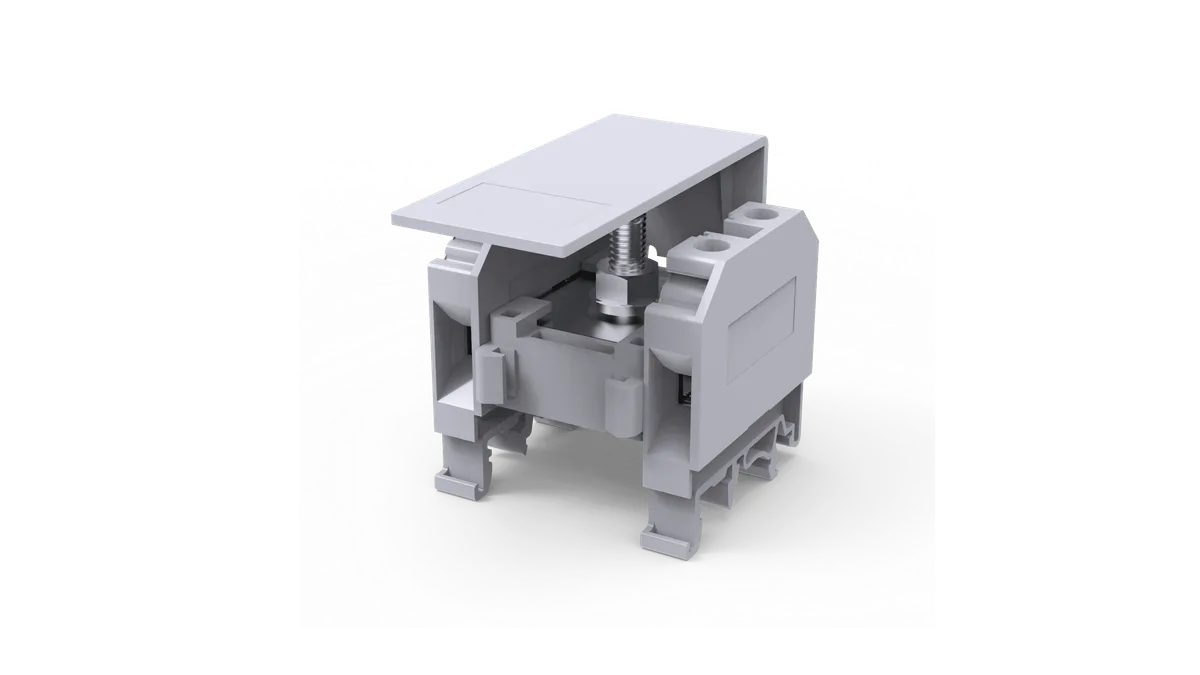

The CDB6/1R Modular Distribution Terminal Block is a compact and efficient electrical power distribution solution designed for industrial, commercial, and control panel applications where safe and organized power distribution is essential. This modular distribution block is specially developed to simplify wiring systems by allowing one incoming power connection to be distributed across multiple outgoing circuits in a secure and structured manner. Its compact design, strong electrical performance, and safe connection structure make it an ideal component for electrical panels, switchgear systems, automation panels, distribution boards, and machine control applications.
In modern electrical installations, power distribution must be handled safely and efficiently to reduce wiring complexity and improve system reliability. Traditional wiring methods often require multiple joints and cable branching, which can create cluttered panel layouts and increase maintenance difficulties. The CDB6/1R Distribution Terminal Block solves this problem by providing a centralized power distribution point with a modular construction that improves cable organization and simplifies installation.
One of the key features of the CDB6/1R is its bolt-type input connection design, which provides a secure central incoming power connection. This incoming supply is internally distributed to multiple output terminals, allowing efficient power transfer to outgoing circuits. The block is designed with 1 input and 4 output connections of 6 sq.mm, making it suitable for applications where multiple branch circuits need to be connected from a single power source. This helps electricians and panel builders reduce wiring congestion and create more organized electrical panels.
The CDB6/1R Modular Distribution Block offers strong electrical performance for industrial and commercial systems. It supports a rated voltage of 800V and a rated input current of 82A, making it suitable for demanding electrical distribution applications. The outgoing side is designed to handle 41A current, ensuring safe current distribution across connected circuits. This balanced power handling capability makes it ideal for control panels, switchgear systems, machine wiring, and industrial automation setups.
A major advantage of the CDB6/1R is its compact modular body design, which saves valuable panel space while providing efficient electrical distribution. Modern electrical panels often require multiple components to be installed in limited enclosure space. This compact distribution block helps optimize space utilization and creates a cleaner wiring layout without sacrificing performance or accessibility.
The housing of the CDB6/1R is manufactured using high-quality polyamide insulated material, known for its excellent insulation properties, heat resistance, impact strength, and long-term durability. Polyamide housing protects the conductive parts from external contact and provides dependable electrical insulation in industrial operating environments. This strong insulated body ensures reliable performance and improved product life in demanding electrical applications.
Another important safety feature of this modular distribution block is its protective shield design, which effectively covers the incoming connection point and helps reduce accidental contact with live conductive parts. This improves electrical safety during installation, maintenance, and operation. It also creates a more professional and safer panel layout in industrial applications.
The side-entry wire connection orientation makes installation easier by allowing convenient cable insertion and organized wire routing inside electrical panels. This feature helps reduce wiring complexity and improves overall cable management. The secure screw-operated connection mechanism ensures strong conductor fastening and reliable electrical contact, reducing the risk of loose wiring, overheating, or voltage drop during operation.
The CDB6/1R supports DIN 32, DIN 35, and DIN 35-15 rail mounting, making installation simple and compatible with standard industrial panel mounting systems. DIN rail mounting helps reduce installation time, improves component arrangement, and allows easy replacement or maintenance when panel modifications are required. This mounting flexibility makes it suitable for professional electrical panel building and industrial automation systems.
Electrical safety is a major requirement in power distribution systems, and the CDB6/1R is designed to deliver reliable protection. It offers a rated surge voltage of 8KV, helping protect electrical circuits from transient voltage spikes and disturbances. The pollution degree 3 rating further supports its use in industrial electrical environments where dust, humidity, or contaminants may be present. These features improve overall system reliability and safe operation.
The CDB6/1R is commonly used in:
Its compact design, safe bolt-type input connection, reliable power distribution capability, and durable insulated construction make it an excellent choice for professional electrical applications.
| Specification | Details |
|---|---|
| Model Number | CDB6/1R |
| Product Type | Modular Distribution Terminal Block |
| Rated Voltage | 800V |
| Rated Current (Input Side) | 82A |
| Rated Current (Output Side) | 41A |
| Input Connection | 1 x 25 sq.mm |
| Output Connections | 4 x 6 sq.mm |
| Conductor Range | 1.5 – 6 sq.mm |
| Housing Material | Polyamide |
| Color | Red |
| Mounting Type | DIN Rail Mounting |
| DIN Rail Compatibility | DIN 32 / DIN 35 / DIN 35-15 |
| Wire Entry Orientation | Side Entry |
| Screw Size | M3.5 |
| Stud Size | M6 |
| Input Tightening Torque | 3 Nm |
| Output Tightening Torque | 0.8 Nm |
| Rated Surge Voltage | 8KV |
| Pollution Degree | 3 |
| Length | 48 mm |
| Applications | Control Panels, Distribution Boards, Switchgear |
✅ Compact space-saving modular design
✅ Efficient 1 input to 4 output power distribution
✅ High 82A input current carrying capacity
✅ Supports 800V rated voltage
✅ Secure bolt-type input connection
✅ Protective shield for improved electrical safety
✅ Strong insulated polyamide housing
✅ Easy DIN rail mounting installation
✅ Side-entry wire connection for easy wiring
✅ Reduces panel wiring complexity
✅ Reliable performance in industrial applications
✅ Long-lasting durable construction
