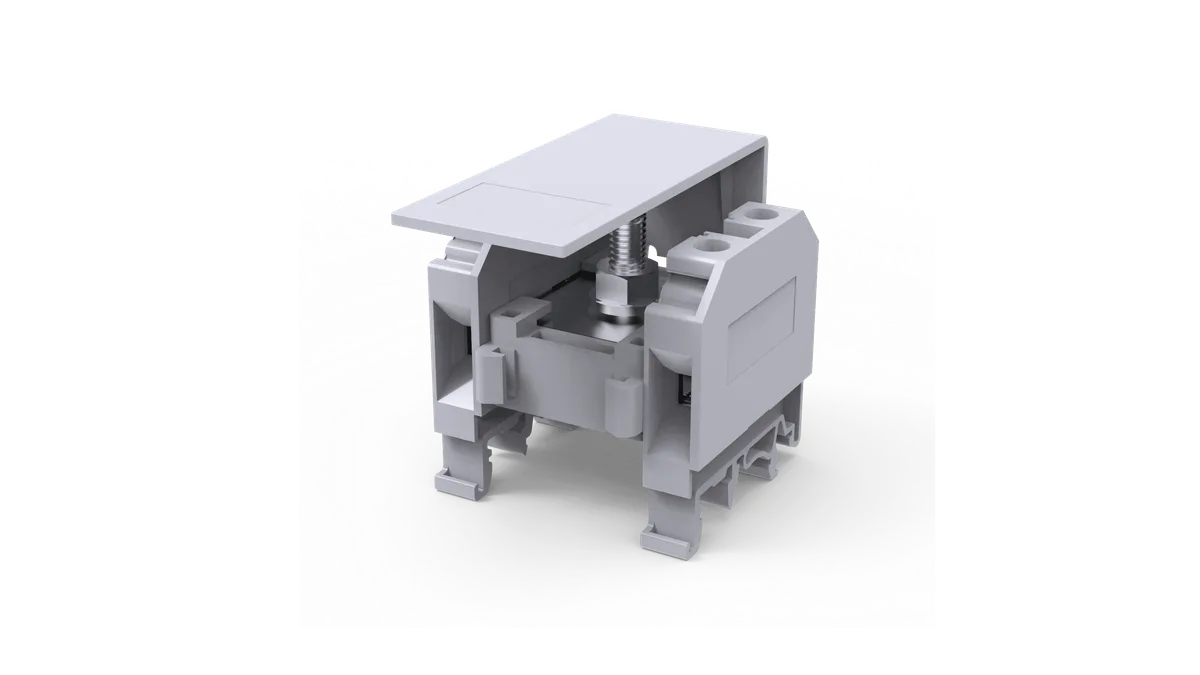

The CDB6/1Y Modular Distribution Terminal Block is a compact and efficient electrical power distribution solution designed for industrial, commercial, and control panel applications where safe and organized power distribution is essential. This modular distribution block is specially engineered to distribute electrical power from one incoming source to multiple outgoing circuits in a structured and secure way, reducing wiring complexity and improving electrical panel efficiency. It is widely used in switchgear systems, control panels, automation systems, machine wiring applications, and power distribution boards where reliable electrical performance and organized wiring are important.
In modern electrical installations, organized power distribution plays an important role in maintaining system safety, reducing cable clutter, and improving overall wiring efficiency. Traditional wiring methods often require multiple wire joints and branch connections, which can make electrical panels congested and difficult to maintain. The CDB6/1Y Distribution Terminal Block solves this issue by providing a centralized modular distribution point where one incoming supply can be safely distributed to multiple outgoing circuits. This creates a cleaner panel layout and improves installation convenience for electricians and panel builders.
One of the key advantages of the CDB6/1Y Modular Distribution Block is its 1 input and 4 output connection design, allowing efficient power distribution from one main incoming supply to multiple outgoing branch circuits. This modular arrangement reduces unnecessary wire joints and improves cable management inside electrical panels. It also saves installation time and creates a more professional wiring arrangement, especially in industrial control and power distribution systems.
The CDB6/1Y is designed for reliable electrical performance and supports a rated voltage of 800V. It offers a rated input current of 82A and a rated output current of 41A, making it suitable for industrial and commercial applications where secure power transfer and dependable current distribution are required. Its efficient power handling capability makes it ideal for machine wiring systems, control panels, switchgear applications, and industrial automation systems.
A major feature of this modular distribution block is its bolt-type central input connection design. The incoming supply is connected through a secure central bolt connection, and the internal conductive system distributes power to multiple outgoing terminals. This design improves connection reliability and ensures stable current transfer across all connected circuits. It also creates a more organized and safer electrical distribution arrangement inside the panel.
The CDB6/1Y Modular Distribution Terminal Block is manufactured using high-quality polyamide insulated housing, which offers excellent electrical insulation, heat resistance, mechanical strength, and long-term durability. The strong insulated body protects conductive parts from accidental contact and improves overall electrical safety during operation. Polyamide construction also ensures dependable performance in industrial environments where temperature variations and mechanical stress are common.
Another important safety feature of the CDB6/1Y is its protective shield design, which effectively covers the incoming connection point and helps reduce accidental contact with live conductive parts. This protective arrangement improves installation safety, maintenance safety, and long-term operational reliability. It also contributes to a cleaner and safer panel layout in professional electrical installations.
Its side-entry wire connection orientation allows easy cable insertion and organized cable routing inside electrical panels. This improves installation convenience and reduces wiring complexity, especially in compact panel spaces. The secure screw-operated outgoing connections provide strong conductor fastening and reliable electrical contact, reducing the risk of loose wiring, overheating, and voltage drop during operation.
The CDB6/1Y supports DIN 32, DIN 35, and DIN 35-15 rail mounting, making installation simple and compatible with standard industrial electrical panel systems. DIN rail mounting improves component organization, reduces installation time, and makes maintenance or replacement easier when required. This flexibility makes the distribution block suitable for professional electrical panel building applications.
Electrical safety is a major requirement in power distribution systems, and the CDB6/1Y is designed with a rated surge voltage of 8KV and pollution degree 3, making it suitable for industrial environments exposed to voltage disturbances, dust, or contaminants. These safety features improve electrical reliability and support long-term safe operation in demanding industrial applications.
The CDB6/1Y Modular Distribution Terminal Block is commonly used in:
| Specification | Details |
|---|---|
| Model Number | CDB6/1Y |
| Product Type | Modular Distribution Terminal Block |
| Rated Voltage | 800V |
| Rated Current (Input Side) | 82A |
| Rated Current (Output Side) | 41A |
| Input Connection | 1 x 25 sq.mm |
| Output Connections | 4 x 6 sq.mm |
| Conductor Range | 1.5 – 6 sq.mm |
| Housing Material | Polyamide |
| Color | Yellow |
| Mounting Type | DIN Rail Mounting |
| DIN Rail Compatibility | DIN 32 / DIN 35 / DIN 35-15 |
| Wire Entry Orientation | Side Entry |
| Screw Size | M3.5 |
| Stud Size | M6 |
| Input Tightening Torque | 3 Nm |
| Output Tightening Torque | 0.8 Nm |
| Rated Surge Voltage | 8KV |
| Pollution Degree | 3 |
| Length | 48 mm |
| Applications | Control Panels, Distribution Boards, Switchgear |
✅ Compact space-saving modular design
✅ Efficient 1 input to 4 output power distribution
✅ High 82A input current carrying capacity
✅ Supports 800V rated voltage
✅ Secure bolt-type input connection
✅ Protective shield for improved electrical safety
✅ Strong insulated polyamide housing
✅ Easy DIN rail mounting installation
✅ Side-entry wire connection for easy wiring
✅ Reduces panel wiring complexity
✅ Reliable performance in industrial applications
✅ Long-lasting durable construction
