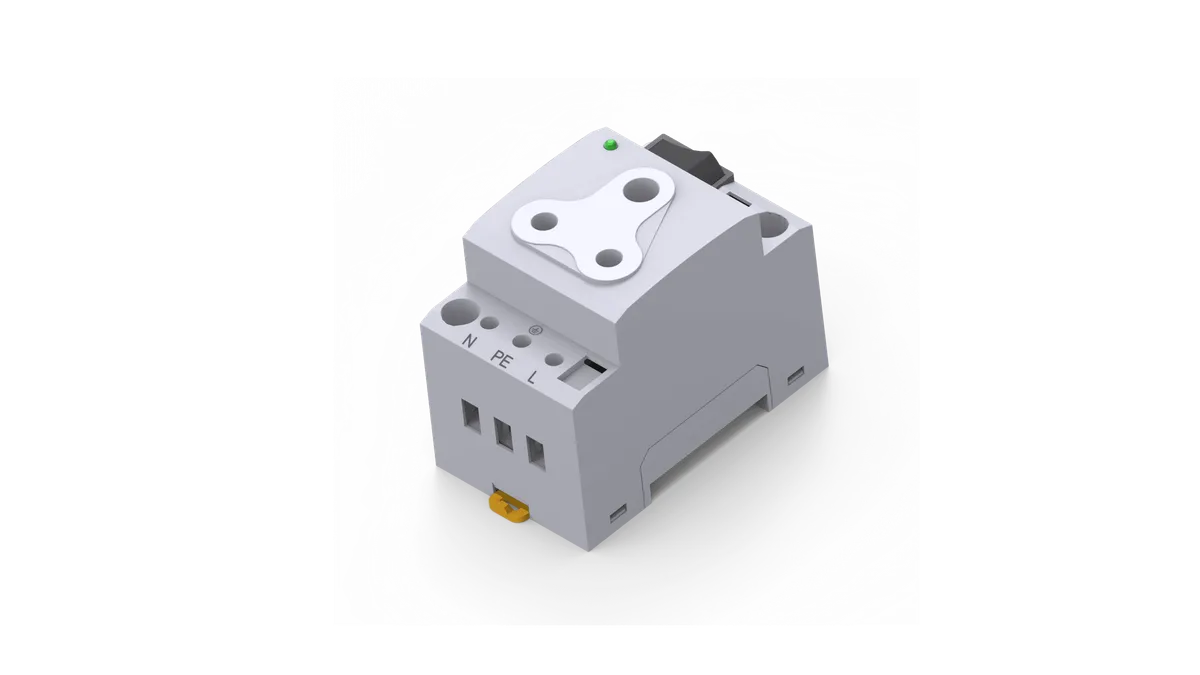

CDINSW1 is a premium quality DIN Rail Mounting Socket & Switch designed for industrial control panels, electrical enclosures, switchgear assemblies, automation systems, and panel board applications. This product offers a unique and practical solution for integrating a standard electrical socket and switch directly onto a DIN rail, allowing users to create safe and organized power access points inside industrial panels and control cabinets. It is widely used in maintenance panels, service outlets, testing stations, industrial automation panels, and machine control cabinets where temporary or permanent power supply access is required.
CDINSW1 combines a 1-pole switch with socket assembly in a compact DIN rail mountable design, reducing panel wiring complexity and saving installation space. It is specially engineered to snap easily onto standard DIN rails, making installation quick, secure, and maintenance-friendly. This eliminates the need for separate panel-mounted sockets and reduces panel cut-outs, resulting in a cleaner and more professional panel design.
With a rated voltage of 250V AC and rated current of 16A, CDINSW1 provides reliable power distribution for industrial maintenance tools, testing devices, service equipment, and auxiliary electrical appliances inside control panels. Its high-quality internal brass contacts ensure excellent conductivity and long-term electrical reliability. The unit supports wire sizes from 0.5 mm² to 2.5 mm², making it suitable for various industrial wiring requirements.
The housing is made from high-grade polycarbonate, offering excellent insulation, impact resistance, and flame-retardant properties. The DIN rail frame is manufactured using ABS material, ensuring mechanical strength and stable mounting performance. Brass wire clamp and contact material provide corrosion resistance and efficient current transfer. These materials make CDINSW1 suitable for long-term use in industrial environments.
Its compact dimensions make it ideal for control panels where space optimization is important. The integrated switch adds convenience by allowing users to turn power ON/OFF directly from the panel-mounted socket assembly. This makes CDINSW1 especially useful in industrial service panels, testing stations, maintenance outlets, instrumentation cabinets, and automation systems.
CDINSW1 is widely used in:
Its rugged design, easy DIN rail mounting, integrated switch functionality, and safe power outlet configuration make it an ideal solution for industrial electrical engineers, panel builders, automation integrators, and OEM manufacturers.
| Specification | Details |
|---|---|
| Model Number | CDINSW1 |
| Product Type | DIN Rail Mounting Socket & Switch |
| Number of Pole | 1 Pole |
| Rated Voltage | 250 V AC |
| Rated Current | 16 A |
| Minimum Wire Size | 0.5 mm² |
| Maximum Wire Size | 2.5 mm² |
| Housing Material | Polycarbonate |
| DIN Rail Frame Material | ABS |
| Wire Clamp Material | Brass |
| Contact Material | Brass |
| Height | 60 mm |
| Width | 53 mm |
| Length | 82 mm |
| Mounting Type | DIN Rail Mountable |
| Installation Type | Snap-on DIN Rail |
| Application | Industrial Panels, Automation, Switchgear |
