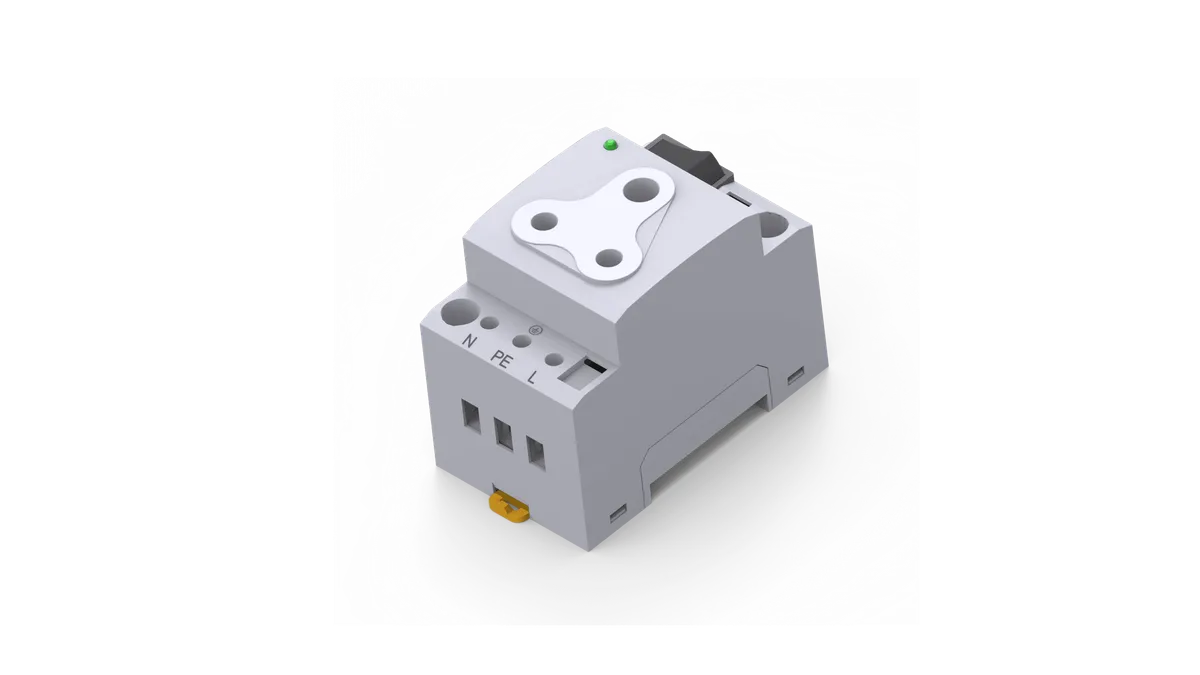

CDINSW2 DIN Rail Mounting Socket & Switch is used for providing a safe and convenient auxiliary power outlet inside industrial electrical panels, switchgear assemblies, automation cabinets, and control systems. It combines a socket and double pole switch in one compact DIN rail mountable unit, allowing maintenance engineers and panel operators to connect portable tools, testing devices, and service equipment directly inside the panel without additional external wiring arrangements.
CDINSW2 works as a DIN rail mounted power socket with integrated 2 pole switch, designed to provide controlled auxiliary power access inside electrical panels. The unit snaps directly onto a standard DIN rail and connects to the panel power supply through wire terminals. The double pole switch allows safe ON/OFF control by switching both live and neutral lines, improving electrical isolation and user safety during operation.
CDINSW2 improves electrical safety by providing a controlled and dedicated power outlet inside industrial panels. The double pole switch design disconnects both live and neutral lines for improved operator safety. Its integrated socket and switch arrangement reduces external wiring clutter, improves maintenance convenience, and helps create safer power access points inside industrial electrical systems.
CDINSW2 is manufactured using high-quality polycarbonate housing that provides excellent insulation, flame resistance, and mechanical durability. The internal brass contacts and wire clamps ensure efficient electrical conductivity and long-term reliability. Its ABS DIN rail mounting frame provides secure mechanical fitment and stable installation in industrial control panels and switchgear applications.
Using CDINSW2 helps create a neat and organized power access point inside electrical panels without requiring separate panel-mounted socket cut-outs. Its compact DIN rail design saves panel space, reduces wiring complexity, and improves overall panel aesthetics. This makes installation faster and maintenance easier in industrial control cabinets and automation systems.
CDINSW2 is widely used in:
| Specification | Details |
|---|---|
| Model Number | CDINSW2 |
| Product Type | DIN Rail Mounting Socket with Double Pole Switch |
| Switch Configuration | 2 Pole |
| Rated Voltage | 250 V AC |
| Rated Current | 6 A |
| Socket Type | DIN Rail Mounted Service Socket |
| Connection Type | Screw Clamp |
| Conductor Size | 0.5 – 2.5 mm² |
| Operating Frequency | 50/60 Hz |
| Housing Material | Polycarbonate |
| DIN Rail Frame Material | ABS |
| Contact Material | Brass |
| Wire Clamp Material | Brass |
| Height | 82 mm |
| Width | 54 mm |
| Depth | 65 mm |
| Mounting Type | DIN Rail Mounting |
| Installation Type | Snap-on DIN Rail |
| Colour | Grey |
CDINSW2 is widely used in:
