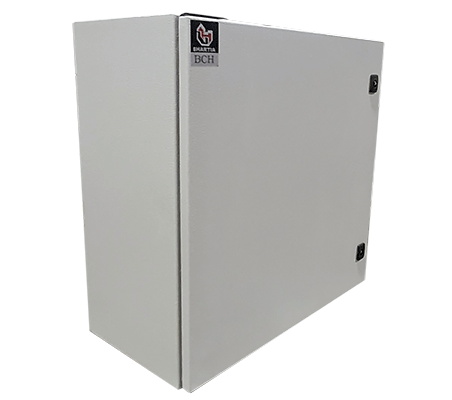

The Enclosure Systems – BIL - 50220 is a premium industrial electrical enclosure engineered for secure housing and reliable protection of electrical control systems, PLC panels, automation equipment, switchgear assemblies, and industrial distribution applications. Manufactured using high-quality CRCA steel with industrial-grade fabrication standards, this enclosure system offers superior durability, operational safety, and long-lasting industrial performance.
Industrial electrical systems are frequently exposed to dust, moisture, vibration, corrosion, heat, and accidental impact, which can negatively affect operational reliability and equipment life. The BIL - 50220 enclosure system is specially designed to protect sensitive electrical components from these environmental and operational challenges while supporting organized cable management and easy maintenance accessibility.
Its rugged industrial structure, corrosion-resistant powder-coated finish, and spacious internal layout make it suitable for manufacturing plants, automation systems, infrastructure projects, engineering facilities, machine control applications, and commercial electrical installations.
The enclosure combines industrial-grade durability, professional aesthetics, and organized internal arrangement, making it an ideal solution for modern industrial electrical infrastructure and automation systems.
The Enclosure Systems – BIL - 50220 is manufactured using premium-quality CRCA steel to ensure superior structural strength and industrial reliability. Its rugged enclosure body is specially engineered for harsh industrial environments where electrical systems require dependable and long-lasting protection.
The enclosure effectively protects internal electrical systems from:
✔ Dust contamination
✔ Moisture exposure
✔ Industrial corrosion
✔ Mechanical impact
✔ Continuous vibration
✔ Environmental damage
The enclosure body and front door are fabricated using 1.6mm CRCA steel, while the gland plate is manufactured from 2.0mm CRCA steel for enhanced structural durability. The mounting plate is built using 2.0mm GPSP steel, ensuring strong support for electrical equipment and organized installations.
Its heavy-duty industrial construction maintains operational stability even during continuous industrial operation and harsh environmental exposure.
The enclosure surface is treated with industrial powder coating combined with Tri-catatonic Zn phosphating, significantly improving resistance against rust, corrosion, moisture, and chemical exposure. This protective finishing enhances the enclosure’s operational life while maintaining a clean and professional industrial appearance.
Its industrial-grade fabrication ensures dependable long-term performance with reduced maintenance requirements and improved operational efficiency.
The BIL - 50220 enclosure system features a practical and spacious industrial layout designed for organized equipment installation and efficient electrical panel management.
✔ PLC systems
✔ Automation equipment
✔ Electrical control panels
✔ Power distribution systems
✔ Circuit breakers
✔ Relays & terminals
✔ Machine control systems
✔ Industrial switchgear assemblies
Its intelligently designed internal structure simplifies cable routing and improves accessibility for maintenance and troubleshooting operations.
The enclosure door is engineered for smooth opening and secure locking, allowing technicians and engineers easy access during installation and servicing work.
The hinged door includes a PU Foam gasket that improves sealing performance and helps prevent dust and moisture ingress into the enclosure.
Its organized mounting arrangement helps industries maintain clean electrical panel construction and professional infrastructure management.
The Enclosure Systems – BIL - 50220 is engineered to provide dependable protection for industrial electrical systems operating in demanding environments.
✔ Reduces dust contamination risks
✔ Prevents moisture-related damage
✔ Protects against accidental impact
✔ Improves operational safety
✔ Reduces equipment failure risks
✔ Supports uninterrupted industrial operations
The enclosure provides IP55 protection as per IEC 60529 standards, ensuring dependable resistance against dust ingress and water exposure. It also offers IK10 mechanical impact resistance, making it suitable for industrial applications requiring strong physical protection.
Its strong enclosure body helps improve equipment reliability while minimizing downtime caused by environmental exposure.
The enclosure additionally improves workplace safety by securely housing live electrical systems and reducing accidental contact hazards.
Proper cable organization and structured component arrangement further simplify maintenance operations, servicing work, and troubleshooting activities.
Its industrial-grade protection capabilities make the BIL - 50220 enclosure system ideal for automation systems, machine control applications, industrial infrastructure projects, and electrical distribution systems.
The BIL - 50220 enclosure system is widely used across industrial and commercial applications requiring secure electrical protection and organized installations.
Industries including manufacturing, automation, engineering, energy, telecommunications, infrastructure, mining, and industrial processing commonly use this enclosure system.
◆ Heavy-duty industrial enclosure system
◆ Premium 1.6mm CRCA steel construction
◆ 2.0mm GPSP mounting plate
◆ Durable powder-coated finish
◆ Tri-catatonic Zn phosphating protection
◆ IP55 dust & water protection
◆ IK10 impact-resistant structure
◆ Spacious industrial enclosure layout
◆ Hinged door with PU Foam gasket
◆ Secure triangular cam locking arrangement
◆ Organized cable management support
◆ Easy installation & servicing accessibility
◆ Corrosion-resistant industrial design
◆ Long-lasting industrial durability
◆ Suitable for automation & control systems
| Specification | Details |
|---|---|
| Product Name | Enclosure Systems |
| Model Number | BIL - 50220 |
| Enclosure Type | Single Door Industrial Enclosure |
| Dimensions | 500mm x 700mm x 200mm |
| Mounting Plate Size | 440mm x 676mm |
| Material | CRCA Steel |
| Body Thickness | 1.6mm CRCA Steel |
| Front Door Thickness | 1.6mm CRCA Steel |
| Gland Plate Thickness | 2.0mm CRCA Steel |
| Mounting Plate Material | 2.0mm GPSP Steel |
| Surface Finish | Powder Coated with Zn Phosphating |
| Colour | RAL-7035 |
| Protection Rating | IP55 |
| Impact Resistance | IK10 |
| Door Type | Hinged Door |
| Door Gasket | PU Foam Gasket |
| Locking Type | Triangular Insert Cam Lock |
| Installation Type | Wall Mounted |
| Door Opening | 180° |
| Number of Doors | 1 |
| Number of Locks | 2 |
| Application | Electrical & Industrial Protection |
| Usage | PLC Panels, Automation & Control Systems |
| Industry Compatibility | Industrial & Commercial |
The BIL - 50220 Enclosure System is designed for industries requiring dependable electrical protection, superior industrial durability, and organized equipment management.
✔ Strong industrial-grade construction
✔ Excellent corrosion resistance
✔ Reliable dust & moisture protection
✔ Easy maintenance accessibility
✔ Professional panel organization
✔ Improved operational safety
✔ Long service life
✔ Reduced maintenance costs
Its rugged industrial design and advanced protection features make it suitable for modern automation systems, electrical distribution applications, machine control setups, and industrial infrastructure projects.
Professionals prefer the BIL - 50220 enclosure because it delivers reliable industrial performance, secure electrical protection, and efficient operational functionality in demanding industrial environments.
Its spacious internal structure, organized mounting support, corrosion-resistant finish, and IP55 protection capabilities help industries maintain safe, efficient, and professional electrical installations with minimal downtime.
