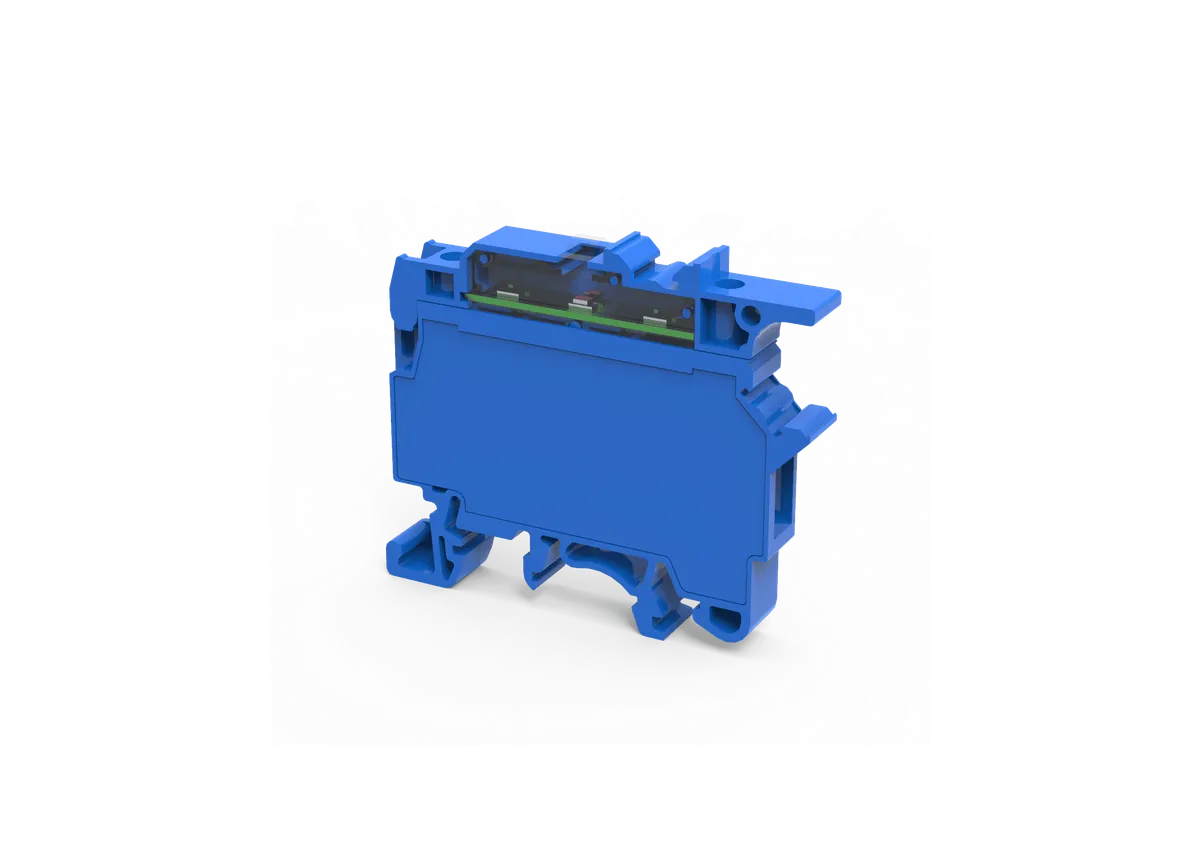

The CF4UL6-60VRPBU is a compact and industrial-grade LED fuse terminal block designed for secure circuit protection and reliable electrical connectivity in industrial automation and control systems. This DIN rail mounted terminal block is widely used in PLC panels, electrical control cabinets, switchgear assemblies, instrumentation systems, process automation equipment, and machine control applications where safe fuse protection is essential.
Equipped with an integrated LED indication system, the CF4UL6-60VRPBU enables quick identification of blown fuses, helping maintenance engineers minimize troubleshooting time and improve operational efficiency. The terminal block supports standard cartridge glass fuses and provides dependable overcurrent protection for sensitive electrical circuits and industrial automation equipment.
Its fully enclosed fuse chamber improves operator safety while supporting organized and professional panel wiring layouts. The blue housing color helps simplify circuit identification and maintenance inside complex electrical systems.
Manufactured using premium-quality polyamide insulation material, the CF4UL6-60VRPBU offers excellent thermal resistance, mechanical durability, and long-term reliability under demanding industrial conditions.
The CF4UL6-60VRPBU fuse terminal block is specially engineered for industrial electrical systems where fuse protection, compact installation, and quick maintenance access are important. The integrated LED indication lights up automatically when the fuse fails, allowing technicians to instantly identify faulty circuits without additional testing equipment.
Its screw clamp connection mechanism provides strong conductor holding and vibration-resistant electrical performance in industrial environments exposed to heat, mechanical stress, and continuous operation. The side-entry wiring configuration simplifies installation and supports clean, organized control panel layouts.
Compatible with DIN 32, DIN 35, and DIN 35-15 rails, the CF4UL6-60VRPBU offers flexible installation options across various industrial automation systems and electrical distribution panels.
The product is suitable for industrial automation systems, electrical control panels, renewable energy systems, OEM electrical assemblies, process control applications, and factory automation equipment.
| Specification | Details |
|---|---|
| Model Number | CF4UL6-60VRPBU |
| Product Type | LED Fuse Terminal Block |
| Function | Single Level Fuse Terminal |
| Rated Voltage | 800 V |
| Rated Current | 6.3 A |
| Voltage Range | 6V – 60V |
| Rated Surge Voltage | 8 kV |
| Fuse Type | Glass Cartridge Fuse |
| Fuse Size | 5 x 20 mm / 5 x 25 mm |
| Wire Size Range | 0.2 sq.mm to 4 sq.mm |
| Maximum Solid Conductor Size | 6 sq.mm |
| Connection Technology | Screw Clamp |
| Tightening Torque | 0.5 Nm |
| Mounting Compatibility | DIN 32 / DIN 35 / DIN 35-15 Rail |
| Housing Material | Polyamide |
| Screw Size | M3 |
| Wiring Orientation | Side Entry |
| Width | 8 mm |
| Length | 57 mm |
| LED Indication | Yes |
| Pollution Degree | 3 |
| Color | Blue |
| Operation | Screwdriver Operated |
| Industrial Usage | Automation & Control Panels |
The CF4UL6-60VRPBU is widely used in industrial electrical systems requiring safe fuse protection and efficient maintenance access.
Its LED indication feature makes it especially useful for systems where minimizing downtime and simplifying troubleshooting are important.
The integrated LED indication instantly displays fuse failure, helping maintenance teams quickly locate faulty circuits.
The fuse terminal block protects electrical systems against overload and short-circuit conditions.
Quick fuse access and visual indication simplify troubleshooting and reduce maintenance time.
Its slim modular structure supports efficient panel space utilization and organized wiring layouts.
The screw clamp system ensures stable conductor holding and dependable electrical performance.
The polyamide housing provides excellent resistance against heat, vibration, and mechanical stress.
The enclosed fuse chamber minimizes accidental contact with live fuse components.
Fuse terminal blocks are essential components in industrial automation and electrical control systems because they combine conductor connectivity and circuit protection in a single compact device. The CF4UL6-60VRPBU improves operational safety and simplifies panel wiring while protecting sensitive equipment from overload conditions.
The integrated LED indication system allows technicians to quickly identify blown fuses, minimizing production downtime and improving troubleshooting efficiency. Its compact DIN rail mounted structure also supports professional and organized electrical panel installations.
The CF4UL6-60VRPBU offers an excellent combination of reliable fuse protection, compact design, industrial durability, and easy maintenance access. Its LED fault indication, enclosed fuse compartment, and secure screw clamp connection system make it ideal for industrial automation and control applications.
The terminal block provides dependable long-term performance in industrial environments exposed to vibration, heat, and continuous electrical operation. It is widely preferred by electrical engineers, industrial electricians, automation professionals, and OEM panel manufacturers.
