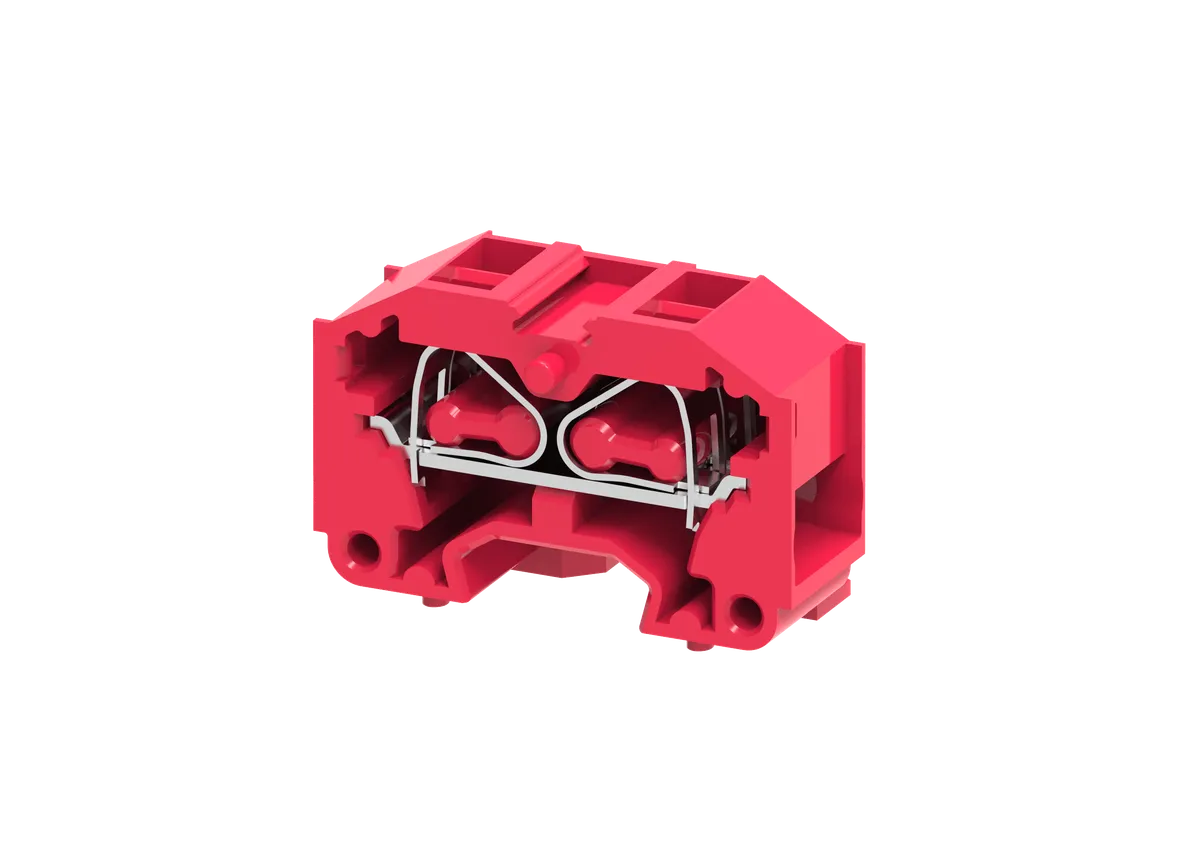

The SB Smart CM2.5SR is a premium-quality terminal block designed for safe, efficient, and reliable electrical connectivity in industrial and commercial wiring applications. Built for modern control panels and electrical systems, this terminal block provides secure wire termination, excellent conductivity, and long-term operational reliability.
Its compact and robust design makes it suitable for panel builders, OEM manufacturers, electricians, and automation professionals looking for a dependable wiring solution. The precision screw clamp connection ensures strong conductor retention while reducing the possibility of loose wiring, electrical faults, overheating, and maintenance issues.
Designed using high-grade engineering thermoplastic insulation and durable conductive metal components, the SB Smart CM2.5SR offers superior resistance to heat, electrical stress, and industrial operating conditions. Its DIN rail mounting design simplifies installation and helps in creating neat, organized, and space-efficient panel layouts.
The terminal block supports structured cable management and improves accessibility for maintenance and troubleshooting. Whether used in automation systems, electrical switchboards, control panels, PLC systems, or machine wiring, the SB Smart CM2.5SR ensures dependable performance where safety and efficiency are critical.
For professional electrical installations that require durability, secure connectivity, and compact design, the SB Smart CM2.5SR is a trusted solution for industrial-grade applications.
Choosing the right terminal block is essential for safe and efficient electrical performance. The SB Smart CM2.5SR is designed to deliver professional-grade reliability and installation convenience for modern electrical systems.
| Specification | Details |
|---|---|
| Product Model | CM2.5SR |
| Product Type | Feed Through Terminal Block |
| Terminal Function | Secure Wire Connection |
| Rated Cross Section | 2.5 mm² |
| Rated Voltage | 800 V |
| Rated Current | 24 A |
| Connection Type | Screw Clamp |
| Number of Connections | 2 |
| Number of Levels | 1 |
| Wire Size (Solid) | 0.2 – 4 mm² |
| Wire Size (Stranded) | 0.2 – 2.5 mm² |
| Stripping Length | 8 mm |
| Mounting Type | TS-35 DIN Rail |
| Housing Material | Polyamide (PA 6.6) |
| Contact Material | Copper Alloy |
| Screw Material | Zinc Plated Steel |
| Terminal Color | Grey |
| Flammability Class | UL94 V-0 |
| Thermal Stability | Industrial Grade |
| Heat Resistance | Yes |
| Corrosion Resistance | Yes |
| Moisture Resistance | Yes |
| Dust Resistance | Industrial Grade |
| Vibration Stability | Yes |
| Electrical Conductivity | High Performance |
| Mechanical Strength | High |
| Mounting Stability | Secure Fitment |
| Maintenance Benefit | Easy Wiring Access |
| Service Life | Long Industrial Use |
| Main Usage | Wire Connection & Power Distribution |
| Panel Benefit | Safe & Organized Wiring Management |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
► Secure Electrical Connection
Provides firm screw clamp wire holding for safe electrical connectivity.
► High Performance Rating
Supports 24A current and 800V voltage for industrial applications.
► DIN Rail Mounting Design
Fast and secure installation on standard TS-35 DIN rail.
► Wide Wire Range Support
Compatible with solid and stranded conductors.
► Flame Retardant Safety Housing
Made with UL94 V-0 Polyamide for improved safety.
► Industrial Grade Durability
Built for harsh industrial operating conditions.
► Compact Space Saving Design
Improves control panel wiring organization.
► Low Maintenance Operation
Easy servicing and troubleshooting support.
► Vibration Resistant Construction
Reliable performance in machine and automation panels.
► Long Service Life
Durable material construction for extended industrial use.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✔ PLC Panels
✔ Industrial Control Cabinets
✔ Automation Systems
✔ Switchgear Assemblies
✔ Relay Logic Panels
✔ Machine Wiring Systems
✔ Instrumentation Panels
✔ Power Distribution Boards
✔ Electrical Control Panels
✔ OEM Panel Assemblies
✔ Industrial Equipment Wiring
✔ Terminal Block Assemblies
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
