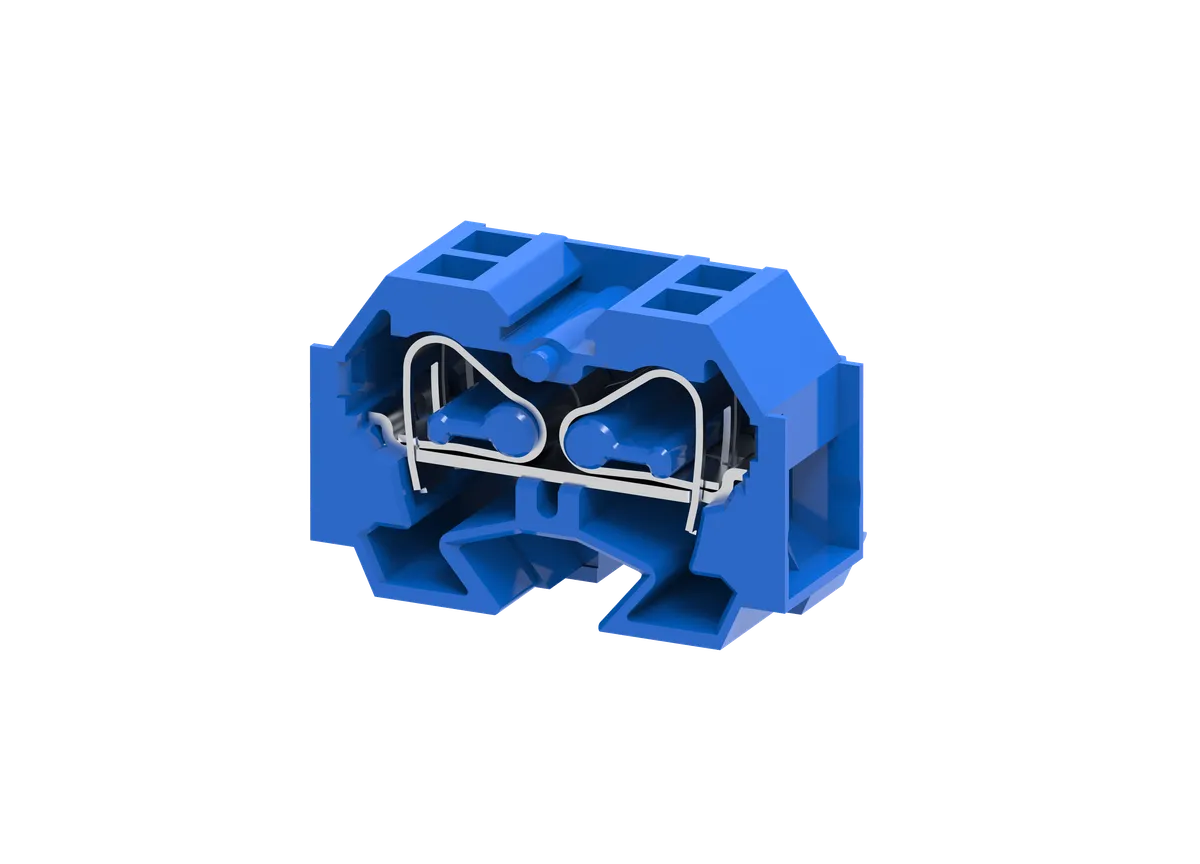

CM4S2BU 4 sq.mm Panel Mount Spring Clamp Terminal Block (Blue) is a high-performance electrical connection component designed for secure wire termination, structured circuit connectivity, and organized panel wiring in industrial and commercial electrical systems. It is widely used in control panels, switchgear, automation systems, machine wiring, power distribution boards, junction boxes, and industrial electrical installations where reliable electrical connectivity and maintenance-free performance are required.
In modern electrical systems, secure conductor termination is essential for maintaining stable current flow, safe operation, and long-term reliability. Designed with advanced spring clamp connection technology, the CM4S2BU provides constant pressure on the conductor and creates a vibration-proof electrical connection without the need for periodic tightening. Unlike traditional wire termination methods, this spring clamp design reduces loose connection risks, improves safety, and supports faster installation in industrial applications.
Its compact panel mount design, durable insulation housing, and organized wire entry configuration make the CM4S2BU ideal for professional electrical installations where space-saving wiring and clean panel organization are important.
In industrial electrical systems, safe and organized wire termination is necessary for:
✔ Secure conductor connection
✔ Stable current flow
✔ Electrical circuit continuity
✔ Control panel wiring
✔ Power distribution systems
✔ Automation signal connections
✔ Junction box interconnections
✔ Machine wiring applications
Without a proper terminal block, direct wire connections may create:
◆ Loose conductor connections
◆ Unsafe wiring conditions
◆ Difficult maintenance
◆ Untidy panel layouts
◆ Increased installation time
◆ Risk of electrical faults
The CM4S2BU solves these issues by providing a secure and compact spring clamp terminal block for structured electrical wiring.
The CM4S2BU uses a spring clamp wire connection mechanism that securely grips the conductor and maintains constant pressure for reliable electrical continuity.
During operation:
✔ Wire is inserted into terminal connection point
✔ Spring clamp holds conductor firmly
✔ Stable electrical contact is maintained
✔ Current flows with low resistance
✔ Vibration-proof connection remains secure
✔ Safe wire termination is achieved
This improves electrical safety and wiring efficiency in industrial applications.
◆ 4 sq.mm wire connection capacity
◆ Spring clamp wire termination technology
◆ Panel mount terminal block design
◆ Side-entry conductor insertion
◆ Compact modular structure
◆ Secure vibration-resistant connection
◆ Maintenance-free wire holding
◆ Low resistance conductive path
◆ Durable insulation housing
◆ Easy screwdriver operation
◆ Fast installation support
◆ Organized wiring management
◆ Blue color circuit identification
◆ Long industrial service life
The CM4S2BU improves industrial electrical wiring by providing a secure and maintenance-free conductor connection.
Its design helps:
✔ Reduce loose wiring risks
✔ Improve electrical continuity
✔ Support vibration-proof operation
✔ Minimize contact resistance
✔ Improve panel safety
✔ Reduce maintenance requirements
✔ Support fast installation
✔ Improve wiring reliability
This makes it ideal for industrial control systems and electrical panel applications.
The CM4S2BU is manufactured using industrial-grade materials for reliable electrical and mechanical performance.
Its construction provides:
✔ High-strength polyamide housing
✔ Excellent electrical insulation
✔ Heat-resistant body material
✔ Flame-retardant construction
✔ Durable spring clamp mechanism
✔ Corrosion-resistant conductive parts
✔ Compact industrial design
✔ Long service life
Its rugged construction supports reliable performance under industrial conditions such as vibration, heat, dust, and continuous electrical operation.
The CM4S2BU helps improve panel wiring efficiency by providing a compact and structured wire termination solution.
Its design supports:
✔ Cleaner panel wiring layout
✔ Organized conductor routing
✔ Faster installation
✔ Better circuit identification
✔ Easy troubleshooting access
✔ Reduced wiring clutter
✔ Professional panel finishing
✔ Improved maintenance convenience
| Specification | Details |
|---|---|
| Product Model | CM4S2BU |
| Product Type | Panel Mount Spring Clamp Terminal Block |
| Terminal Function | Secure Wire Termination & Feed Through Connection |
| Terminal Color | Blue |
| Rated Voltage | 630V |
| Rated Current | 32A |
| Conductor Size | 0.2 – 4 sq.mm |
| AWG Range | 24 – 10 AWG |
| Connection Type | Spring Clamp |
| Wire Entry Type | Side Entry |
| Mounting Type | Panel Mount / Surface Mount |
| Housing Material | Industrial Grade Polyamide |
| Insulation Type | High Electrical Insulation |
| Rated Surge Voltage | 6kV |
| Pollution Degree | 3 |
| Stripping Length | 10 mm |
| Dimensions (L x W x H) | 33.7 x 12 x 23 mm |
| Operation Type | Screwdriver Actuated |
| Mechanical Strength | High |
| Heat Resistance | Yes |
| Corrosion Resistance | Yes |
| Moisture Resistance | Industrial Grade |
| Dust Resistance | Industrial Grade |
| Vibration Stability | Yes |
| Electrical Conductivity | High Conductive Contact Path |
| Mounting Stability | Secure Panel Fitment |
| Maintenance Benefit | Maintenance-Free Connection |
| Service Life | Long Industrial Use |
| Main Usage | Wire Termination & Circuit Connectivity |
| Panel Benefit | Organized Wiring & Reliable Electrical Connection |
► Secure Spring Clamp Connection
Provides firm wire holding and vibration-resistant electrical contact.
► Compact Panel Mount Design
Ideal for space-saving electrical panel installations.
► Reliable Electrical Performance
Supports stable current flow with low contact resistance.
► Maintenance-Free Operation
Spring clamp technology reduces periodic tightening requirements.
► Durable Industrial Construction
Built with high-quality polyamide for long service life.
► Easy Installation
Side-entry design supports quick and convenient wiring.
► Professional Panel Organization
Helps create cleaner and structured wiring layouts.
✔ PLC Panels
✔ Industrial Control Cabinets
✔ Automation Systems
✔ Switchgear Assemblies
✔ Power Distribution Panels
✔ Electrical Junction Boxes
✔ Machine Wiring Systems
✔ Process Automation Panels
✔ Instrumentation Systems
✔ Relay Control Circuits
✔ HVAC Control Panels
✔ Industrial Electrical Installations
