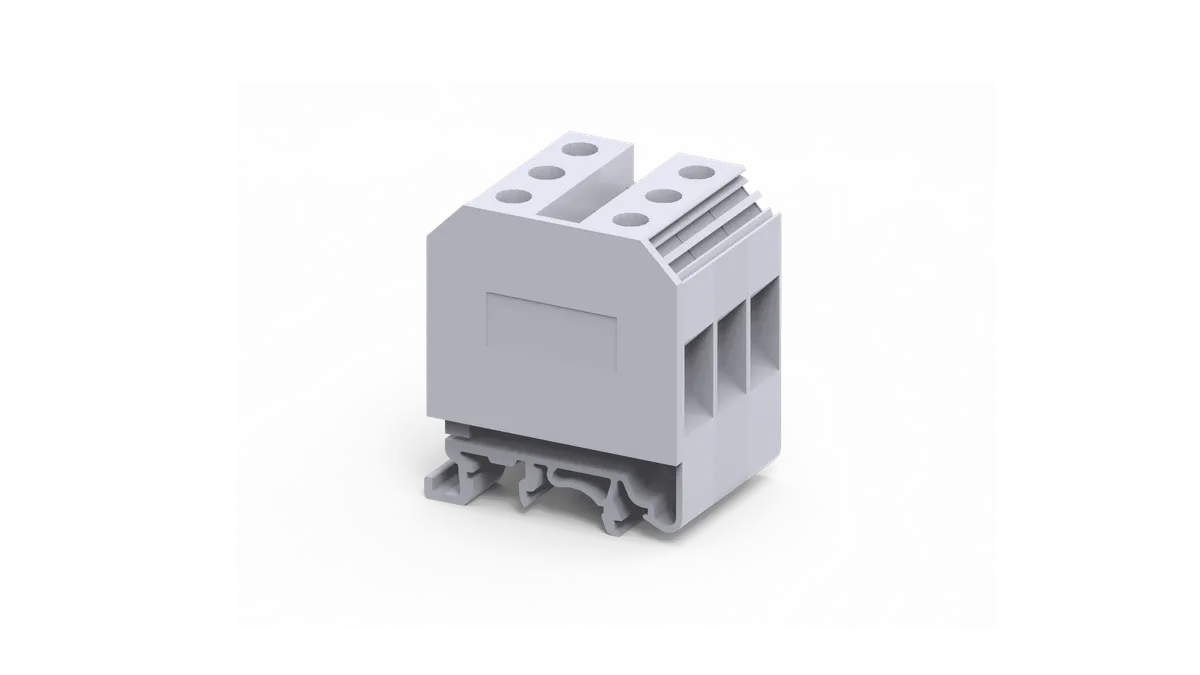

CMDB25/3BU is a modular distribution terminal block specially designed for safe power distribution, multiple circuit connection, and organized electrical wiring in industrial electrical systems. It is engineered to provide a common distribution point for multiple outgoing circuits, making it an ideal solution for applications where electrical power needs to be distributed safely and efficiently from one source to multiple output connections. Its compact and organized design helps simplify industrial panel wiring and improves circuit management in control panels, switchgear assemblies, automation systems, and electrical distribution applications.
The main purpose of CMDB25/3BU is to provide 6 output connection points of 25 sq.mm through one compact modular distribution block. Instead of creating multiple loop wiring connections, this distribution block allows electrical power to be supplied through one terminal point and distributed safely across the internally connected terminal outputs. This helps reduce wiring complexity, improve cable management, and create a cleaner and more professional panel layout in industrial electrical systems. It is especially useful in power distribution boards, control panels, machine wiring systems, PLC panels, and automation cabinets where safe and organized multi-circuit power distribution is required.
One of the major advantages of CMDB25/3BU is its internally connected conductive distribution system, which ensures uniform current distribution, low contact resistance, and reliable electrical continuity across all connected terminals. Power can be given to any one terminal point, and the same electrical potential becomes available across the remaining connected outputs through the internal conductive bar. This eliminates the need for external jumper arrangements and supports efficient industrial electrical distribution in a compact form.
Its 6 connection compact distribution design offers a major space-saving advantage in electrical panels. Instead of using multiple individual terminal blocks or looping wires, this single modular distribution block provides organized multi-point electrical distribution through one compact assembly. This reduces cable clutter, saves installation space, improves panel appearance, and makes troubleshooting easier during maintenance work. Organized wiring also improves safety by reducing loose wire risks and accidental wiring errors inside electrical cabinets.
The screw clamp connection system provides secure conductor holding, strong mechanical retention, and reliable long-term electrical continuity. Its screw-tightened conductor design ensures low contact resistance and dependable current transfer even in industrial environments where vibration, heat, and continuous electrical operation are common. The side wire entry design also improves conductor accessibility and makes installation easier in compact electrical panels where organized wiring space is limited.
Another important advantage of CMDB25/3BU is its blue colour housing, which supports quick circuit identification and colour-coded wiring organization in industrial electrical systems. In modern control panels and distribution assemblies, colour-coded terminal blocks help maintenance personnel identify circuits quickly during servicing and troubleshooting. This improves operational safety, reduces maintenance time, and creates a more professional electrical panel layout. Blue colour coding is often used where dedicated circuit identification or neutral distribution marking is required.
Manufactured using high-strength engineering-grade polyamide insulated housing with industrial conductive components, CMDB25/3BU provides excellent electrical insulation, heat resistance, secure conductor retention, strong mechanical durability, low resistance current transfer, and long service life in demanding industrial operating conditions. Its DIN rail mountable construction supports fast installation and efficient electrical panel assembly in industrial control and power distribution systems.
This modular distribution terminal block is widely used in control panels, switchgear assemblies, PLC systems, industrial automation panels, power distribution boards, machine wiring systems, electrical control cabinets, HVAC electrical panels, OEM equipment, and industrial electrical installations where safe and organized multi-circuit electrical distribution is required.
CMDB25/3BU is used in electrical systems where power needs to be distributed safely from one common point to multiple circuits through one compact modular distribution block. It improves panel wiring organization, reduces cable clutter, and provides reliable industrial power distribution in a professional wiring layout.
✔ Provides 6 output connections in one block
✔ Supports safe power distribution
✔ Reduces wiring complexity
✔ Improves panel organization
✔ Supports colour-coded circuit identification
✔ Provides reliable electrical continuity
