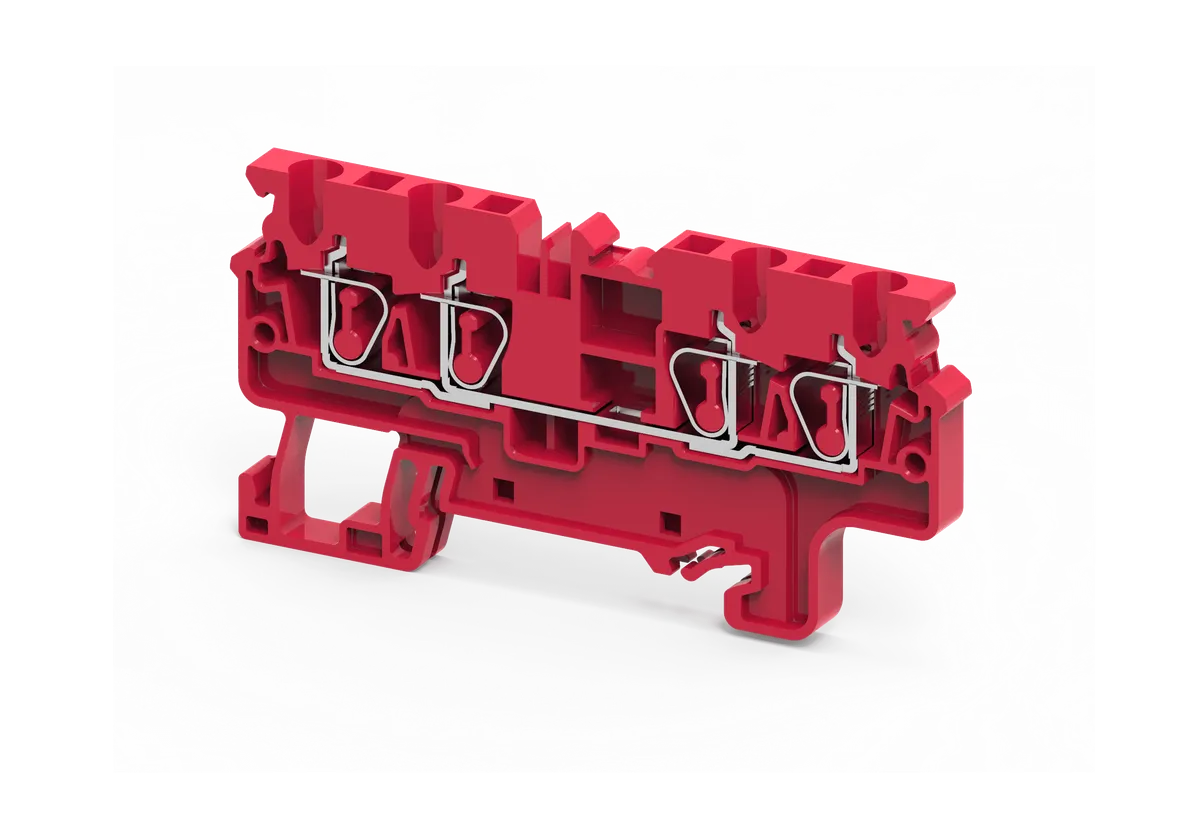

he CP2.5/4R is a high-performance DIN rail push-in terminal block designed for industrial electrical wiring and control panel applications. This terminal block is widely used in automation systems, electrical distribution panels, machinery wiring, PLC systems, and industrial control cabinets. The product belongs to the CP series of push-in terminal blocks and is known for its compact design, reliable electrical connection, and easy installation.
The CP2.5/4R terminal block is engineered to provide secure and maintenance-free connections for electrical conductors. Its push-in spring connection technology allows fast wire insertion without requiring special tools, reducing installation time and improving wiring efficiency. The “4R” designation generally refers to a 4-wire feed-through configuration with a red-colored housing for easy circuit identification.
This terminal block is manufactured using high-quality polyamide insulation material that offers excellent thermal resistance, mechanical strength, and flame-retardant properties. It is suitable for demanding industrial environments where safety, durability, and reliable electrical performance are critical.
Industrial electricians and panel builders prefer the CP2.5/4R because it simplifies wiring tasks while maintaining strong electrical conductivity and vibration resistance. The product is commonly installed on standard DIN rails and supports a wide range of conductor sizes, making it highly versatile for industrial electrical systems.
The CP2.5/4R terminal block uses advanced push-in spring clamp technology for rapid and secure wire connections. This feature minimizes installation time and improves productivity in industrial wiring applications.
Its compact structure allows efficient use of panel space, making it ideal for high-density control panels and electrical cabinets.
The terminal block provides stable current transmission and low contact resistance, ensuring safe and efficient electrical operation.
Manufactured from durable Polyamide PA66 material, the product offers excellent resistance to heat, chemicals, and mechanical stress.
The red-colored housing helps technicians identify circuits quickly during installation, troubleshooting, and maintenance.
The spring clamp system ensures secure conductor retention even in high-vibration industrial environments.
Unlike screw-type terminal blocks, push-in terminals reduce the risk of loose connections caused by vibration or thermal expansion.
| Specification | Details |
|---|---|
| Product Model | CP2.5/4R |
| Product Type | Push-In DIN Rail Terminal Block |
| Terminal Type | Feed Through |
| Number of Connections | 4 Connections |
| Mounting Type | DIN Rail Mount |
| Connection Technology | Push-In Spring Clamp |
| Rated Voltage (IEC) | Up to 1000V |
| Rated Voltage (UL) | Up to 600V |
| Rated Current (IEC) | 24A |
| Rated Current (UL) | 20A |
| Wire Size Range | 0.2 mm² to 2.5 mm² |
| AWG Range | 12 AWG to 24 AWG |
| Housing Material | Polyamide PA66 |
| Color | Red |
| Strip Length | 10 mm |
| Flammability Rating | Industrial Grade Flame Resistant |
| Application | Industrial Control Panels |
| Operating Environment | Industrial Electrical Systems |
| Installation Method | DIN Rail Installation |
The above specifications may vary slightly depending on the manufacturer and product version.
The CP2.5/4R push-in terminal block is widely used across multiple industrial and commercial electrical applications. Its versatile design makes it suitable for modern electrical installations where quick wiring and long-term reliability are essential.
The terminal block is commonly used in PLC panels, automation cabinets, and process control systems for secure signal and power distribution.
Panel builders use the CP2.5/4R for organized and reliable wiring in industrial control panels and switchboards.
Industrial machines require vibration-resistant electrical connections, making this terminal block ideal for heavy machinery applications.
The product supports safe current distribution in low-voltage electrical installations.
Heating, ventilation, and air conditioning systems use DIN rail terminal blocks for internal wiring and electrical control.
Solar power systems and energy control units often use push-in terminal blocks for efficient electrical connectivity.
One of the major advantages of the CP2.5/4R terminal block is its ability to simplify electrical wiring. Traditional screw-type terminal blocks require regular tightening and maintenance, whereas push-in terminal blocks offer secure, maintenance-free operation.
The compact design also helps optimize panel space, allowing engineers to build smaller and more efficient electrical cabinets. Faster installation reduces labor costs and project completion time.
The terminal block’s durable insulation material provides excellent resistance against heat and industrial chemicals, ensuring long service life even in harsh environments.
Another significant benefit is improved safety. The push-in spring mechanism ensures proper conductor contact and minimizes the possibility of loose wiring connections that could cause overheating or electrical failure.
