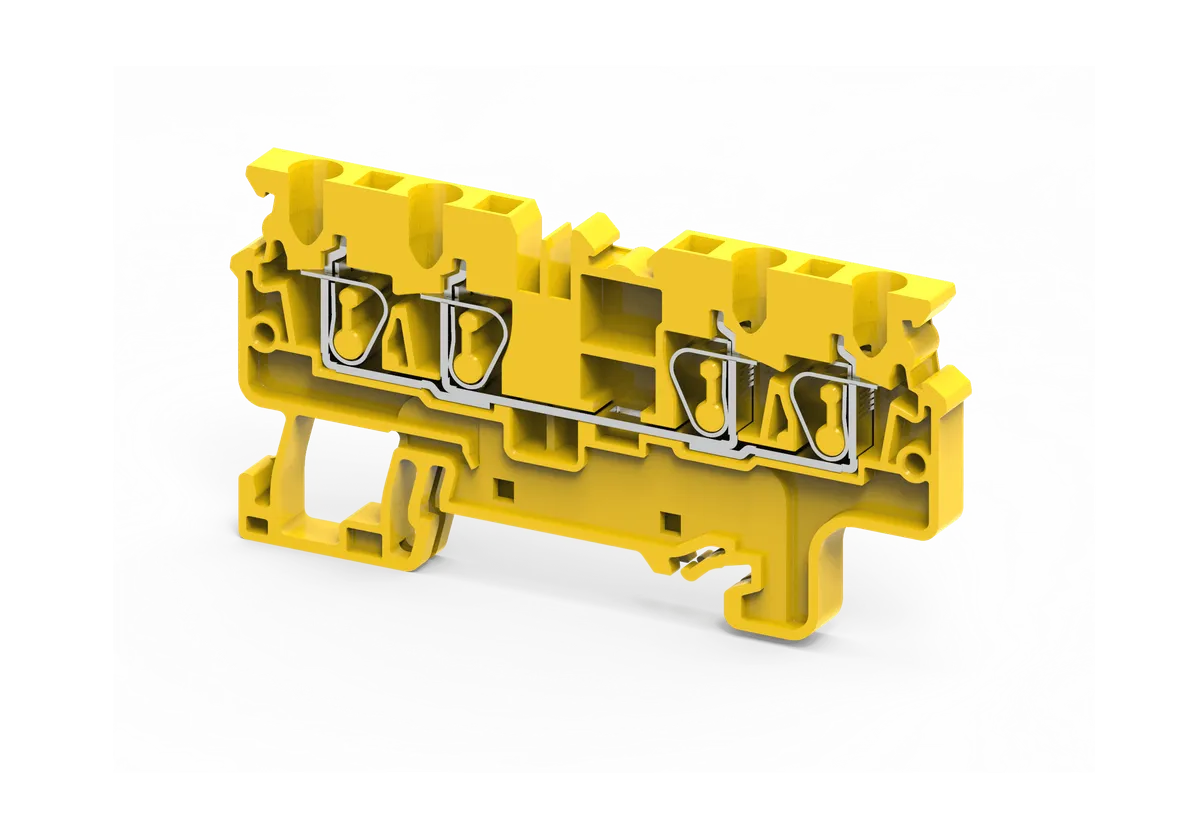

The CP2.5/4Y is a high-performance feed through push-in terminal block specially designed for industrial electrical wiring, PLC panels, automation systems, switchgear assemblies, and power distribution applications. Built with advanced push-in connection technology, this terminal block provides fast, secure, and maintenance-friendly wiring for modern industrial electrical systems.
The CP2.5/4Y terminal block is designed to simplify electrical wiring operations while ensuring maximum safety and long-term performance. Its innovative push-in technology allows direct insertion of lugged conductors without using a screwdriver, significantly reducing installation time and improving wiring efficiency inside electrical panels.
For flexible conductors without ferrules, the terminal block includes a convenient push button mechanism that enables quick and secure wire termination. This makes the CP2.5/4Y highly suitable for modern industrial automation systems where fast installation and maintenance are critical.
Manufactured using premium-grade polyamide insulation material, the terminal block offers excellent electrical insulation, thermal resistance, flame resistance, and mechanical durability. Its rugged industrial construction ensures stable operation even under harsh industrial conditions involving vibration, heat, and continuous electrical loads.
The compact design helps maximize panel space utilization, making it ideal for high-density wiring applications in control cabinets and switchgear systems. Despite its slim construction, the terminal block delivers reliable electrical conductivity and strong wire retention performance.
The 4-connection point configuration enables efficient wire distribution and organized electrical wiring arrangements inside industrial panels. This helps reduce wiring complexity while maintaining clean and professional panel layouts.
The CP2.5/4Y supports conductor sizes ranging from 0.2 mm² to 2.5 mm² for stranded wires and up to 4 mm² solid conductors, providing excellent flexibility for different industrial wiring requirements.
This terminal block is compatible with DIN 35 and DIN 35-15 mounting rails, allowing quick and secure installation in standard industrial electrical panels. Its top-entry wire orientation further simplifies cable routing and improves accessibility during installation and maintenance.
The CP2.5/4Y is widely used in:
Its vibration-resistant push-in connection technology ensures reliable electrical continuity even in demanding industrial environments. The secure clamping mechanism minimizes the chances of loose wiring, helping improve overall electrical safety and system reliability.
The terminal block is designed according to international industrial standards and is suitable for applications requiring compact design, fast installation, and dependable long-term performance.
| Parameter | Specification |
|---|---|
| Model Number | CP2.5/4Y |
| Product Type | Feed Through Push-In Terminal Block |
| Rated Voltage | 1000 V |
| Rated Current | 24 A |
| Connection Type | Push-In |
| Number of Connections | 4 |
| Number of Levels | 1 |
| Wire Range Stranded | 0.2 – 2.5 mm² |
| Wire Range Solid | 0.2 – 4 mm² |
| AWG Range | 24 – 12 AWG |
| Mounting Type | DIN 35 / DIN 35-15 Rail |
| Housing Material | Polyamide |
| Wire Entry Orientation | Top |
| Stripping Length | 10 mm |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Color | Yellow |
| Terminal Width | 5 mm |
| Connection Technology | Push-In Spring Clamp |
Enables quick conductor insertion without screwdriver operation for faster panel assembly.
Slim 5 mm width allows high-density wiring inside industrial electrical cabinets.
Strong vibration-resistant connection ensures stable electrical continuity.
Premium polyamide body provides excellent thermal and electrical insulation.
Compatible with standard DIN mounting rails for quick installation.
4 connection points improve wiring flexibility and distribution capability.
