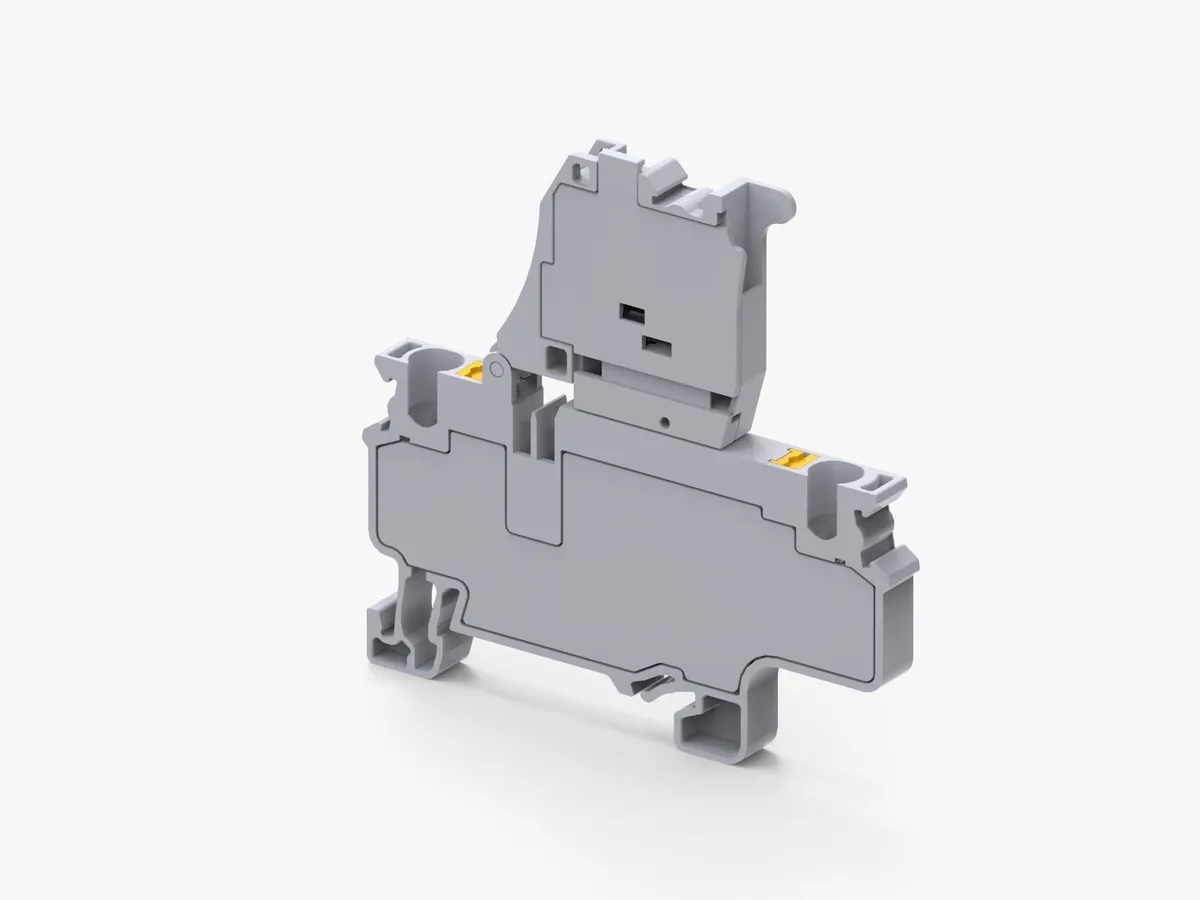

2 Level Push In Spring Clamp Disconnect Fuse Terminal Block 110–240V, 2.5mm² – CPDLFK2.5L110-240V

Product Description

SB Smart CPDLFK2.5L110-240V is a premium quality 2.5 sq.mm Double Level Push-In Fuse Terminal Block with LED Indication designed for safe circuit protection, compact wiring, and efficient electrical panel management in industrial control panels, switchgear systems, PLC panels, and automation applications. This advanced fuse terminal block combines terminal connection and fuse protection in a single compact unit, making it an ideal solution for modern electrical installations where circuit safety and space-saving design are essential. It is specially engineered to protect electrical circuits from overload and fault conditions while ensuring organized panel wiring and easy maintenance.

The CPDLFK2.5L110-240V features a double level fuse terminal block design, which helps increase wiring density and saves valuable panel space in compact electrical enclosures. The integrated fuse protection system isolates circuits during overload or fault conditions, preventing damage to sensitive electrical equipment. This terminal block is equipped with LED indication for 110-240V circuits, allowing quick visual identification in case of fuse failure. The LED indication improves troubleshooting efficiency, reduces maintenance time, and helps electricians identify faulty circuits without extensive manual testing.

Built with advanced Push-In spring clamp connection technology, the SB Smart CPDLFK2.5L110-240V provides tool-less wire insertion for faster and safer installation. The push-in mechanism ensures gas-tight, vibration-resistant, and maintenance-free electrical connections, making it highly suitable for industrial environments where electrical reliability is critical. Unlike conventional screw clamp terminals, push-in technology reduces installation time, improves wiring efficiency, and ensures secure conductor holding force for long-term dependable performance.

Designed for 2.5 sq.mm conductor capacity, the SB Smart CPDLFK2.5L110-240V supports both solid and stranded conductors for flexible wiring applications. It offers a rated voltage of 500V and a rated current of 6.3A / 22A, making it suitable for industrial control circuits, signal protection systems, instrumentation panels, PLC systems, and machine control wiring applications. Its optimized conductive design ensures low resistance, stable current transfer, and reliable circuit protection under industrial operating conditions.

This fuse terminal block uses a 5x20 mm glass fuse, allowing easy fuse replacement during maintenance and circuit protection operations. The integrated fuse holder is designed for safe and quick access, minimizing downtime during servicing. The terminal block also features offline LED fuse blown indication, which improves safety and maintenance efficiency in electrical systems where quick fault detection is important. This makes the SB Smart CPDLFK2.5L110-240V a practical solution for professional electrical installations requiring both circuit protection and wiring efficiency in one compact terminal block.

Manufactured using high-grade polyamide insulated housing, the SB Smart CPDLFK2.5L110-240V offers excellent heat resistance, electrical insulation, mechanical strength, and long service life. The grey insulated body protects conductive components from accidental contact while maintaining operational safety in industrial environments. With DIN 35 / DIN 35-15 rail mounting compatibility, the terminal block allows quick installation in standard electrical panels and switchgear assemblies. Its compact double-level construction improves panel space utilization while maintaining safe and organized wiring.

The SB Smart CPDLFK2.5L110-240V is widely used in industrial control panels, PLC systems, automation equipment, process control circuits, instrumentation panels, OEM electrical systems, machine wiring, switchgear assemblies, and circuit protection applications where safe fuse protection and compact terminal wiring are required. Its durable construction, push-in technology, LED indication, and reliable fuse protection make it an ideal choice for professional industrial electrical installations.
