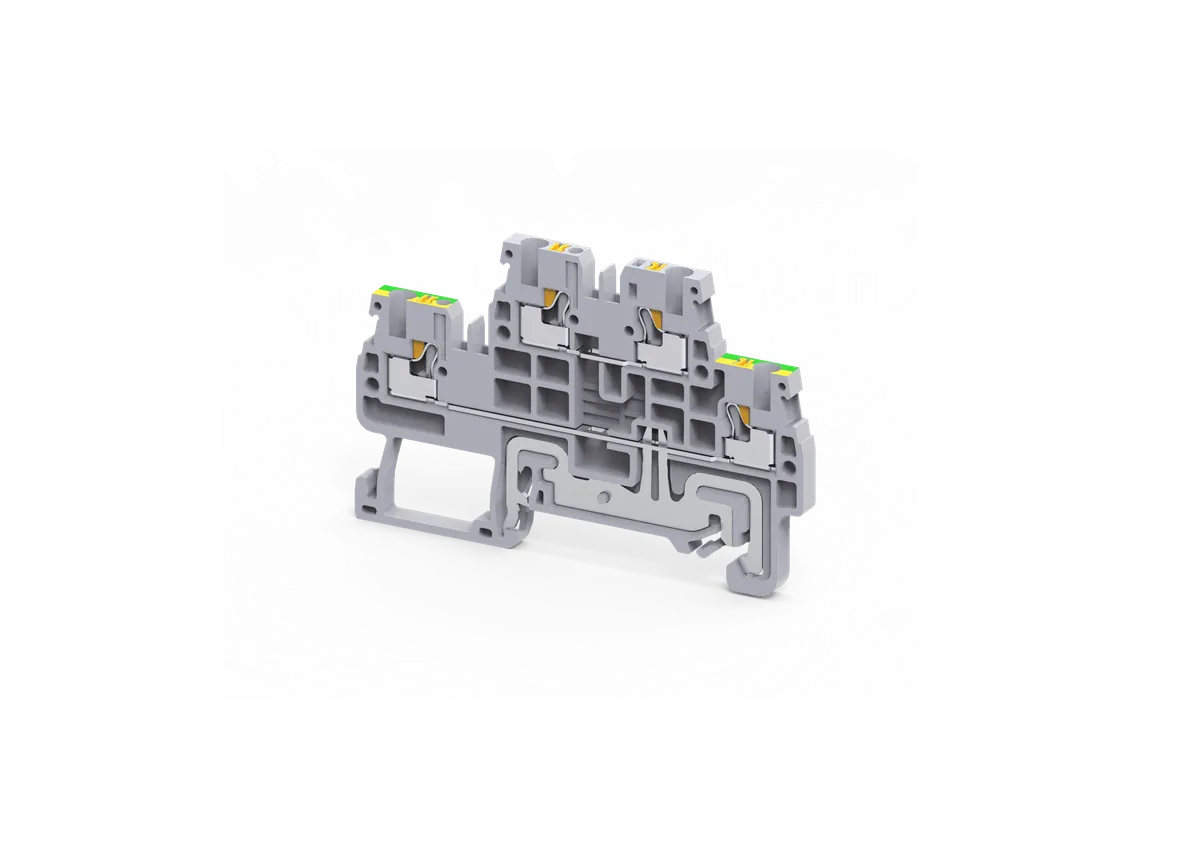

SB Smart CPDLG1.5 is a high-performance 1.5 sq.mm Push-In Disconnect Terminal Block designed for safe, efficient, and organized electrical wiring in industrial control panels, PLC systems, switchgear assemblies, automation equipment, instrumentation circuits, machine control applications, and electrical distribution systems. This advanced disconnect terminal block is specially engineered to provide secure conductor termination along with easy circuit isolation for testing, maintenance, and troubleshooting applications.
The CPDLG1.5 disconnect terminal block combines feed-through wiring and disconnect functionality in one compact unit, making it an ideal solution for professional electrical installations where circuit isolation and secure conductor management are essential. In many industrial applications, testing or isolating a signal circuit often requires disconnecting wires manually, which can be time-consuming and risky. The SB Smart CPDLG1.5 simplifies this process by providing a built-in disconnect mechanism, allowing quick and safe circuit separation without disturbing the complete wiring system.
One of the key advantages of the SB Smart CPDLG1.5 is its advanced Push-In spring clamp connection technology, which allows tool-less wire insertion for faster and more reliable installation. This push-in connection system creates a gas-tight, vibration-resistant, and maintenance-free conductor connection, ensuring secure electrical contact in industrial environments where electrical reliability is critical. Compared to conventional screw clamp terminals, push-in technology reduces wiring time, improves conductor holding force, and minimizes maintenance requirements.
Designed for 1.5 sq.mm conductor capacity, the SB Smart CPDLG1.5 supports both solid and stranded conductors, making it suitable for a wide range of industrial and commercial electrical applications. It offers a rated voltage of 500V and a rated current of 17.5A, ensuring stable and safe electrical performance in control circuits, instrumentation panels, PLC systems, automation equipment, signal wiring, machine control applications, and OEM electrical systems.
Manufactured using high conductivity copper alloy conductive parts, the SB Smart CPDLG1.5 provides excellent electrical conductivity and dependable current transfer performance. The conductive elements are specially designed to minimize resistance and heat generation during operation, improving electrical efficiency and ensuring reliable circuit continuity over long service life.
The terminal block is built with a high-grade polyamide insulated housing, which offers excellent mechanical strength, heat resistance, electrical insulation, flame resistance, and durability in industrial operating environments. The insulated body protects conductive parts from accidental contact while ensuring operational safety in crowded electrical control panels. Its grey color body makes it suitable for standard electrical panel wiring and organized terminal block layouts.
The disconnect slide mechanism integrated into the SB Smart CPDLG1.5 allows electricians and maintenance engineers to quickly isolate a circuit for testing, signal interruption, troubleshooting, and maintenance work. This makes it highly useful in industrial control systems where regular circuit testing and maintenance are required. The disconnect function improves safety, reduces downtime, and makes troubleshooting faster and more convenient.
Designed for DIN rail mounting, the SB Smart CPDLG1.5 allows quick and secure installation in standard electrical control panels and switchgear assemblies. Its compact modular design saves panel space while improving wiring organization and accessibility during maintenance.
SB Smart CPDLG1.5 is widely used in industrial control panels, PLC systems, instrumentation circuits, automation systems, switchgear assemblies, signal wiring applications, process industries, OEM electrical systems, machine control circuits, and industrial electrical installations where safe disconnect functionality and secure conductor termination are required.
With its combination of push-in spring clamp technology, disconnect functionality, compact modular design, high conductivity construction, DIN rail mounting, durable insulated housing, and maintenance-free performance, SB Smart CPDLG1.5 is an ideal disconnect terminal block for modern industrial electrical wiring systems.
| Specification | Details |
|---|---|
| Product Name | SB Smart CPDLG1.5 |
| Model Number | CPDLG1.5 |
| Product Type | Push-In Disconnect Terminal Block |
| Conductor Capacity | 1.5 sq.mm |
| Connection Type | Push-In Spring Clamp |
| Terminal Function | Disconnect / Isolation |
| Rated Voltage | 500V |
| Rated Current | 17.5A |
| Rated Surge Voltage | 6KV |
| Housing Material | Polyamide |
| Current Bar Material | Copper Alloy |
| Wire Entry Orientation | Top Entry |
| Mounting Type | DIN 35 Rail |
| Product Color | Grey |
| Pollution Degree | 3 |
| Operating Temperature | Industrial Standard |
| Flame Resistance | Self Extinguishing Material |
| Application | Signal Isolation / Control Wiring |
| Brand | SB Smart |
Push-in spring clamp technology allows quick wire insertion, reducing installation time and labor cost.
Integrated disconnect slide makes testing and maintenance easier without disturbing complete wiring.
Built with high conductivity copper alloy for stable current transfer and dependable circuit continuity.
Modular body design helps save valuable space in electrical control panels.
Spring clamp technology eliminates frequent tightening and reduces maintenance issues.
Polyamide insulated housing offers heat resistance, flame resistance, and electrical safety in demanding environments.
Perfect for PLC panels, instrumentation wiring, automation systems, and industrial control circuits.
