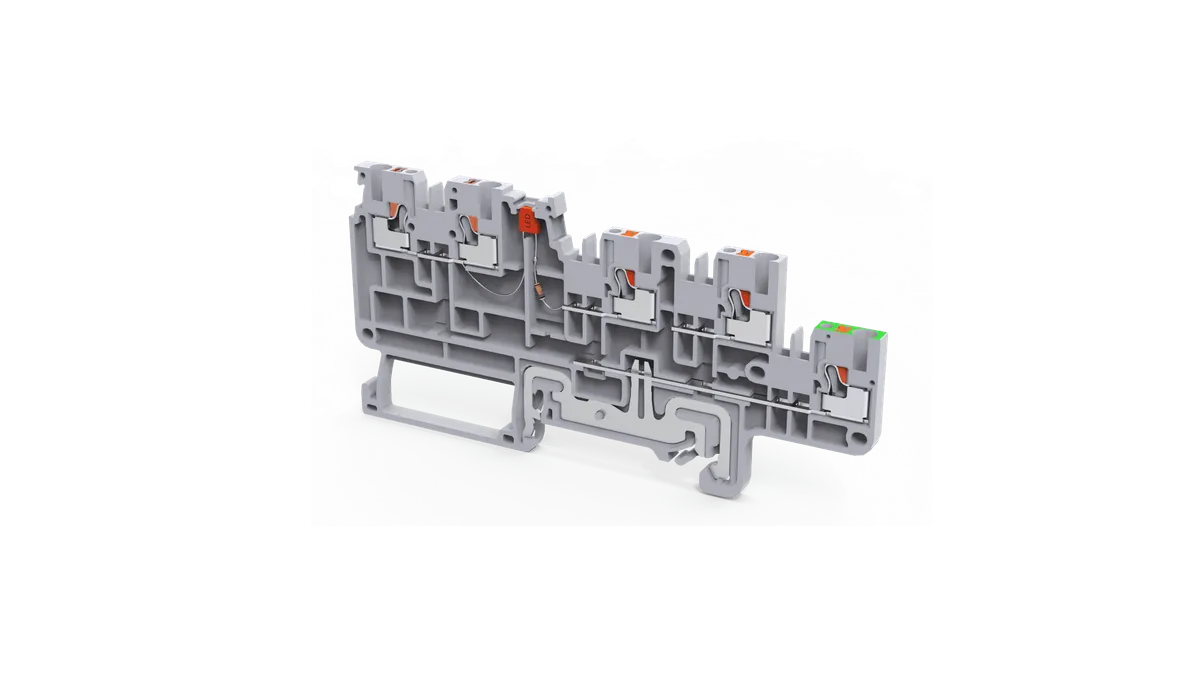

The CPSTG1.5/4L6-60V is a 1.5 sq.mm push-in sensor and actuator terminal block with integrated grounding connection and LED indication (6–60V), specially designed for industrial automation systems, PLC control panels, machine wiring, instrumentation circuits, and signal monitoring applications. This terminal block combines sensor wiring, actuator connection, grounding continuity, and LED voltage indication in one compact unit, making it a practical solution for modern industrial control panel wiring.
One of the major advantages of the CPSTG1.5/4L6-60V is its built-in LED indication for 6–60V circuits. The LED provides instant visual confirmation of voltage presence or signal activity, helping technicians quickly monitor circuit status during operation, troubleshooting, and maintenance. In industrial automation panels, this visual indication reduces fault-finding time and improves diagnostic efficiency, especially in PLC and machine control systems.
The 4-wire sensor and actuator terminal configuration allows compact and organized wiring of field devices such as sensors, proximity switches, actuators, signal transmitters, and control inputs. Instead of using separate terminals for each signal path, the CPSTG1.5/4L6-60V provides a compact integrated solution that helps save space and improve panel wiring efficiency in high-density industrial control cabinets.
Another important feature of this model is its integrated grounding connection, which ensures protective earth continuity within the same compact terminal block body. This reduces the need for separate ground terminals, simplifies panel layout, and improves electrical safety in automation systems and industrial control applications. Ground continuity is especially critical in machine control panels, instrumentation systems, and sensitive signal wiring circuits.
The push-in spring clamp connection technology makes wiring faster and more secure compared to conventional screw terminals. Electricians can directly insert conductors into the terminal without screw tightening, reducing installation time and labor effort. The spring clamp mechanism maintains constant conductor pressure, ensuring vibration-resistant connection and reducing the risk of loose wiring during long-term industrial operation.
The slim 3.5 mm width makes this terminal block ideal for compact control panel installations where space optimization is important. Despite its narrow profile, it provides efficient multi-function wiring capability, making it suitable for high-density PLC cabinets, OEM machine panels, and industrial automation enclosures.
Manufactured using high-quality Polyamide insulated housing, the CPSTG1.5/4L6-60V provides excellent dielectric strength, heat resistance, and mechanical durability. Its rugged construction ensures reliable performance under continuous electrical load, vibration, and industrial operating conditions. The insulated housing also improves operator safety by minimizing accidental contact risk.
The terminal block supports 0.2 mm² to 1.5 mm² stranded conductors and up to 2.5 mm² solid conductors, with a 13.5A rated current capacity and 6–60V LED indication range, making it suitable for industrial signal circuits, sensor wiring, automation panels, and low-voltage monitoring systems.
The CPSTG1.5/4L6-60V is widely used in:
With its LED voltage indication, push-in wiring technology, integrated grounding connection, compact design, and industrial-grade reliability, the CPSTG1.5/4L6-60V is an efficient solution for modern industrial electrical wiring applications.
