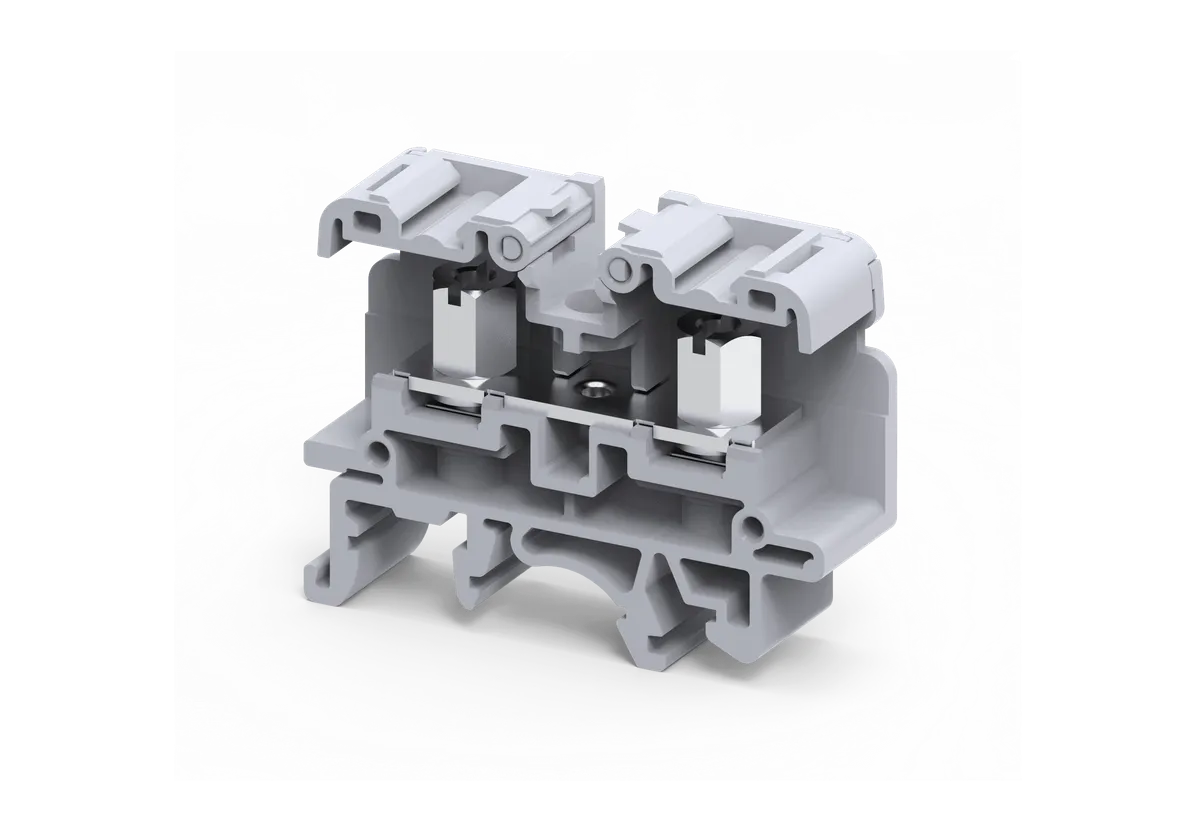

The CSB4/N4USH Stud Type Feed Through Terminal Block with Stud Shield is a heavy-duty industrial stud type feed through terminal block designed for secure lug-based conductor termination, safe stud protection, reliable electrical continuity, and organized industrial panel wiring. It is specially developed for industrial electrical applications where high current handling, vibration-resistant conductor holding, secure stud connection, and touch-safe shielded protection are essential.
Unlike conventional screw clamp terminals, the CSB4/N4USH uses a stud-based conductor termination system, where conductors fitted with ring or fork lugs are mounted securely on a threaded stud and tightened using a nut arrangement. In addition, this model comes with a stud shield protection cover, which improves operator safety by preventing accidental contact with live stud parts.
In industrial power distribution systems, machine wiring assemblies, switchboards, railway electrical systems, generator panels, motor control centers, and heavy-duty automation systems, conductor connections must remain stable and protected against vibration, mechanical stress, and accidental contact. The CSB4/N4USH solves these issues by providing a shielded stud type terminal connection for safe industrial power wiring.
Its rugged construction, secure lug termination design, protective stud shield, and DIN rail mounting compatibility make it an ideal choice for industrial electricians, panel builders, and automation engineers working in critical electrical power applications.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Industrial electrical systems require:
✔ Secure lug-based conductor termination
✔ High current power transfer
✔ Vibration-resistant electrical connection
✔ Stud shield touch protection
✔ Strong mechanical wire holding
✔ Better maintenance safety
Without a shielded stud terminal block, systems may face:
◆ Loose conductor connections
◆ Voltage drop issues
◆ Accidental live stud contact risk
◆ Overheating problems
◆ Vibration-related failures
◆ Maintenance difficulties
The CSB4/N4USH solves these issues by providing a secure stud type feed through electrical connection with safety shield protection.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CSB4/N4USH works on a shielded stud connection feed through terminal principle.
Its working design includes:
✔ Lug based conductor termination
✔ Threaded stud mounting system
✔ Nut tightened secure conductor locking
✔ Internal conductive feed through current path
✔ Stud shield protective cover
✔ Stable electrical continuity
This creates a mechanically secure, protected, and low resistance electrical connection in industrial applications.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
◆ Stud type feed through terminal block
◆ Shielded stud protection cover
◆ Secure lug based conductor mounting
◆ Heavy-duty threaded stud locking
◆ High current industrial support
◆ Touch-safe shield design
◆ Side entry wiring structure
◆ DIN rail mounting compatibility
◆ High insulation housing
◆ Vibration resistant conductor holding
◆ Easy installation support
◆ Long industrial service life
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CSB4/N4USH improves electrical safety by providing:
✔ Stud shield touch protection
✔ Secure conductor locking
✔ Better current transfer reliability
✔ Reduced overheating risk
✔ Improved maintenance safety
✔ Reliable industrial power connection
Its shielded stud design reduces accidental live contact risk during servicing.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CSB4/N4USH is manufactured using industrial-grade polyamide insulated housing with strong conductive stud hardware and protective stud shield.
Its construction provides:
✔ High mechanical strength
✔ Durable insulated body
✔ Secure stud shield protection
✔ Strong lug tightening support
✔ Corrosion resistant metal parts
✔ Long industrial service life
Its rugged industrial construction supports:
✔ Mechanical stress resistance
✔ Vibration resistance
✔ Heat resistance
✔ Continuous industrial operation
✔ Reliable electrical performance
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CSB4/N4USH improves panel wiring by providing:
✔ Better lug based conductor organization
✔ Cleaner industrial wiring layout
✔ Faster maintenance access
✔ Safer electrical inspection
✔ Reliable power distribution path
✔ Professional electrical panel finishing
| Specification | Details |
|---|---|
| Product Model | CSB4/N4USH |
| Product Type | Stud Type Feed Through Terminal Block with Shield |
| Terminal Function | Secure Lug Based Power Connection |
| Rated Current | 57 A |
| Rated Voltage | 1100 V |
| Rated Surge Voltage | 8 KV |
| Conductor Capacity | 10 sq.mm |
| Stud Size | M4 |
| Tightening Torque | 1.2 Nm |
| Connection Type | Stud Connection |
| Shield Type | Stud Protection Cover |
| Wire Entry Type | Side Entry |
| Mounting Type | DIN 32 / DIN 35 / DIN 35-15 Rail |
| Housing Material | Polyamide |
| Color | Grey |
| Structural Design | Shielded Feed Through Terminal Block |
| Mechanical Strength | High |
| Insulation Property | Non-Conductive |
| Heat Resistance | Industrial Grade |
| Moisture Resistance | Yes |
| Dust Resistance | Industrial Grade |
| Corrosion Resistance | Yes |
| Vibration Stability | Excellent |
| Mounting Stability | Secure DIN Rail Fitment |
| Current Transfer | High Conductivity |
| Safety Advantage | Touch Safe Stud Shield Design |
| Maintenance Benefit | Safer Inspection & Reliable Servicing |
| Service Life | Long Industrial Use |
| Main Usage | Heavy Duty Protected Power Connections |
| Panel Benefit | Organized Secure Industrial Wiring |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
► Shielded stud touch-safe protection
► Secure lug-based conductor holding
► Excellent vibration resistant performance
► High current industrial support
► Better electrical safety
► Reliable long-term connection
► Easy maintenance support
► Professional industrial panel wiring solution
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✔ PLC Panels
✔ Control Panels
✔ Switchboards
✔ Power Distribution Systems
✔ Motor Control Panels
✔ Generator Panels
✔ Railway Electrical Systems
✔ Heavy Machinery Wiring
✔ OEM Electrical Panels
✔ Industrial Automation Systems
