Product Description

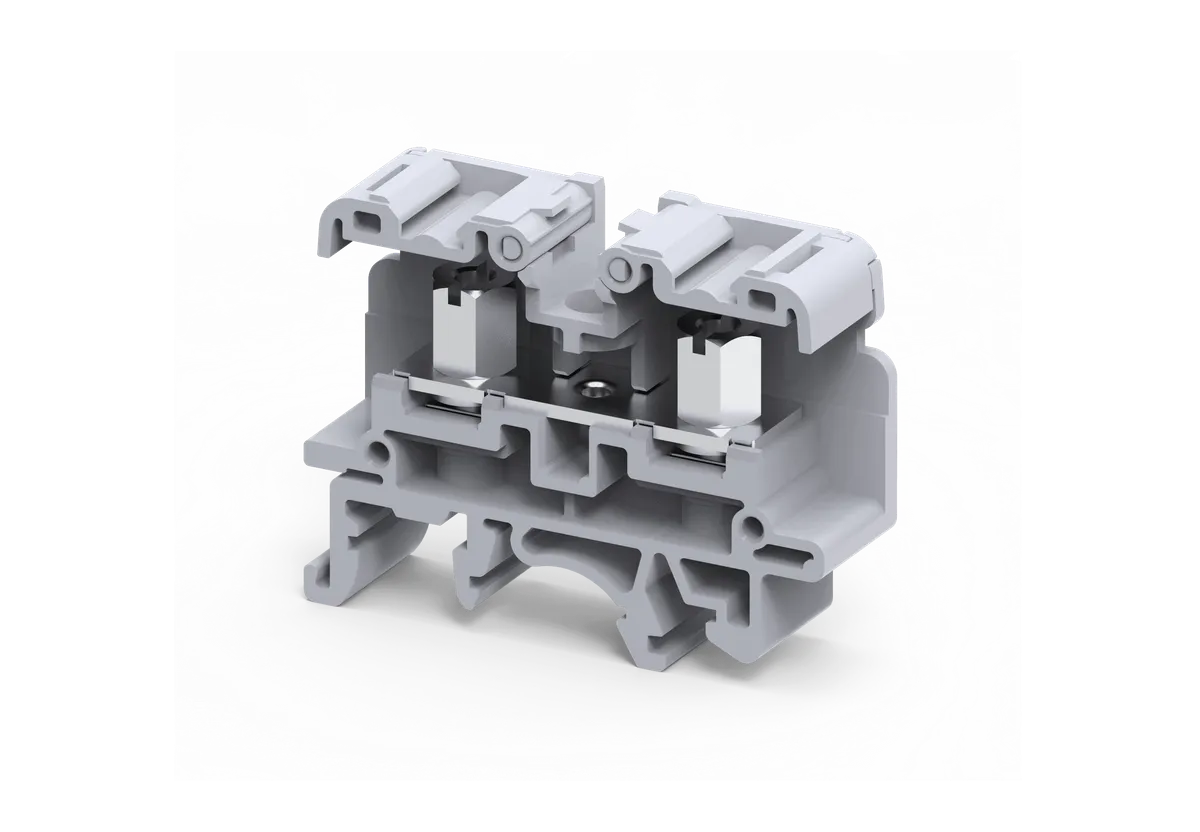

The CSB4/N4USHR Stud Type Feed Through Terminal Block with Stud Shield is a heavy-duty industrial stud type feed through terminal block designed for secure lug-based conductor termination, safe stud protection, reliable electrical continuity, and organized industrial panel wiring. It is specially developed for industrial electrical applications where high current handling, vibration-resistant conductor holding, secure stud connection, and touch-safe shielded protection are essential.

Unlike conventional screw clamp terminals, the CSB4/N4USHR uses a stud-based conductor termination system, where conductors fitted with ring or fork lugs are mounted securely on a threaded stud and tightened using a nut arrangement. In addition, this model comes with a stud shield protection cover, which improves operator safety by preventing accidental contact with live stud parts.

In industrial power distribution systems, machine wiring assemblies, switchboards, railway electrical systems, generator panels, motor control centers, and heavy-duty automation systems, conductor connections must remain stable and protected against vibration, mechanical stress, and accidental contact. The CSB4/N4USHR solves these issues by providing a shielded stud type terminal connection for safe industrial power wiring.

Its red color identification provides visual differentiation for phase circuits, positive DC circuits, or dedicated power circuit marking applications.

Its rugged construction, secure lug termination design, protective stud shield, and DIN rail mounting compatibility make it an ideal choice for industrial electricians, panel builders, and automation engineers working in critical electrical power applications.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

★ Why This Product Is Used

Industrial electrical systems require:

✔ Secure lug-based conductor termination
✔ High current power transfer
✔ Vibration-resistant electrical connection
✔ Stud shield touch protection
✔ Circuit color identification
✔ Better maintenance safety

Without a shielded stud terminal block, systems may face:

◆ Loose conductor connections
◆ Voltage drop issues
◆ Accidental live stud contact risk
◆ Overheating problems
◆ Vibration-related failures
◆ Maintenance difficulties

The CSB4/N4USHR solves these issues by providing a secure stud type feed through electrical connection with safety shield protection.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

★ Functional Working Design

The CSB4/N4USHR works on a shielded stud connection feed through terminal principle.

Its working design includes:

✔ Lug based conductor termination
✔ Threaded stud mounting system
✔ Nut tightened secure conductor locking
✔ Internal conductive feed through current path
✔ Stud shield protective cover
✔ Stable electrical continuity

This creates a mechanically secure, protected, and low resistance electrical connection in industrial applications.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

★ Key Functional Features

◆ Stud type feed through terminal block
◆ Shielded stud protection cover
◆ Secure lug based conductor mounting
◆ Heavy-duty threaded stud locking
◆ High current industrial support
◆ Touch-safe shield design
◆ Red industrial identification color
◆ Side entry wiring structure
◆ DIN rail mounting compatibility
◆ High insulation housing
◆ Vibration resistant conductor holding
◆ Long industrial service life

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

★ Identification & Safety Advantage

The CSB4/N4USHR improves electrical safety by providing:

✔ Stud shield touch protection
✔ Secure conductor locking
✔ Better current transfer reliability
✔ Reduced overheating risk
✔ Improved maintenance safety
✔ Reliable industrial power connection

Its red color coding improves phase / positive circuit visibility and electrical grouping.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

★ Mechanical Construction Quality

The CSB4/N4USHR is manufactured using industrial-grade polyamide insulated housing with strong conductive stud hardware and protective stud shield.

Its construction provides:

✔ High mechanical strength
✔ Durable insulated body
✔ Secure stud shield protection
✔ Strong lug tightening support
✔ Corrosion resistant metal parts
✔ Long industrial service life

Its rugged industrial construction supports:

✔ Mechanical stress resistance
✔ Vibration resistance
✔ Heat resistance
✔ Continuous industrial operation
✔ Reliable electrical performance

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

★ Wiring & Panel Organization Benefits

The CSB4/N4USHR improves panel wiring by providing:

✔ Better lug based conductor organization
✔ Cleaner industrial wiring layout
✔ Faster maintenance access
✔ Safer electrical inspection
✔ Circuit color identification
✔ Professional electrical panel finishing
