Product Description

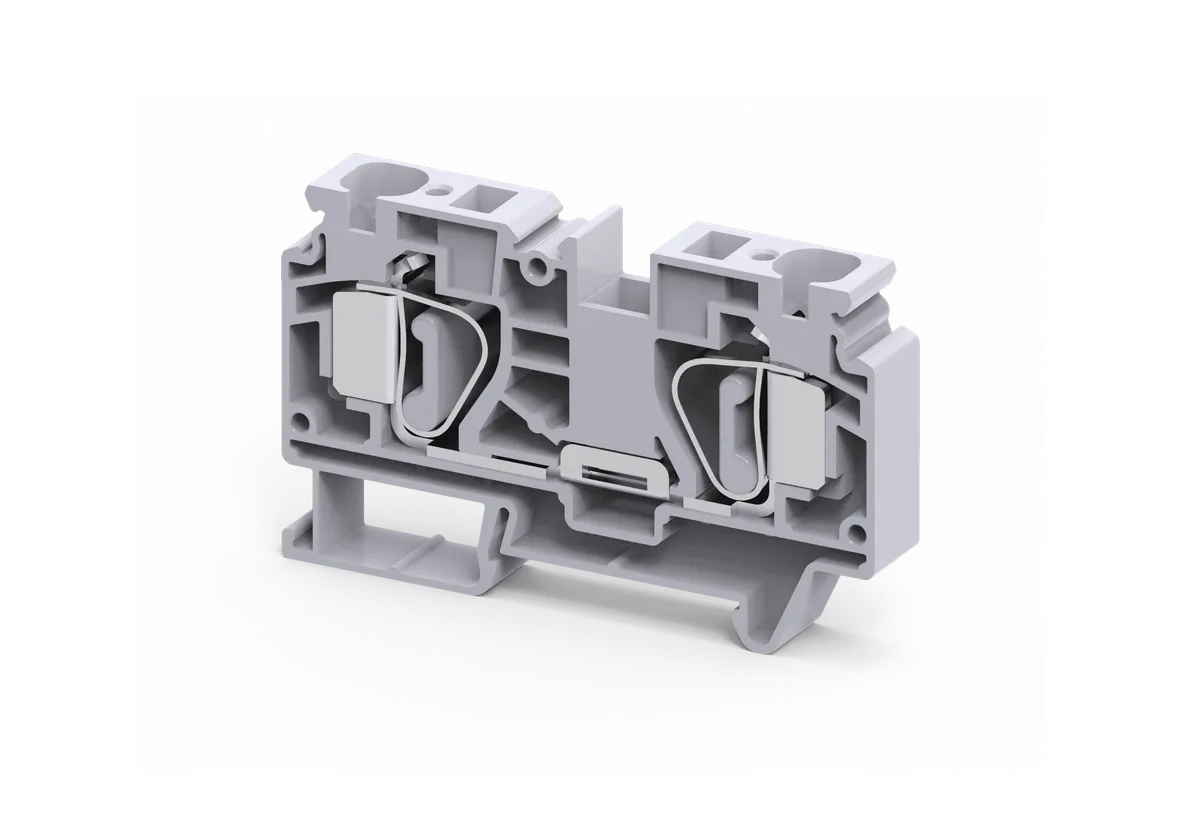

The CSC16T Feed Through Spring Clamp Terminal Block is a high-performance electrical connection component designed for secure wire termination in industrial, commercial, and control panel applications where safe and reliable conductor connection is essential. It is specially engineered to provide stable electrical continuity between connected conductors while improving wiring organization and reducing installation complexity inside electrical panels. With its spring clamp connection technology, heavy-duty current carrying capacity, and compact DIN rail mounting design, this terminal block is widely used in switchgear systems, automation panels, machine wiring systems, distribution boards, and industrial electrical installations where maintenance-free and vibration-resistant wire connections are required.

In industrial electrical installations, wire termination reliability is critical for maintaining system safety and long-term performance. Traditional screw clamp terminal blocks may require periodic tightening and can become loose in vibration-prone applications. The CSC16T Feed Through Terminal Block solves this issue by using a spring clamp connection mechanism, which automatically applies continuous contact pressure on the conductor. This creates a secure electrical connection without the need for retightening, making it a dependable solution for industrial environments where stable conductor retention and maintenance-free operation are important.

One of the major advantages of the CSC16T Terminal Block is its feed through connection design, which allows conductors to be safely connected from one side to the other through a secure conductive current bar. This creates clean and organized wiring layouts inside electrical panels while reducing unnecessary cable joints and wire clutter. It also improves electrical continuity and makes panel wiring more professional and easier to maintain for electricians and panel builders.

The CSC16T is designed for 16 sq.mm conductor capacity and supports a rated current of 76A with a rated voltage of 800V, making it suitable for industrial power circuits, machine wiring systems, automation panels, and control panel applications where higher current carrying capability and dependable electrical performance are required. Its robust electrical design ensures stable conductor termination and safe current transfer even in demanding industrial environments.

A key feature of this terminal block is its spring clamp technology, which creates a secure wire connection by applying continuous spring pressure to the conductor. This torque-independent design eliminates the need for manual retightening and provides a vibration-resistant electrical connection. It also reduces the chances of loose wiring, overheating, voltage drop, and electrical faults during long-term use, making it ideal for industrial applications exposed to mechanical stress or continuous operation.

The body of the CSC16T Feed Through Terminal Block is manufactured using high-quality polyamide insulated housing, which offers excellent electrical insulation, heat resistance, impact strength, and long service life. The durable housing protects conductive parts from accidental contact and improves overall electrical safety during operation. Polyamide construction also ensures dependable performance in industrial environments exposed to temperature changes and mechanical stress.

Its top-entry wire connection orientation allows easy conductor insertion and organized cable routing inside electrical panels. This feature improves installation convenience and reduces wiring complexity, especially in compact control panel assemblies. The spring clamp mechanism is operated using a screwdriver, allowing quick wire insertion and secure conductor locking without complicated installation procedures. This reduces installation time and improves wiring accuracy for professional panel building applications.

The CSC16T supports DIN 35 and DIN 35-15 rail mounting, making installation fast, simple, and compatible with standard industrial electrical panel systems. DIN rail mounting improves component organization, reduces installation time, and allows easy replacement or maintenance when required. This mounting flexibility makes the terminal block suitable for professional industrial electrical installations and modern control panel applications.

Electrical safety is an important requirement in industrial wiring systems, and the CSC16T is designed with a rated surge voltage of 8KV and pollution degree 3, making it suitable for electrical environments exposed to voltage disturbances, dust, or industrial contaminants. These safety features improve electrical reliability and support safe long-term operation in demanding applications.
