Product Description

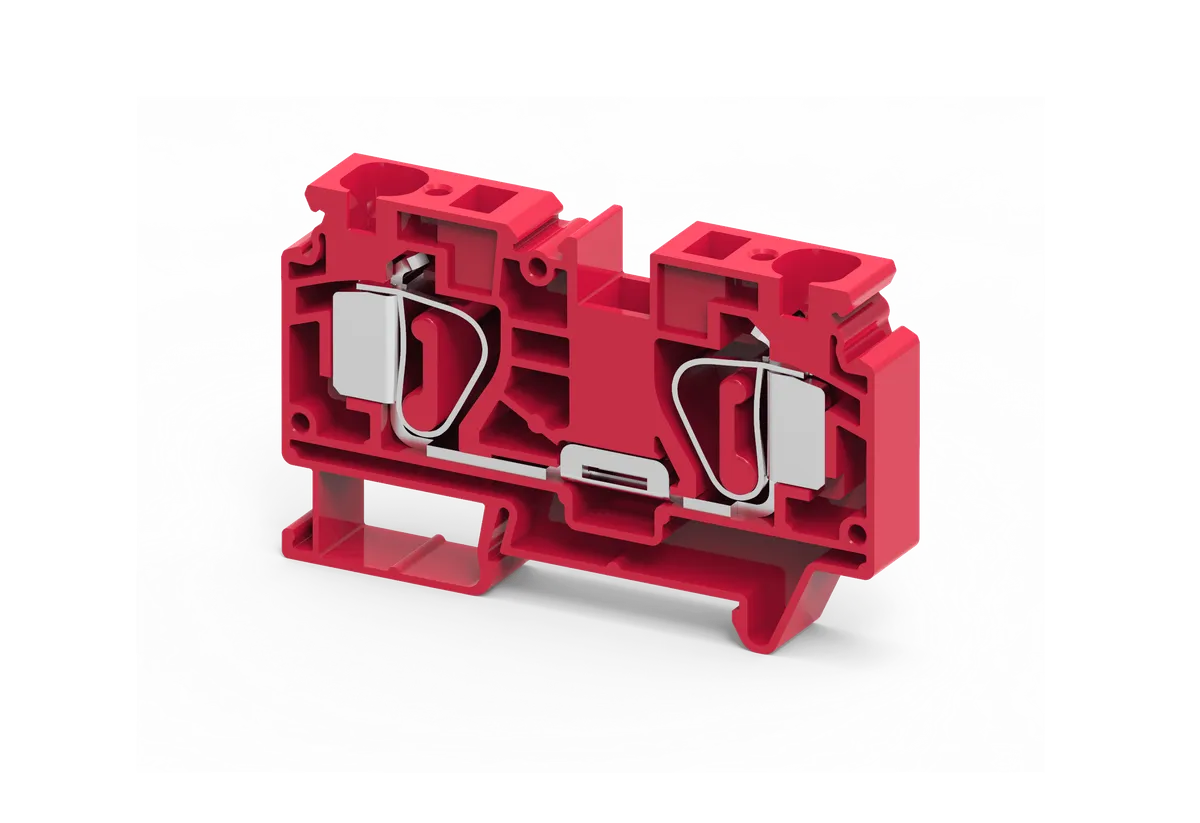

The CSC16TR Feed Through Spring Clamp Terminal Block is a heavy-duty electrical connection solution specially designed for industrial and commercial applications where safe, secure, and maintenance-free wire termination is essential. This high-performance terminal block is engineered to provide stable electrical continuity between connected conductors while improving wiring organization inside control panels, switchgear systems, automation cabinets, machine wiring applications, and electrical distribution boards. With its 16 sq.mm conductor capacity, spring clamp connection technology, and compact DIN rail mounting design, this terminal block is an ideal solution for professional electricians and panel builders who require reliable electrical connectivity in demanding industrial environments.

In industrial electrical systems, wire termination quality plays a critical role in maintaining system safety and long-term reliability. Traditional screw clamp terminal blocks often require periodic retightening and may become loose in vibration-prone applications. The CSC16TR Feed Through Terminal Block eliminates this issue by using an advanced spring clamp connection mechanism that applies continuous contact pressure on the conductor. This ensures a secure wire connection without the need for regular maintenance, making it a dependable choice for industrial applications where vibration resistance and maintenance-free performance are important.

One of the key features of the CSC16TR Terminal Block is its feed through connection design, which allows conductors to be connected securely from one side to the other through a conductive current bar. This design improves electrical continuity and helps create a cleaner and more organized wiring layout inside electrical panels. By reducing unnecessary wire joints and cable clutter, it also makes panel maintenance easier and improves installation efficiency for electricians and panel builders. The red color housing also helps in quick circuit identification in color-coded electrical systems.

The CSC16TR is designed for 16 sq.mm conductor capacity and supports a rated current of 76A with a rated voltage of 800V, making it suitable for industrial power circuits, machine wiring systems, automation panels, switchgear systems, and electrical distribution boards. Its robust electrical design ensures safe current transfer and dependable conductor retention in industrial environments where higher current carrying capacity and reliable performance are essential.

A major advantage of this terminal block is its spring clamp wire connection technology, which provides a torque-independent and vibration-resistant electrical connection. The spring clamp continuously applies pressure on the conductor, ensuring secure wire retention and reducing the risk of loose wiring, overheating, voltage drop, or electrical faults during long-term use. This makes the CSC16TR ideal for industrial applications exposed to mechanical vibration, continuous operation, or harsh environmental conditions.

The body of the CSC16TR Feed Through Spring Clamp Terminal Block is manufactured using high-quality polyamide insulated housing, which offers excellent electrical insulation, heat resistance, impact strength, and long service life. The durable insulated housing protects conductive parts from accidental contact and improves electrical safety during operation. Polyamide construction also ensures dependable performance in industrial environments exposed to temperature changes and mechanical stress.

Its top-entry wire connection orientation allows easy conductor insertion and organized cable routing inside electrical panels. The spring clamp mechanism is operated using a screwdriver, allowing quick wire insertion and secure conductor locking without complicated installation steps. This reduces installation time and improves wiring accuracy, making it highly suitable for professional industrial panel building applications.

The CSC16TR supports DIN 35 and DIN 35-15 rail mounting, allowing fast installation and compatibility with standard industrial electrical panel systems. DIN rail mounting improves component organization, reduces installation time, and allows easy maintenance or replacement when required. This mounting flexibility makes the terminal block suitable for switchgear systems, automation panels, machine wiring systems, and industrial control cabinets where safe and reliable wire termination is required.
