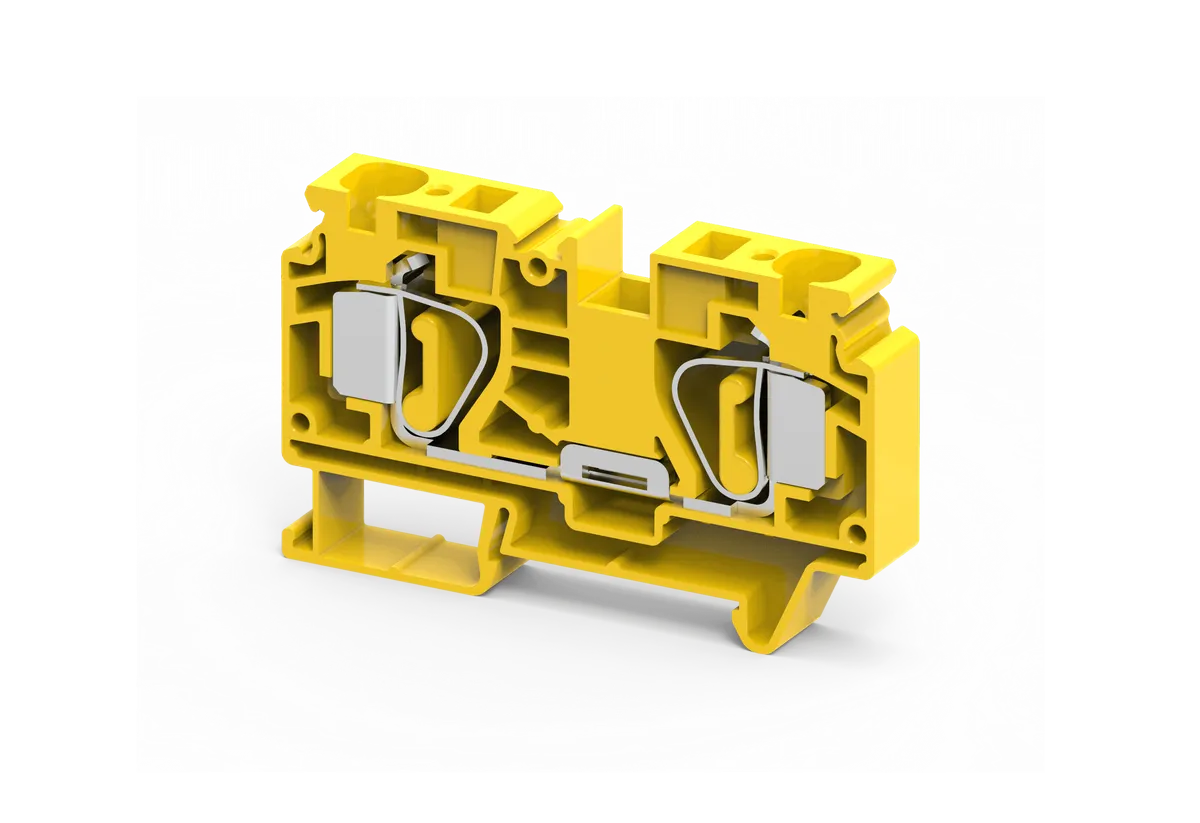

CSC16TY is a heavy-duty 16 sq.mm feed through spring clamp terminal block designed to provide secure, vibration-resistant, and maintenance-free electrical connections in industrial power distribution and control applications. Built for demanding electrical environments, this terminal block combines high current carrying capability with compact installation, making it ideal for industrial panels, automation systems, switchgear assemblies, and machine wiring installations. The yellow housing variant supports improved visual identification and organized panel layouts.
This terminal block uses spring clamp connection technology, which delivers consistent conductor pressure without requiring periodic tightening. Unlike conventional screw clamp systems that may loosen over time because of vibration or thermal expansion, the spring mechanism automatically maintains stable contact force for reliable electrical continuity. This makes CSC16TY particularly suitable for industrial environments where uptime and connection reliability are critical.
The terminal block is designed with a feed through configuration, allowing conductors to be connected efficiently for uninterrupted electrical transmission across circuits. Feed through terminals are widely used in electrical distribution applications where organized conductor routing and dependable current transfer are essential.
A major advantage of CSC16TY is its top-entry conductor design, which allows convenient wire insertion and improved access inside compact electrical enclosures. During installation, a standard screwdriver is used to open the spring mechanism. Once the conductor is inserted and the tool is removed, the internal spring automatically clamps the conductor securely onto the current bar, creating a stable and low-resistance electrical connection.
The terminal block supports conductor sizes from 1.5 sq.mm to 16 sq.mm, making it highly versatile across industrial wiring requirements. Compatibility with stranded conductors and ferrule-equipped wires improves installation flexibility across power and control circuits.
Engineered for DIN rail mounting, CSC16TY can be installed on standard DIN 35 and DIN 35-15 rails, enabling fast panel assembly and efficient use of cabinet space. DIN rail compatibility also simplifies maintenance and future expansion of electrical systems.
With a rated voltage of 800V and rated current of 76A, the terminal block supports high-capacity industrial electrical applications requiring dependable current transmission and secure insulation performance. These ratings make the product suitable for control panels, power distribution systems, and industrial automation installations. Rated current values are specified for copper conductors.
The housing is manufactured using industrial-grade polyamide, offering excellent electrical insulation, mechanical durability, dimensional stability, and resistance to demanding operating environments. Polyamide construction supports long service life under vibration, temperature variation, and continuous industrial use.
Its compact 12 mm width enables high-density wiring while maintaining accessibility for installation and servicing. The optimized design contributes to cleaner panel layouts, reduced wiring congestion, and improved maintenance efficiency.
CSC16TY is widely applied in industrial control panels, switchgear systems, PLC panels, electrical distribution cabinets, machine building, instrumentation systems, OEM equipment, process automation, and industrial power management installations where secure and maintenance-free conductor termination is required.
Because of its spring-operated mechanism and compact structure, this terminal block helps reduce installation effort, improve operational reliability, and support long-term electrical performance in demanding industrial environments.
| Specification | Details |
|---|---|
| Product Code | CSC16TY |
| Product Type | Feed Through Terminal Block |
| Connection Technology | Spring Clamp |
| Terminal Function | Feed Through |
| Rated Voltage | 800 V |
| Rated Current | 76 A |
| Housing Material | Polyamide |
| Wire Entry Orientation | Top Entry |
| Mounting Type | DIN 35 / DIN 35-15 Rail |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Conductor Range | 1.5–16 sq.mm |
| AWG Range | 16–4 AWG |
| Stripping Length | 20 mm |
| Length | 82 mm |
| Width | 12 mm |
Specifications compiled from published technical references.
