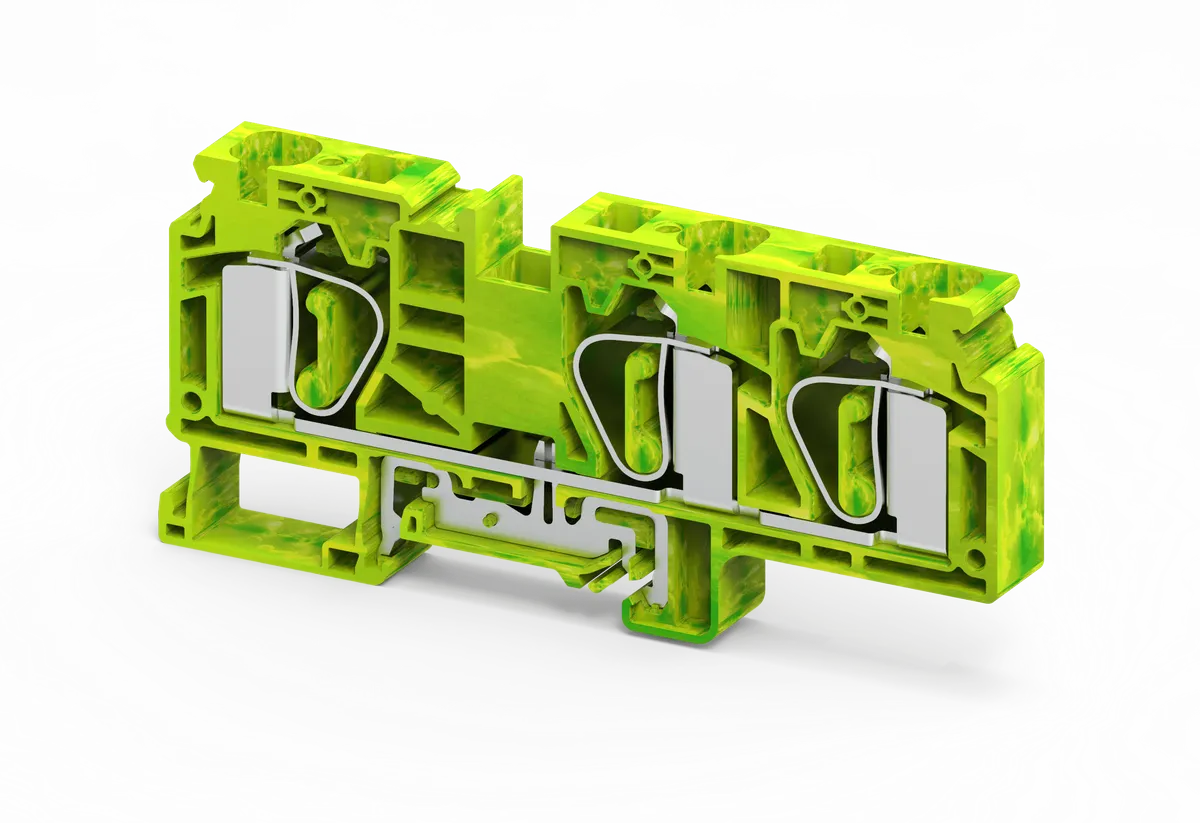

CSCG16/3T is a high-performance 16 sq.mm three-conductor grounding terminal block designed for safe grounding, structured conductor management, and reliable protective earth connections in industrial electrical systems. Built for DIN rail mounting applications, this terminal block provides dependable grounding continuity while supporting efficient panel organization and simplified installation. It is commonly used in control panels, switchgear assemblies, industrial machinery, automation systems, electrical cabinets, and power distribution installations.
The terminal block is developed specifically for protective earth (PE) and grounding applications, where maintaining a low-resistance and dependable grounding path is essential for personnel safety, equipment protection, and stable system performance. Grounding terminal blocks play a critical role in directing fault current safely to ground and minimizing electrical hazards within industrial installations.
CSCG16/3T features a three-conductor grounding configuration, enabling multiple grounding conductors to be terminated within a single compact module. This arrangement improves panel organization and reduces the requirement for additional grounding accessories or separate interconnection methods.
The terminal block uses spring clamp connection technology, providing vibration-resistant and maintenance-free conductor termination. Unlike traditional screw-based systems that may require periodic retightening, spring clamp technology maintains continuous clamping force over long periods of operation. This ensures stable electrical contact even in environments exposed to mechanical vibration, temperature changes, and continuous industrial operation.
Its top-entry conductor design supports fast wire insertion and easier cable routing inside compact electrical enclosures. During installation, the spring mechanism is opened using a standard screwdriver. After conductor insertion, the internal spring automatically applies pressure to secure the wire against the current bar, creating a stable and dependable electrical connection.
Designed for DIN rail mounting, CSCG16/3T is compatible with standard DIN 35 and DIN 35-15 rails. DIN rail installation simplifies panel construction, supports modular expansion, and allows quick replacement during maintenance activities.
The terminal block supports conductor sizes up to 16 sq.mm, making it suitable for industrial grounding networks that require dependable current carrying capability and robust conductor retention. Compatibility with stranded conductors and ferrule-based wiring increases installation flexibility across different electrical standards.
The grounding contact system is engineered to establish a reliable electrical interface directly with the DIN rail, ensuring continuous protective earth connectivity throughout the panel structure. This arrangement helps maintain grounding integrity and supports compliance with industrial wiring practices.
Manufactured using industrial-grade polyamide insulation material, CSCG16/3T offers excellent insulation characteristics together with strong mechanical durability and dimensional stability. The housing material is designed to perform reliably under demanding environmental conditions including vibration, thermal cycling, and long operating hours.
With a rated voltage of 1000V and a rated current capacity of 76A, the terminal block supports grounding and conductor management requirements across industrial electrical applications. The terminal block also offers high surge resistance and dependable insulation performance under industrial operating conditions.
Its compact dimensions allow efficient use of panel space while maintaining accessibility for installation and servicing. The integrated grounding design contributes to cleaner panel layouts and improved maintenance efficiency.
CSCG16/3T is widely used in industrial control panels, automation systems, machine building, electrical cabinets, switchgear assemblies, OEM manufacturing, process control installations, power distribution systems, and grounding networks where secure and organized grounding connections are required.
The combination of high conductor capacity, spring clamp operation, compact construction, and reliable grounding performance makes CSCG16/3T a practical solution for modern industrial electrical installations.
| Specification | Details |
|---|---|
| Product Code | CSCG16/3T |
| Product Type | Grounding Terminal Block |
| Terminal Function | Protective Earth (PE) |
| Connection Technology | Spring Clamp |
| Configuration | 3 Conductor |
| Rated Voltage | 1000 V |
| Rated Current | 76 A |
| Conductor Capacity | Up to 16 sq.mm |
| Wire Entry Orientation | Top Entry |
| Housing Material | Polyamide |
| Mounting Type | DIN 35 / DIN 35-15 Rail |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Connection Method | Spring Operated |
| Grounding Method | DIN Rail Ground Contact |
| Application Category | Industrial Grounding |
CSCG16/3T is suitable for:
Supports dependable protective earth continuity.
Spring clamp design eliminates periodic retightening.
Top-entry access enables efficient conductor insertion.
Three-conductor configuration reduces wiring congestion.
Stable conductor retention improves operational reliability.
