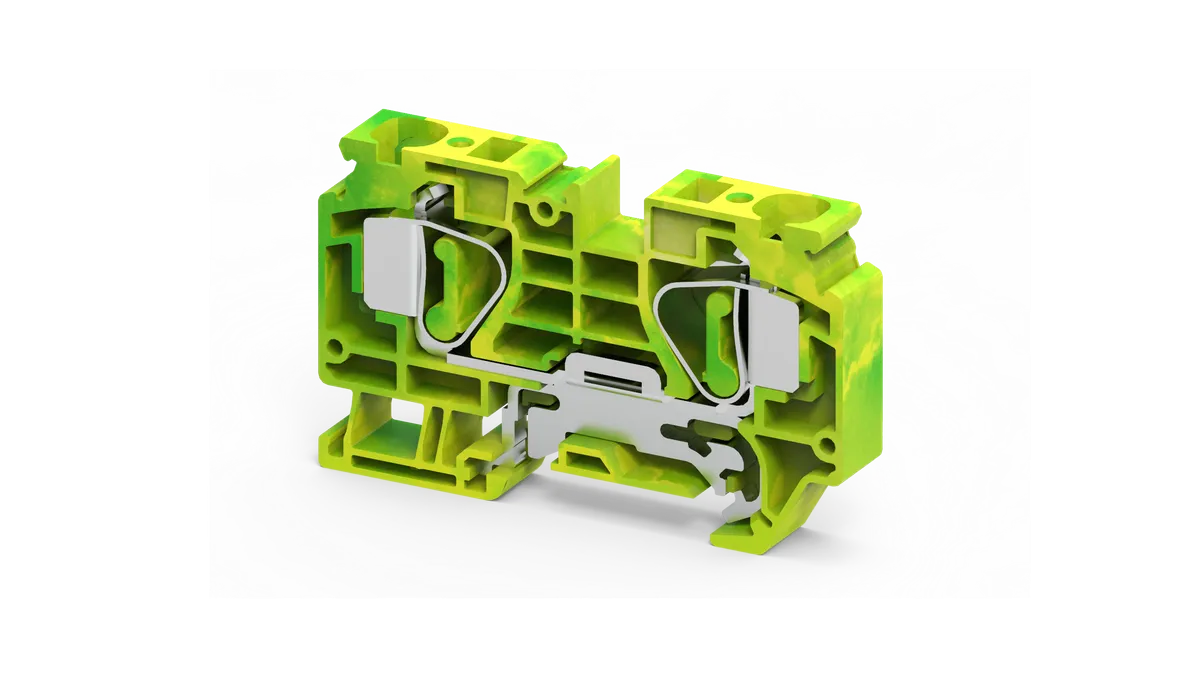

CSCG16T is a high-capacity 16 sq.mm spring clamp grounding terminal block designed for secure grounding connections and dependable protective earth continuity in industrial electrical systems. Developed for DIN rail mounting applications, this grounding terminal provides reliable conductor termination, efficient panel organization, and long-term electrical performance in demanding industrial environments. It is widely used in control panels, switchgear assemblies, machine wiring systems, automation installations, electrical cabinets, and industrial power distribution networks.
Grounding plays a critical role in electrical safety by providing a controlled path for fault current and protecting both personnel and equipment from electrical hazards. CSCG16T is specifically engineered for protective earth (PE) applications, ensuring stable and low-resistance grounding performance across industrial installations.
The terminal block uses spring clamp connection technology, which delivers secure conductor retention without the need for periodic retightening. Unlike traditional screw clamp systems that may loosen over time because of vibration or thermal cycling, the internal spring mechanism continuously maintains clamping force and ensures reliable electrical contact.
This spring clamp design also improves installation speed and reduces maintenance requirements. During wiring, the clamp mechanism is opened using a screwdriver and automatically secures the conductor after insertion, creating a firm and vibration-resistant electrical connection.
CSCG16T features a top-entry conductor insertion design, allowing easier access during wiring and maintenance operations. Top-entry access supports cleaner cable routing and improves installation efficiency in compact industrial enclosures.
Designed for DIN rail mounting, the terminal block supports installation on DIN 35 and DIN 35-15 rails, enabling compatibility with standardized electrical panel construction methods. DIN rail mounting also simplifies future expansion and replacement activities.
The grounding mechanism establishes direct electrical contact with the DIN rail to create a continuous grounding path across the panel assembly. This arrangement supports reliable grounding continuity and organized protective earth distribution.
CSCG16T supports conductor sizes up to 16 sq.mm, making it suitable for industrial grounding networks and protective earth systems requiring higher conductor capacity and dependable electrical performance.
Manufactured using industrial-grade polyamide housing, the terminal block offers excellent insulation characteristics, strong mechanical durability, and dimensional stability under industrial operating conditions. The housing material performs reliably in environments exposed to vibration, temperature variation, and continuous electrical loading.
With a rated voltage of 1000V and rated current capacity of 76A, CSCG16T supports grounding and electrical safety requirements across a wide range of industrial applications.
Its compact design helps optimize enclosure space while maintaining accessibility for installation and servicing. The terminal block contributes to cleaner panel layouts and improved cable management practices.
The spring-operated conductor retention system also supports both stranded and solid conductor configurations, increasing installation flexibility across different industrial standards.
CSCG16T is widely used in industrial control panels, electrical cabinets, automation systems, machine building, switchgear assemblies, PLC installations, process industries, instrumentation panels, OEM equipment manufacturing, and industrial grounding networks where dependable protective earth connectivity is essential.
Its combination of compact dimensions, maintenance-free spring clamp operation, high conductor capacity, and reliable grounding performance makes CSCG16T a practical solution for modern industrial electrical systems.
| Specification | Details |
|---|---|
| Product Code | CSCG16T |
| Product Type | Grounding Terminal Block |
| Terminal Function | Protective Earth (PE) |
| Connection Technology | Spring Clamp |
| Rated Voltage | 1000 V |
| Rated Current | 76 A |
| Conductor Capacity | Up to 16 sq.mm |
| Wire Entry Orientation | Top Entry |
| Housing Material | Polyamide |
| Mounting Type | DIN 35 / DIN 35-15 Rail |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Connection Method | Spring Operated |
| Grounding Method | Direct DIN Rail Contact |
| Application Category | Industrial Grounding |
CSCG16T is suitable for:
Provides dependable grounding continuity.
Spring clamp design eliminates periodic retightening.
Top-entry access supports efficient wiring.
Supports structured conductor management.
Maintains stable electrical contact under demanding conditions.
