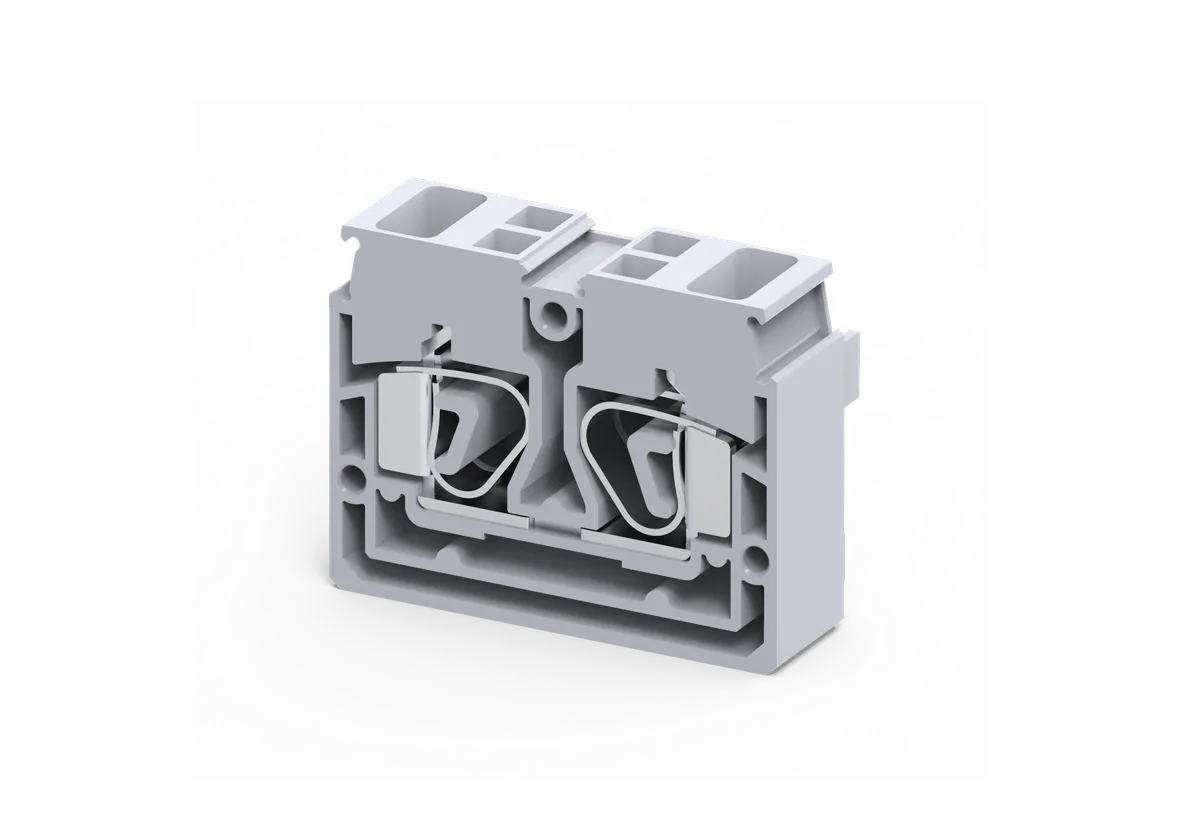

The CSCP2.5T2 is a 2.5 sq.mm Spring Clamp Panel Mount Terminal Block designed for compact industrial wiring and panel assembly applications. It belongs to the Connectwell spring clamp terminal block series and provides multiple connection points with two connection points on both sides, making it suitable for high-density wiring environments.
This terminal block is engineered for applications where installation space is limited but reliable electrical connectivity is essential. The modular structure allows multiple blocks to be stacked into multi-pole assemblies and mounted directly onto panel surfaces using mounting end plates. External insulated shorting links may also be used for cross connections when required.
The spring clamp connection system reduces wiring time and delivers consistent contact pressure, helping improve connection reliability in industrial environments.
The CSCP2.5T2 Spring Clamp Panel Mount Terminal Block is designed to simplify panel wiring while maintaining strong electrical performance.
Unlike conventional screw terminals that require frequent tightening, spring clamp technology maintains secure conductor pressure automatically. This reduces maintenance requirements and supports long-term reliability.
Its compact footprint makes it suitable for:
The terminal blocks are modular and can be expanded depending on connection requirements, making them suitable for scalable industrial designs.
| Specification | Details |
|---|---|
| Product Model | CSCP2.5T2 |
| Product Type | Spring Clamp Panel Mount Terminal Block |
| Product Function | Feed Through |
| Connection Style | Spring Clamp |
| Mounting Type | Panel / Surface Mount |
| Wire Entry | Top Entry |
| Rated Voltage (IEC) | 800 V |
| Rated Voltage (UL / CSA) | 600 V |
| Rated Current (IEC) | 24 A |
| Rated Current (UL / CSA) | 20 A |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Polyamide 66 |
| Width | 5 mm |
| Length | 35 mm |
| Height | 27.3 mm |
| Conductor Range (Stranded) | 0.2–2.5 mm² |
| Conductor Range (Solid) | 0.2–4 mm² |
| AWG Range | 22–14 AWG |
| Twin Ferrule Range | 0.2–1.5 mm² |
| Wire Strip Length | 11 mm |
| Standard Pack | 100 Pieces |
Specifications may vary slightly based on approvals and installation conditions.
Provides compact electrical termination inside automation panels.
Supports organized multi-point wiring.
Suitable for compact machine electrical systems.
Reliable for industrial control applications.
Used where multiple compact wire connections are required.
Supports scalable terminal configurations.
Spring clamp technology reduces connection time.
Supports higher wiring density.
Consistent contact pressure reduces loose wiring.
Modular design supports future growth.
Minimal retightening requirements.
Built for demanding environments.
