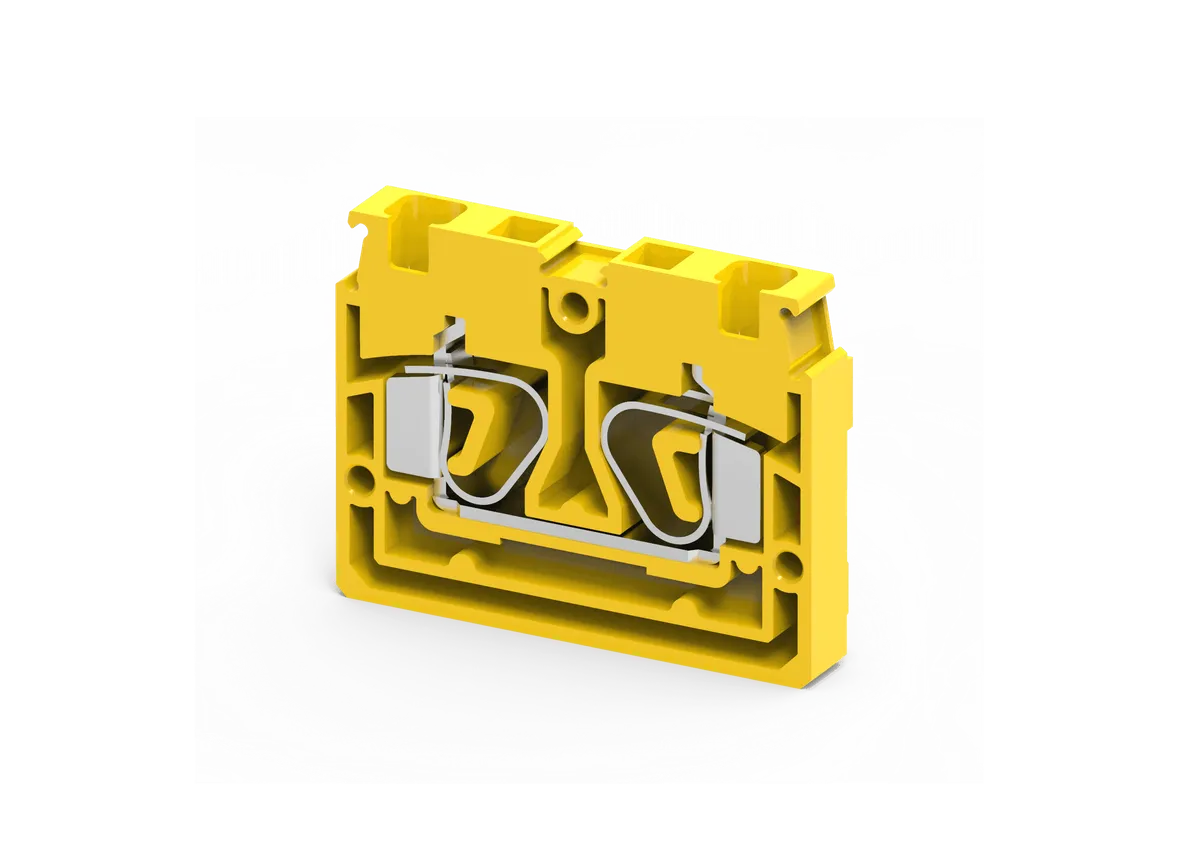

CSCP2.5TY is a high-performance 2.5 sq.mm Spring Clamp Panel Mount Terminal Block in Yellow colour, specially designed for compact electrical wiring applications in industrial control panels, switchgear assemblies, automation systems, machine wiring, and electrical distribution panels. This terminal block provides a safe, secure, and maintenance-free wire connection using advanced spring clamp connection technology, making it ideal for modern industrial electrical installations where reliability, compactness, and vibration resistance are important requirements.
CSCP2.5TY belongs to Connectwell’s CSCP2.5T Series Panel Mount Terminal Blocks, which are specially engineered for direct mounting on panel surfaces using screws. These terminal blocks are modular in construction and can be stacked together to create multi-pole assemblies, allowing panel builders to create organized and space-saving wiring solutions. This design is especially useful in industrial control cabinets, OEM machinery, PLC panels, instrumentation systems, and compact electrical assemblies.
The terminal block supports conductor sizes from 0.2 mm² to 4 mm² solid wire and up to 2.5 mm² stranded wire, making it suitable for a wide range of industrial wiring applications. With a rated current of 24A and rated voltage of 800V (IEC), CSCP2.5TY delivers excellent electrical performance for signal wiring, control wiring, and low to medium power distribution applications. It also carries UL/CSA ratings of 600V and 20A, making it suitable for international electrical standards.
The spring clamp technology ensures a vibration-proof and gas-tight connection, eliminating the need for regular tightening required in screw-type terminals. This significantly reduces maintenance and improves long-term electrical reliability in industrial environments with vibration, movement, or temperature changes. The spring clamp is screwdriver operated, making wire insertion and removal quick and easy during installation and maintenance.
CSCP2.5TY features a top wire entry orientation, which simplifies cable routing and improves installation convenience in compact electrical panels. Its single-level, 2 connection design makes it ideal for feed-through wiring applications, where incoming and outgoing conductors need secure electrical continuity. The 5 mm width, compact body, and modular stackable design help save valuable panel space while maintaining neat wiring arrangements.
Manufactured from high-grade Polyamide housing material, CSCP2.5TY provides excellent electrical insulation, flame resistance, and mechanical durability. The material has a Comparative Tracking Index (CTI) of 600, ensuring better resistance against electrical tracking and leakage currents in high-voltage environments. The terminal block also offers a rated surge voltage of 8kV, improving protection against transient voltage spikes in industrial electrical systems.
The terminal block operates efficiently in a wide temperature range from -40°C to +105°C, making it suitable for use in harsh industrial environments. Its short-time withstand current of 0.3 kA, Overvoltage Category III, and Pollution Degree 3 ratings further enhance electrical safety and reliability in demanding panel applications.
The Yellow colour housing is useful for circuit identification, phase marking, and organized panel wiring. CSCP2.5TY is commonly used in applications where color-coded wiring improves maintenance efficiency and electrical safety. Connectwell also offers multiple color variants in the same series for flexible installation requirements.
CSCP2.5TY is widely used in:
Its compact design, spring clamp connection technology, panel mount flexibility, high electrical ratings, and maintenance-free performance make CSCP2.5TY a preferred solution for industrial electricians, automation engineers, OEM manufacturers, and panel builders.
| Specification | Details |
|---|---|
| Model Number | CSCP2.5TY |
| Product Type | Spring Clamp Panel Mount Terminal Block |
| Connection Type | Spring Clamp |
| Product Function | Feed Through |
| Number of Levels | 1 |
| Number of Connections | 2 |
| Rated Voltage (IEC) | 800 V |
| Rated Current (IEC) | 24 A |
| Rated Voltage (UL/CSA) | 600 V |
| Rated Current (UL/CSA) | 20 A |
| Conductor Size Solid | 0.2 – 4 mm² |
| Conductor Size Stranded | 0.2 – 2.5 mm² |
| Twin Ferrule Capacity | 0.2 – 1.5 mm² |
| AWG Range | 22 – 14 AWG |
| Wire Entry Orientation | Top |
| Operation Type | Screwdriver Operated |
| Width (Thickness) | 5 mm |
| Length | 35 mm |
| Height | 27.3 mm |
| Housing Material | Polyamide |
| Colour | Yellow |
| Rated Surge Voltage | 8 kV |
| Short-Time Withstand Current | 0.3 kA |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Operating Temperature | -40°C to +105°C |
| Mounting Type | Panel / Surface Mount |
