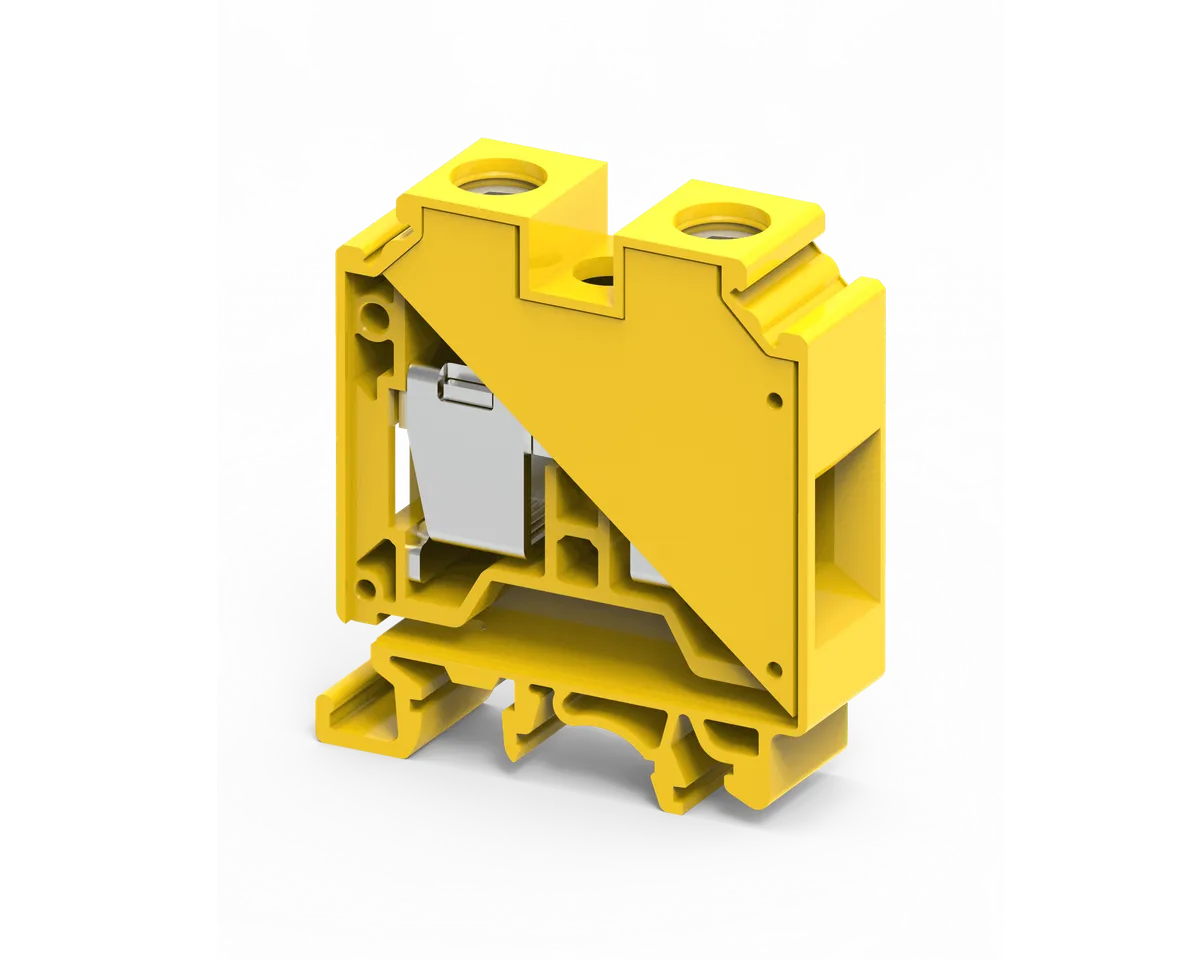

The CTS16UY is a premium-quality 16 sq.mm feed through terminal block designed for industrial electrical wiring, control panels, automation systems, switchgear assemblies, instrumentation systems, and power distribution applications. Built for heavy-duty industrial usage, this terminal block delivers reliable electrical connectivity, high current carrying performance, and secure wire termination for modern industrial infrastructure.
Engineered with a strong screw clamp connection mechanism, the CTS16UY provides stable and vibration-resistant electrical connections that ensure long-term operational reliability even in demanding industrial environments. Its robust design and industrial-grade construction make it suitable for continuous electrical operations involving high current loads and critical control applications.
The CTS16UY terminal block is manufactured using high-quality polyamide insulation material, providing superior thermal stability, flame resistance, electrical insulation, and mechanical strength. This ensures safe and reliable performance under harsh industrial operating conditions including heat, vibration, and continuous electrical load applications.
Its specially engineered flexible mounting foot allows quick and secure installation on standard DIN 32, DIN 35, and DIN 35-15 mounting rails. The terminal block can be easily mounted or removed using a screwdriver, making panel assembly and maintenance faster and more efficient.
The screw clamp technology used in the CTS16UY ensures firm conductor termination with low contact resistance. This minimizes power loss, improves electrical conductivity, and enhances overall system reliability. The terminal block also supports secure termination of stranded conductors, ferruled wires, and lugged conductors, making it highly versatile for different industrial wiring applications.
Another major advantage of the CTS16UY is its excellent space optimization capability. Despite supporting large conductor sizes up to 16 sq.mm, the terminal block maintains a compact width of only 12 mm, allowing efficient panel space utilization inside densely populated electrical control cabinets.
The terminal block also includes dedicated marker holding recesses that support circuit identification tags. This feature helps electricians and maintenance teams organize wiring systems professionally and simplifies troubleshooting operations during maintenance and servicing.
Cross connections can be easily achieved using compatible shorting links, sleeves, and screws, making the CTS16UY highly suitable for industrial power distribution and signal distribution systems where multiple circuits require interconnected wiring arrangements.
The CTS16UY is widely used in:
Its durable construction and industrial-grade performance make it ideal for environments where electrical safety, stable current transmission, and long service life are critical operational requirements.
The terminal block supports conductor sizes from 0.2 mm² to 16 mm², making it suitable for both control wiring and power distribution applications. It can also accommodate dual conductor terminations with twin ferrules, providing additional wiring flexibility for industrial electrical engineers and panel builders.
The CTS16UY is designed according to international industrial standards and approvals, ensuring reliable performance across a wide range of industrial applications. Its high surge voltage rating and excellent insulation properties help protect electrical systems from voltage fluctuations and transient electrical stress.
The yellow color housing enables easy circuit identification and organized panel wiring, especially in applications where color-coded electrical systems are used for safety and maintenance efficiency.
Its strong M4 screw connection mechanism ensures secure tightening and stable conductor retention even under mechanical vibration and thermal cycling conditions commonly found in industrial plants and machinery.
For industries requiring reliable, organized, and high-performance electrical connectivity solutions, the CTS16UY provides an ideal combination of durability, safety, compactness, and installation convenience.
| Parameter | Specification |
|---|---|
| Model Number | CTS16UY |
| Product Type | Feed Through Terminal Block |
| Rated Voltage | 1000 V |
| Rated Current | 76 A |
| Connection Type | Screw Clamp |
| Terminal Size | 16 sq.mm |
| Wire Range | 0.2 – 16 mm² |
| AWG Range | 20 – 4 AWG |
| Mounting Type | DIN 32 / DIN 35 / DIN 35-15 Rail |
| Housing Material | Polyamide |
| Screw Size | M4 |
| Tightening Torque | 1.2 Nm |
| Wire Entry Orientation | Side Entry |
| Stripping Length | 16 mm |
| Width | 12 mm |
| Length | 43 mm |
| Height with DIN 35 x 7.5 Rail | 47.8 mm |
| Height with DIN 35 x 15 Rail | 55.5 mm |
| Height with DIN 32 Rail | 52.8 mm |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Operating Method | Screwdriver |
| Color | Yellow |
Supports up to 76A current for heavy-duty industrial power applications.
Slim 12 mm width saves valuable panel space inside control cabinets.
Ensures strong and vibration-resistant electrical connections.
Quick mounting and dismounting on standard DIN rails.
Premium polyamide housing offers excellent thermal and electrical insulation.
Suitable for automation, instrumentation, switchgear, and power distribution systems.
Supports marker tags and cross connection accessories for professional panel layouts.
