Product Description

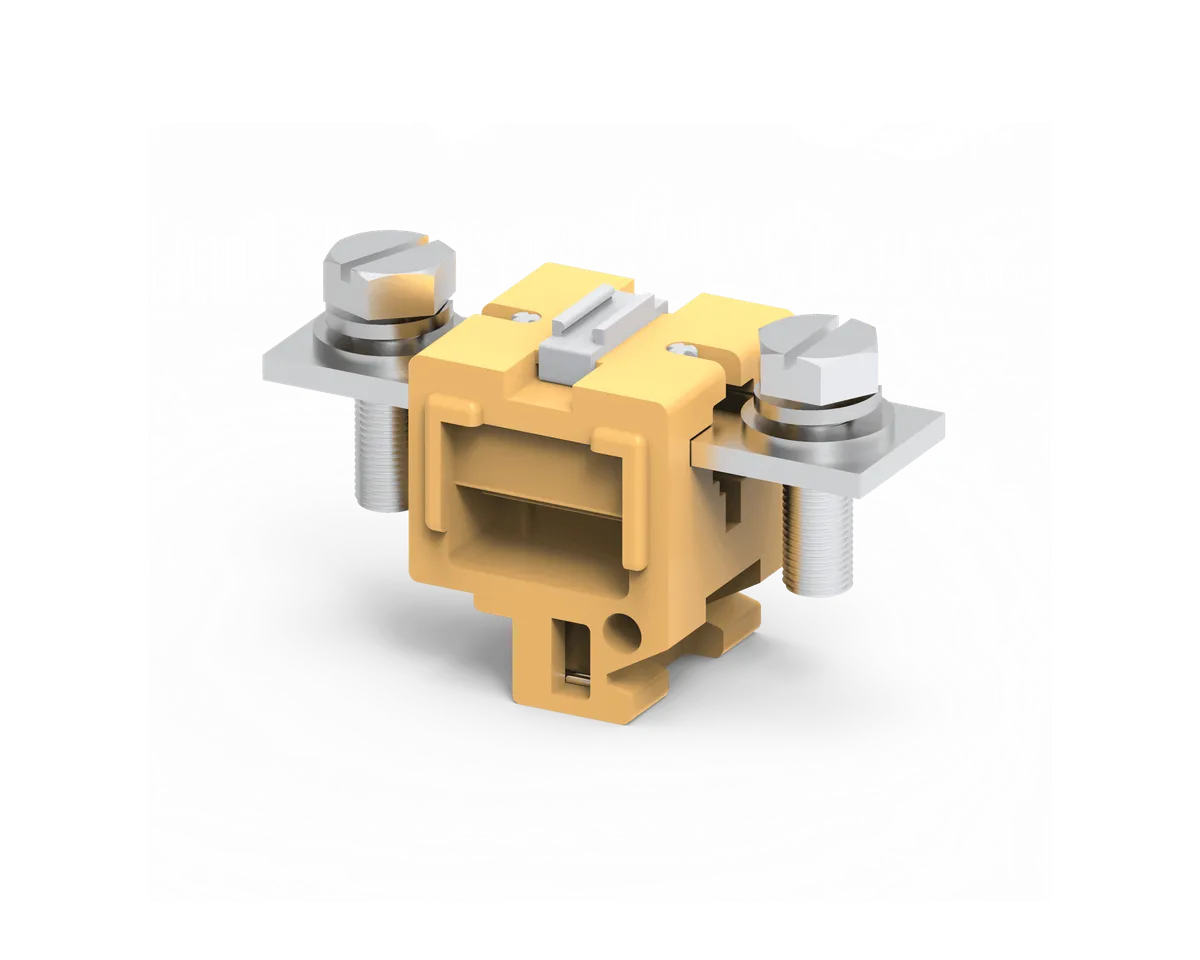

SB Smart CTS70L is a heavy-duty 70 sq.mm Feed Through Terminal Block specially designed for high current conductor termination, secure electrical continuity, and professional power distribution in industrial control panels, switchgear assemblies, power distribution boards, transformer panels, machine control systems, and heavy-duty electrical applications. This industrial-grade terminal block is engineered for applications where large conductor capacity, safe power transfer, strong mechanical connection, and long-term reliability are critical.

The SB Smart CTS70L terminal block is designed with a feed-through connection system, allowing safe and direct electrical continuity between incoming and outgoing conductors. In high-current industrial electrical systems, secure conductor termination is essential for maintaining circuit safety and reducing power loss. The feed-through design simplifies conductor connection while improving wiring organization and panel layout in professional electrical installations.

Designed for 70 sq.mm conductor capacity, the SB Smart CTS70L is suitable for large-size conductors used in heavy-duty electrical circuits. It supports both stranded and solid conductors and is specially built for applications where high current carrying capacity and strong conductor holding are required. The terminal block offers a rated voltage of 1000V and a high current carrying capacity of 192A, making it ideal for industrial power distribution, switchgear panels, motor control centers, transformer connections, and heavy electrical equipment.

One of the standout features of the SB Smart CTS70L is its heavy-duty screw clamp connection technology, which provides strong conductor holding force and dependable electrical contact. In large conductor applications, secure wire clamping is essential to prevent loose connections and overheating. The robust screw clamp design ensures vibration-resistant conductor holding, stable electrical continuity, and long-term safety in industrial environments.

Manufactured using high conductivity copper alloy current bars, the SB Smart CTS70L ensures efficient current transfer with low contact resistance and minimal electrical losses. The conductive parts are specially engineered to reduce heat generation during operation and maintain stable electrical performance in demanding high-current applications. This improves energy efficiency and ensures safe power transfer in industrial electrical systems.

Built with a high-grade flame retardant polyamide insulated housing, the SB Smart CTS70L provides excellent electrical insulation, mechanical strength, heat resistance, flame resistance, and long operational life. The insulated housing protects conductive parts from accidental contact and environmental stress, improving safety in industrial control panels and switchgear systems. Its rugged industrial construction makes it suitable for demanding heavy-duty electrical installations.

The side wire entry design of the SB Smart CTS70L allows easy conductor insertion and improves cable routing for large conductors inside electrical enclosures. This helps electricians create organized wiring layouts while improving accessibility during installation and maintenance. The terminal block is compatible with DIN rail mounting, allowing secure installation in standard industrial electrical panels and switchgear assemblies.

Its compact heavy-duty modular construction helps save panel space while maintaining reliable conductor support and professional electrical panel organization. The terminal block also supports marker identification and jumper accessories for improved circuit labeling and flexible wiring arrangements.

With a rated surge voltage of 8KV, tightening torque of 12 Nm, and pollution degree 3, the SB Smart CTS70L is engineered for reliable performance in industrial environments exposed to electrical disturbances, vibration, voltage fluctuations, and continuous heavy-duty operation. Its industrial-grade construction ensures dependable long-term service in critical power applications.

SB Smart CTS70L is widely used in power distribution panels, switchgear assemblies, transformer panels, motor control centers, industrial control systems, heavy machinery wiring, OEM electrical systems, power plants, process industries, and industrial electrical installations where high current conductor termination is required.
