Product Description

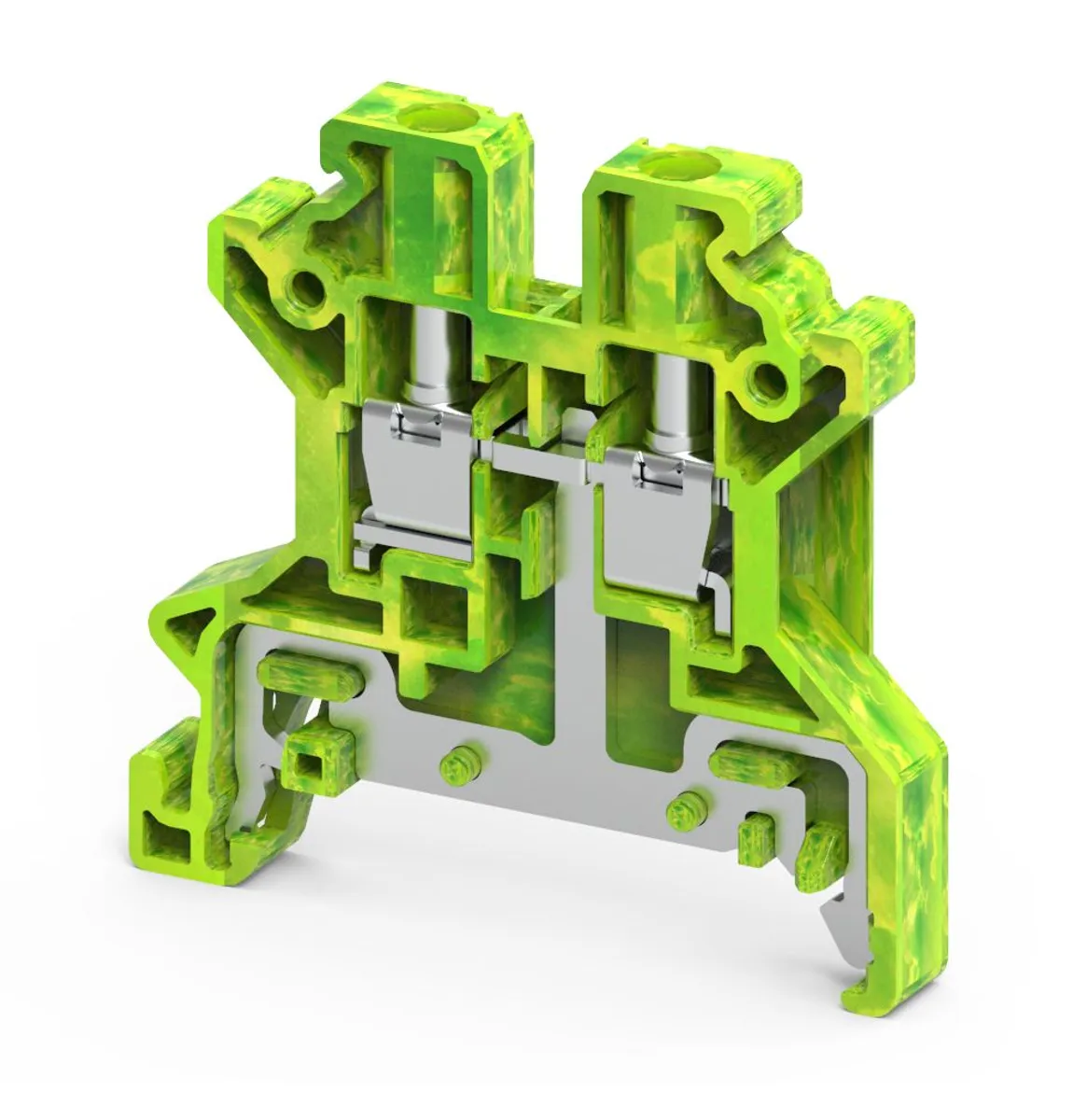

CTSG2.5 Shield Connection Terminal

Signal Shield Grounding Terminal for EMI Protection, Cable Shield Earthing & Noise-Free Signal Management

The CTSG2.5 Shield Connection Terminal is a specialized industrial terminal designed for shield grounding, cable screen termination, EMI suppression, signal noise reduction, and structured shield earthing management in industrial automation systems, instrumentation panels, PLC cabinets, communication circuits, and control panel wiring systems. This terminal is specially engineered for applications where shielded cable screens need safe and reliable grounding to protect signal quality and reduce electrical interference.

In industrial electrical and automation systems, many signal circuits use shielded cables for transmitting low-level analog signals, communication signals, instrumentation data, sensor outputs, encoder signals, and PLC control signals. These cables include a metallic screen or shield that protects the signal from external electromagnetic interference (EMI) and electrical noise.

However, if the shield is not properly grounded, several issues can occur such as:

• Signal noise interference
• False sensor readings
• Communication errors
• PLC signal instability
• Instrumentation inaccuracies
• Electrical disturbance in control systems

The CTSG2.5 is specially designed to solve these issues by providing a dedicated shield connection and grounding point for cable screens, ensuring stable signal integrity and controlled EMI suppression.

Unlike ordinary feed-through terminals, this terminal is dedicated for shield earthing applications, where cable screens need a safe low resistance path to earth without affecting signal conductors.

Its compact DIN rail mounting design, secure shield clamping system, and reliable grounding continuity make it ideal for industrial signal management systems.

Why This Product Is Used

Industrial shielded cable systems require:

• Cable shield grounding
• EMI noise suppression
• Signal interference protection
• Shield continuity management
• Stable signal quality
• Structured shield earthing
• Communication signal protection
• Reliable instrumentation grounding

Without a dedicated shield grounding terminal, systems may face:

• Signal noise interference
• Communication instability
• Sensor reading errors
• Control signal disturbance
• Grounding inconsistency
• Poor shield continuity

The CTSG2.5 solves these problems by creating a dedicated cable shield grounding point.

Key Product Features

• Shield connection terminal
• Cable screen grounding support
• EMI noise suppression design
• Signal interference reduction
• Reliable shield continuity
• DIN rail mounted installation
• Secure shield clamping system
• Low resistance grounding path
• Organized shield earthing support
• Compact industrial design
• Easy maintenance accessibility
• Long industrial service durability

Applications

• PLC Signal Wiring Systems
• Instrumentation Panels
• Sensor Signal Circuits
• Analog Input Systems
• Encoder Wiring Systems
• Communication Signal Lines
• Process Automation Systems
• Industrial Control Cabinets
• Shielded Cable Installations
• EMI Sensitive Electrical Systems
