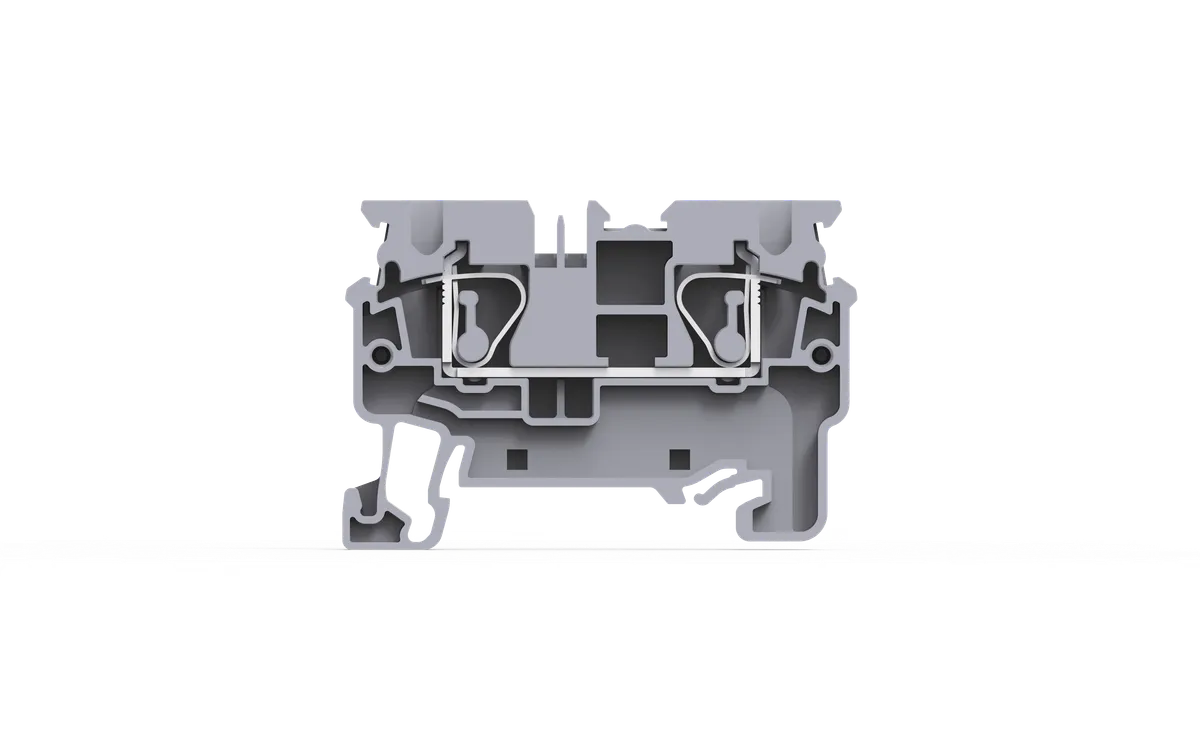

The CX10 is a 10 sq.mm feed-through spring clamp terminal block designed for secure and compact electrical wiring in industrial control panels, switchgear assemblies, PLC cabinets, machine wiring systems, and power distribution applications. This terminal block is specially engineered for applications where high current carrying capacity, vibration-resistant wiring, and fast conductor connection are required in industrial electrical installations.
Unlike conventional screw-type terminal blocks, the CX10 uses spring clamp connection technology, which provides constant contact pressure and secure conductor retention without the risk of loosening over time. This makes it highly suitable for industrial environments where machinery vibration, thermal expansion, and continuous electrical operation can affect traditional wiring systems. The spring clamp mechanism ensures stable electrical continuity and reduces maintenance requirements in long-term applications.
One of the major advantages of the CX10 is its 10 sq.mm conductor handling capacity, making it ideal for higher current circuits, power distribution systems, machine electrical wiring, industrial control panels, and automation applications. It supports a wide conductor range while maintaining secure electrical contact and efficient current transfer. This makes the terminal block suitable for both signal and power circuit applications where reliable connection performance is essential.
The feed-through terminal design provides direct conductor-to-conductor continuity, allowing incoming and outgoing wires to be securely connected through the same terminal block body. This makes panel wiring more organized, reduces cable clutter, and simplifies electrical circuit layout inside industrial control cabinets. In compact electrical enclosures, organized wiring improves maintenance access and troubleshooting efficiency.
The top-entry wire orientation of the CX10 improves installation convenience and cable routing, especially in compact control panels where vertical conductor insertion is preferred. The terminal is operated using a screwdriver to open the spring clamp mechanism, after which the conductor is inserted and automatically clamped securely when the tool is removed. This combines the speed of spring clamp technology with the reliability of strong conductor retention.
The CX10 supports conductor sizes from 0.2 mm² to 10 mm² stranded wire (24–6 AWG) and also supports ferrule and twin ferrule connections for flexible industrial wiring requirements. This makes it suitable for a wide variety of industrial electrical installations including power circuits, PLC systems, OEM machine panels, instrumentation systems, and switchgear assemblies.
Manufactured using high-grade polyamide insulated housing, the CX10 offers excellent dielectric strength, heat resistance, and mechanical durability. The insulated body helps improve electrical safety and ensures long service life even in industrial environments exposed to electrical load, vibration, and temperature fluctuations.
The terminal block is rated for 1000V operating voltage and 57A current capacity, making it suitable for industrial low-voltage power distribution and high-load wiring systems. Its DIN rail mounting compatibility (DIN 35 / DIN 35-15) ensures quick and organized installation inside industrial electrical panels.
The CX10 is widely used in:
With its spring clamp technology, 10 sq.mm conductor capacity, feed-through wiring design, and industrial-grade reliability, the CX10 is an efficient solution for professional electrical wiring and industrial control applications.
| Specification | Details |
|---|---|
| Product Model | CX10 |
| Product Type | Feed Through Spring Clamp Terminal Block |
| Rated Voltage | 1000 V |
| Rated Current | 57 A |
| Connection Type | Spring Clamp |
| Product Function | Feed Through |
| Wire Size (Stranded) | 0.2 – 10 mm² |
| AWG Range | 24 – 6 AWG |
| Twin Ferrule Capacity | Up to 4 mm² |
| Wire Entry | Top Entry |
| Mounting Type | DIN 35 / DIN 35-15 Rail |
| Housing Material | Polyamide |
| Width | 10 mm |
| Length | 71.7 mm |
| Height | 48.7 / 56.2 mm |
| Stripping Length | 18 mm |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
| Product Operation | Screwdriver Assisted Spring Clamp |
The CX10 is suitable for:
