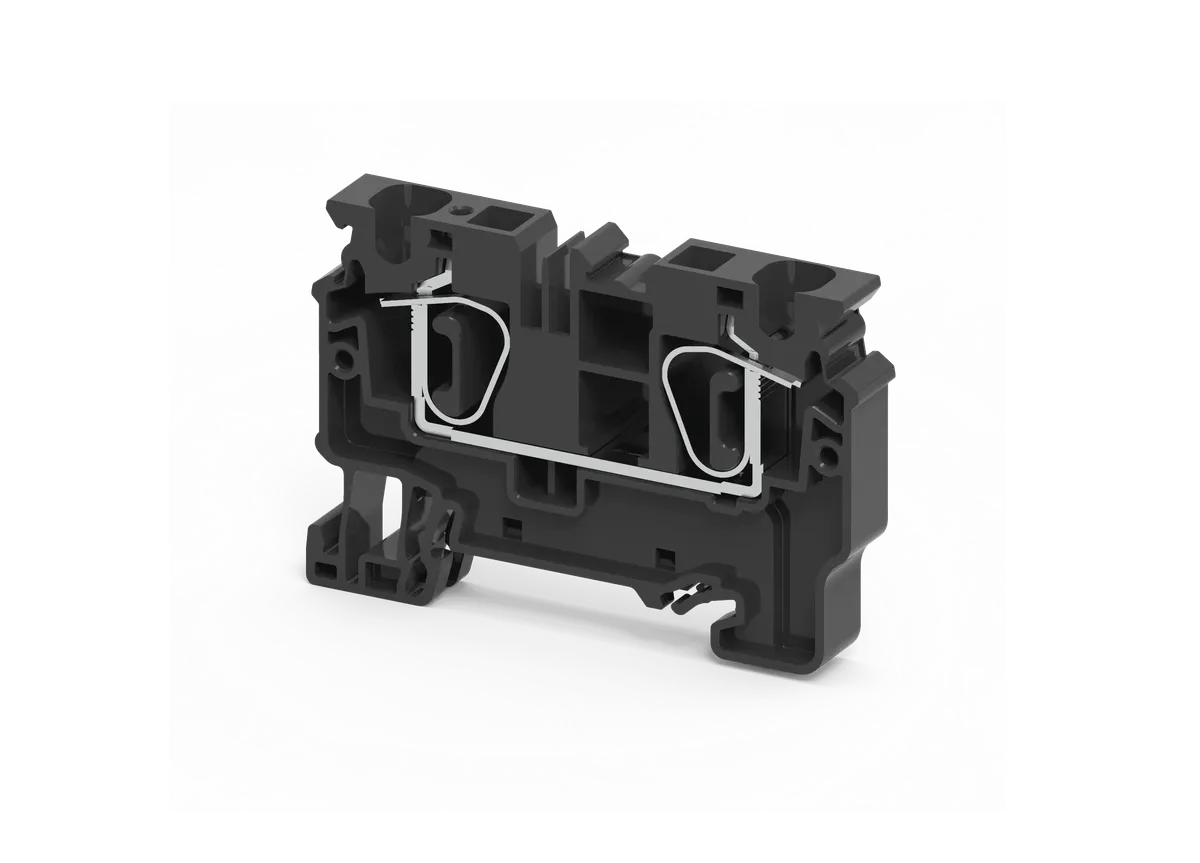

The CX10BK Feed Through Spring Clamp Terminal Block is a high-performance electrical connection component specially designed for secure conductor termination and reliable electrical continuity in industrial and commercial electrical systems. Manufactured by Connectwell, this terminal block is engineered for 10 sq.mm conductor capacity and is widely used in control panels, switchgear assemblies, industrial automation systems, power distribution boards, machine wiring applications, and OEM electrical installations. The black color coding provides easy circuit identification while maintaining professional wiring organization inside electrical panels.
In modern electrical systems, safe and compact wiring solutions are essential for maintaining efficient electrical connections and minimizing installation complexity. The CX10BK Feed Through Terminal Block is specifically designed to provide a secure connection point between incoming and outgoing conductors while ensuring strong electrical continuity and mechanical reliability. Its feed-through terminal design makes it ideal for organized panel wiring applications where conductor extension, branching, and circuit continuity are required.
One of the biggest advantages of the CX10BK Spring Clamp Terminal Block is its advanced spring clamp connection technology. Unlike traditional screw-type terminal blocks, this design uses a spring clamp mechanism that securely holds the conductor in place with consistent contact pressure. The terminal is operated using a screwdriver, which opens the spring clamp and allows easy wire insertion. Once the screwdriver is removed, the conductor gets tightly clamped onto the current bar, creating a secure, vibration-resistant electrical connection. This technology improves reliability, reduces maintenance, and speeds up wiring installation.
The CX10BK terminal block is designed for 10 sq.mm conductor cross-section, making it suitable for medium to high-current electrical applications. It supports a rated voltage of 1000V and a rated current of 57A, allowing safe operation in industrial power distribution circuits, control systems, switchgear panels, and automation equipment. These electrical ratings make the product highly suitable for demanding electrical installations where secure conductor connection and high current carrying capacity are essential.
Another major benefit of the CX10BK Feed Through Terminal Block is its compact DIN rail mounting design. It is compatible with DIN 35 / DIN 35-15 rails, allowing fast and organized installation inside electrical panels. The compact modular construction helps save panel space while enabling multiple terminal blocks to be installed side by side for professional wiring layouts. This improves panel aesthetics, maintenance accessibility, and troubleshooting convenience.
The terminal block features top wire entry orientation, making conductor insertion simple and convenient even in compact installation spaces. The spring clamp system ensures strong conductor retention, low contact resistance, and excellent vibration resistance. This makes the CX10BK terminal block highly suitable for industrial environments where machinery vibration and continuous electrical operation demand secure and maintenance-free connections.
Built with durable polyamide insulated housing, the terminal block provides excellent electrical insulation, mechanical strength, flame resistance, and heat resistance. The housing protects conductors from accidental contact and helps maintain safe conductor separation inside electrical enclosures. This makes the CX10BK Feed Through Spring Clamp Terminal Block a reliable solution for harsh industrial environments where safety and long-term performance are critical.
For additional electrical safety, the terminal block offers a rated surge voltage of 8KV and pollution degree 3, helping improve protection against transient voltage spikes and industrial environmental conditions. Its rugged construction and high-quality connection system make it a preferred choice for panel builders, electricians, automation engineers, OEM manufacturers, and industrial maintenance teams.
Whether used in electrical control panels, switchgear systems, distribution boards, industrial machinery, automation systems, renewable energy systems, or OEM electrical assemblies, the CX10BK Feed Through Spring Clamp Terminal Block delivers reliable electrical connectivity, compact installation, and long-term operational safety. Its advanced spring clamp technology, high electrical ratings, and durable construction make it a trusted terminal block solution for professional electrical applications.
The CX10BK Feed Through Spring Clamp Terminal Block is widely used in:
| Specification | Details |
|---|---|
| Model | CX10BK |
| Product Type | Feed Through Spring Clamp Terminal Block |
| Color | Black |
| Wire Capacity | 10 sq.mm |
| Rated Voltage | 1000V |
| Rated Current | 57A |
| Connection Type | Spring Clamp |
| Product Function | Feed Through |
| Housing Material | Polyamide |
| Wire Entry Orientation | Top Entry |
| Mounting Type | DIN Rail Mount |
| DIN Rail Compatibility | DIN 35 / DIN 35-15 Rail |
| Rated Surge Voltage | 8KV |
| Pollution Degree | 3 |
| Conductor Cross Section (Min.) | 0.2 sq.mm |
| Conductor Cross Section (Max.) | 10 sq.mm |
| AWG Range | 24 AWG – 6 AWG |
| Stripping Length | 18 mm |
| Height with DIN 35 x 7.5 mm Rail | 48.7 mm |
| Height with DIN 35 x 15 mm Rail | 56.2 mm |
| Length | 71.7 mm |
| Width (Thickness) | 10 mm |
| Operation Method | Screwdriver Operated |
| Product Standard Pack | 50 Pieces |
The CX10BK Feed Through Spring Clamp Terminal Block is designed for industrial applications where secure electrical connections, fast installation, and long-term reliability are essential. Its advanced spring clamp technology ensures vibration-resistant conductor termination, reducing maintenance and preventing loose wiring issues over time. With a 57A current rating and 1000V voltage capacity, it is suitable for medium to high-power industrial applications.
Its compact DIN rail mounting design helps save panel space while creating organized and professional wiring layouts. The polyamide insulated housing offers excellent heat resistance, flame retardant properties, and strong mechanical durability. The 8KV surge voltage protection further enhances electrical safety, making CX10BK a trusted solution for electricians, panel builders, and industrial automation professionals.
The CX10BK Feed Through Spring Clamp Terminal Block is widely used in industrial and commercial electrical systems where safe conductor connection and compact panel wiring are required.
