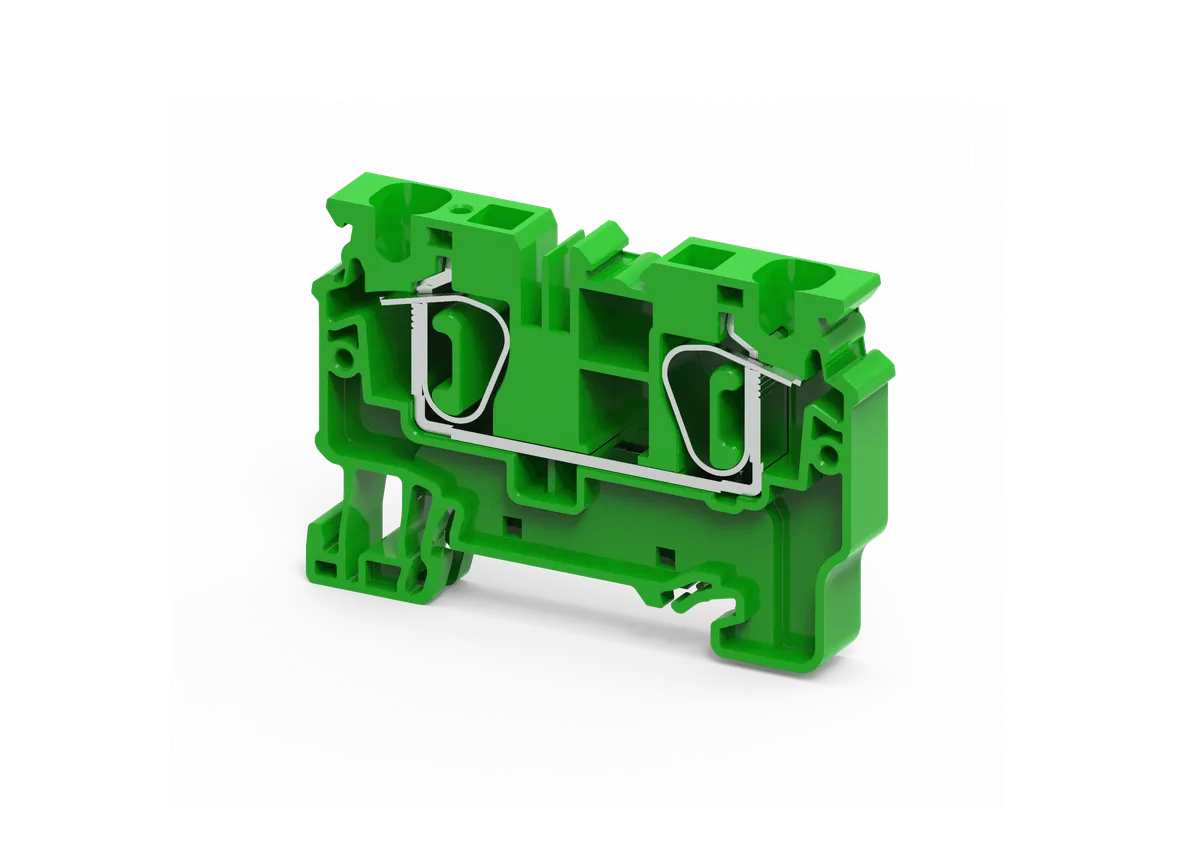

CX10GN is a 10 sq.mm feed-through spring clamp terminal block in green color, designed for safe and efficient electrical wiring in industrial panels, automation systems, switchboards, and distribution applications. This terminal block uses a spring clamp connection system, which provides secure wire holding without loosening under vibration, making it ideal for industrial electrical installations. The spring mechanism is operated using a screwdriver, allowing easy wire insertion and reliable clamping against the current bar.
The CX10GN terminal block is suitable for control panels where compact wiring, secure electrical contact, and fast installation are important. Its feed-through design allows electrical continuity between connected wires while maintaining proper insulation and organized panel wiring. The green color makes it useful for special circuit identification in industrial electrical assemblies. The compact body design helps save panel space while ensuring dependable long-term electrical performance.
Manufactured with high-grade polyamide insulating material, the CX10GN offers excellent heat resistance, electrical insulation, and mechanical strength. The spring clamp technology provides vibration-proof and gas-tight wire connections, reducing maintenance requirements and improving system reliability. It is widely used by panel builders, machine manufacturers, electrical contractors, and industrial automation engineers for safe and professional wiring solutions.
| Parameter | Specification |
|---|---|
| Product Code | CX10GN |
| Product Type | Feed Through Spring Clamp Terminal Block |
| Rated Voltage | 1000 V |
| Rated Current | 57 A |
| Conductor Capacity | 0.2 – 10 mm² |
| AWG Range | 24 – 6 AWG |
| Mounting Type | DIN 35 / DIN 35-15 Rail |
| Connection Type | Spring Clamp |
| Operation | Screwdriver Operated |
| Wire Entry Orientation | Top Entry |
| Housing Material | Polyamide |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Width | 10 mm |
| Length | 71.7 mm |
| Height (DIN 35x7.5 Rail) | 48.7 mm |
| Height (DIN 35x15 Rail) | 56.2 mm |
| Stripping Length | 18 mm |
| Color | Green |
| Product Function | Feed Through Terminal Block |
CX10GN is commonly used in:
