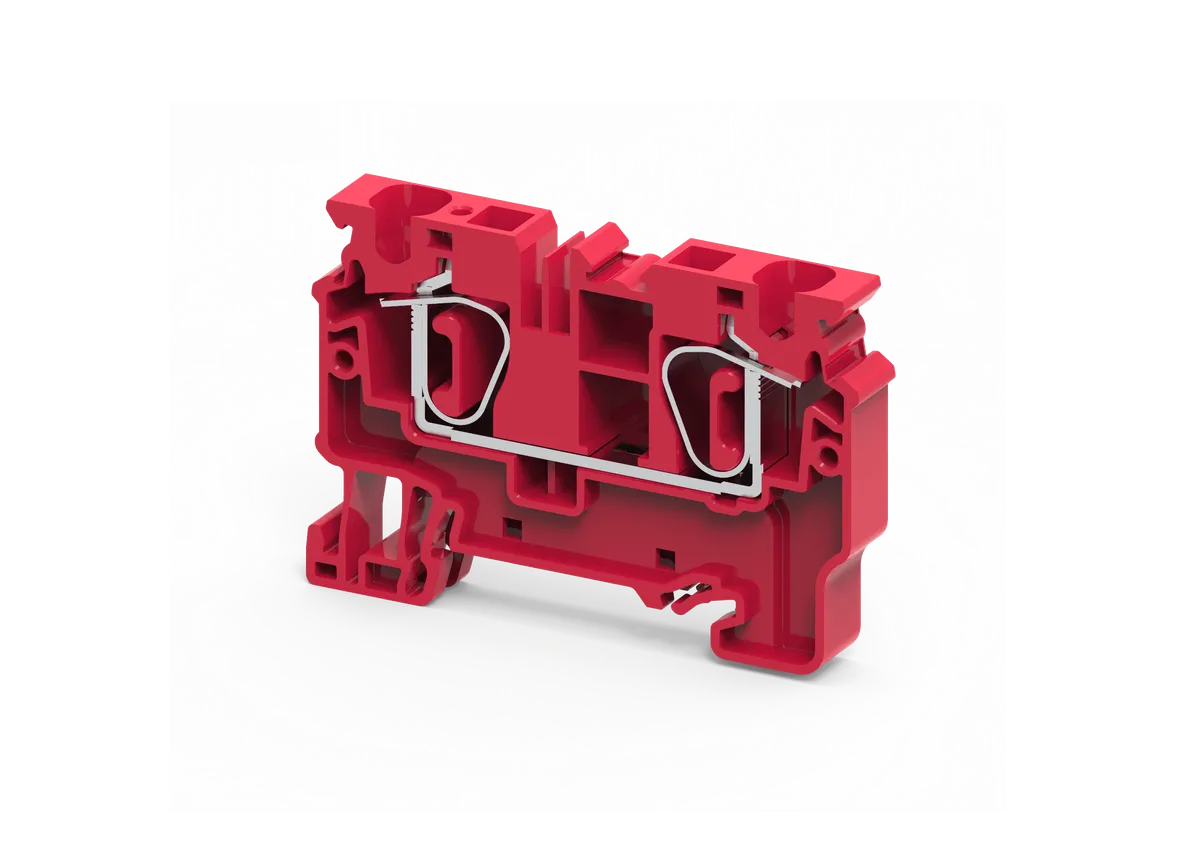

CX10R is a 10 sq.mm feed-through spring clamp terminal block in red color, designed for secure and efficient electrical wiring in industrial control panels, switchboards, automation systems, PLC panels, and distribution boards. This terminal block uses a spring clamp connection system, which provides strong and vibration-resistant wire clamping without the risk of loosening over time. It is ideal for industrial applications where reliable electrical continuity and compact panel wiring are essential.
The CX10R terminal block is specially engineered to simplify electrical installation by using a spring clamp mechanism operated with a screwdriver. This allows quick conductor insertion and secure contact against the current bar, reducing installation time and maintenance effort. The red color coding helps in circuit identification, making it easier for electricians and maintenance engineers to separate and identify specific wiring circuits inside electrical panels.
Manufactured from high-grade polyamide insulating material, the CX10R offers excellent thermal resistance, electrical insulation, and mechanical durability. Its compact DIN rail mountable design makes it suitable for space-saving industrial panel layouts while maintaining dependable electrical performance. The vibration-proof spring clamp connection improves wiring reliability in industrial machinery, OEM electrical panels, machine control systems, and automation applications.
Because of its robust construction, secure spring clamp technology, and organized color-coded design, the CX10R is widely used by panel builders, electrical contractors, automation engineers, and industrial maintenance professionals for professional electrical panel wiring solutions.
| Parameter | Specification |
|---|---|
| Product Code | CX10R |
| Product Type | Feed Through Spring Clamp Terminal Block |
| Color | Red |
| Rated Voltage | 1000 V |
| Rated Current | 57 A |
| Conductor Capacity | 0.2 – 10 mm² |
| AWG Range | 24 – 6 AWG |
| Connection Type | Spring Clamp |
| Mounting Type | DIN 35 / DIN 35-15 Rail |
| Wire Entry Orientation | Top Entry |
| Operation | Screwdriver Operated |
| Housing Material | Polyamide |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Width | 10 mm |
| Length | 71.7 mm |
| Height (DIN 35x7.5 Rail) | 48.7 mm |
| Height (DIN 35x15 Rail) | 56.2 mm |
| Stripping Length | 18 mm |
| Product Function | Feed Through Terminal Block |
CX10R is commonly used in:
