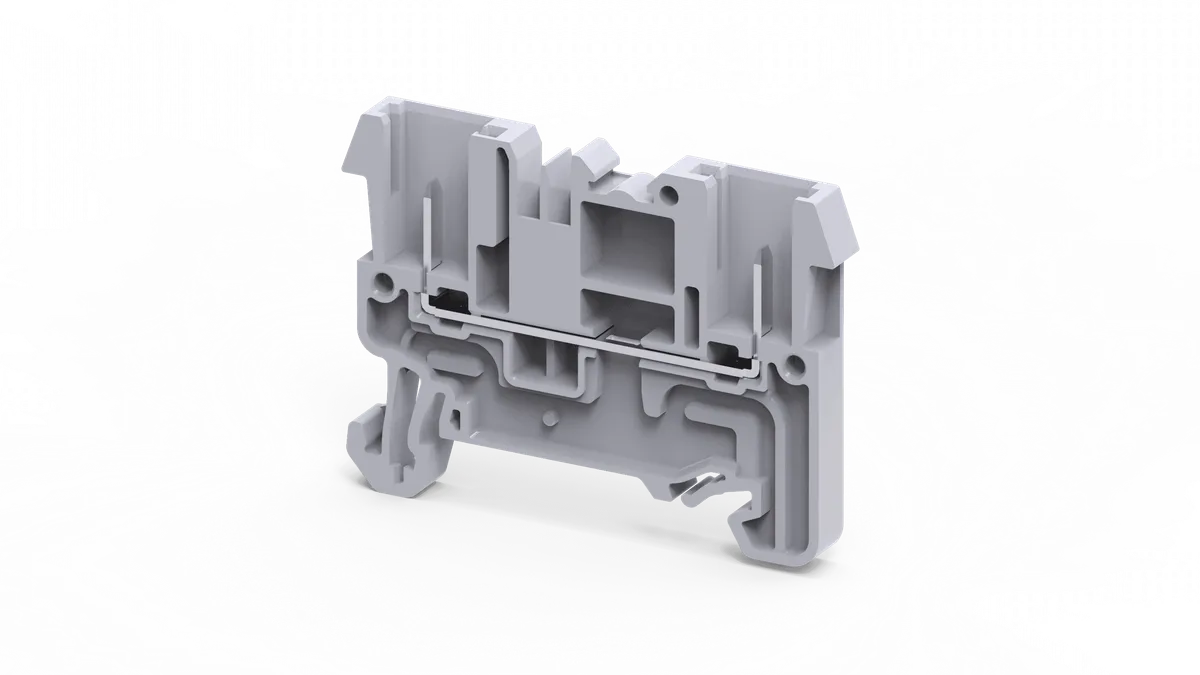

CX2.5 is a 2.5 sq.mm feed-through spring clamp terminal block specially designed for industrial electrical panel wiring where fast installation, secure conductor clamping, vibration-resistant electrical continuity, and organized wiring management are required. In control panels, switchboards, PLC cabinets, machine control systems, and automation assemblies, conductors need to be connected securely while ensuring long-term reliability and compact panel design.
The CX2.5 is used as a feed-through wiring terminal, allowing one conductor to enter from one side and another conductor to connect on the opposite side, creating a safe and continuous electrical path. This makes it ideal for industrial wiring systems where multiple circuits need to be interconnected efficiently inside electrical panels.
Unlike conventional screw-type terminals, the spring clamp connection system of CX2.5 offers quick conductor insertion, reduced wiring time, and strong pressure-based wire holding, making it highly suitable for industrial applications exposed to vibration and continuous operation.
The CX2.5 works using a spring clamp conductor locking mechanism, where the conductor is inserted into the terminal and held securely using spring pressure.
Its working design provides:
This design eliminates the risk of conductor loosening caused by vibration, thermal cycling, or long-term industrial operation.
The feed-through function allows current to pass safely between connected conductors while maintaining proper insulation and organized terminal distribution.
The CX2.5 improves safety and panel reliability by creating secure conductor connections with stable electrical contact.
Safety benefits include:
Spring clamp terminals provide safer long-term conductor performance compared to conventional loose screw connections.
The feed-through terminal design provides efficient conductor-to-conductor electrical continuity.
Benefits include:
This makes CX2.5 ideal for structured industrial electrical panel layouts.
The CX2.5 is manufactured using high-strength flame-retardant engineering polyamide insulation with precision spring clamp conductor hardware, designed for industrial operating environments.
Construction advantages include:
Its rugged construction supports long-term industrial electrical use.
Using CX2.5 improves electrical panel layout by providing compact and secure feed-through conductor connections.
Benefits include:
| Parameter | Specification |
|---|---|
| Product Code | CX2.5 |
| Product Type | Feed Through Spring Clamp Terminal Block |
| Color | Standard Industrial Finish |
| Rated Voltage | 800 V |
| Rated Current | 24 A |
| Conductor Capacity | 0.2 – 2.5 mm² |
| AWG Range | 24 – 12 AWG |
| Connection System | Spring Clamp |
| Mounting Style | DIN 35 / DIN 35-15 Rail |
| Wire Entry | Top Entry |
| Operation | Screwdriver Operated |
| Housing Material | Flame Retardant Polyamide |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Width | Compact Industrial Design |
| Electrical Function | Feed Through Terminal Block |
| Installation Type | Spring Pressure Connection |
| Mechanical Strength | High |
| Industrial Use | PLC Panels, Automation Systems, Switchboards |
Spring clamp design reduces installation time compared to conventional terminals.
Pressure-based conductor clamping provides stable electrical contact.
Suitable for machinery and industrial operating environments.
Supports organized and space-saving panel layouts.
Spring pressure minimizes conductor loosening over time.
Built for long-term industrial electrical applications.
Improves panel organization and maintenance efficiency.
CX2.5 is widely used in:
