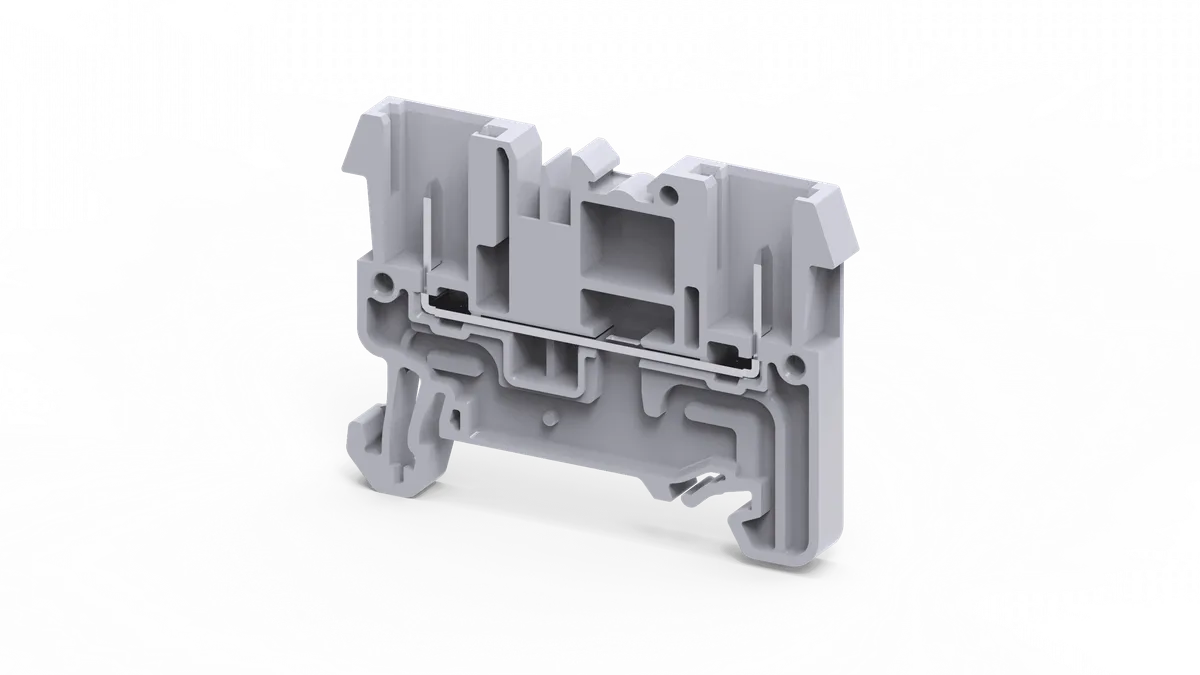

CX2.5/2B is a double level feed through spring clamp terminal block specially designed for industrial electrical applications where two independent conductor circuits need to be connected in one compact terminal body while saving DIN rail space. In electrical control panels, PLC systems, automation cabinets, machine control circuits, and switchboards, panel builders often need to manage multiple wiring circuits in limited space. Using standard single-level terminal blocks in such cases increases wiring congestion and consumes more panel area.
The CX2.5/2B solves this challenge by combining two independent feed-through spring clamp connections in one compact terminal housing, allowing more circuits to be connected vertically while maintaining clean and organized panel wiring.
It is ideal for applications where high wiring density, fast conductor installation, vibration-resistant connection, and professional terminal management are required.
The CX2.5/2B operates as a double level spring clamp feed-through terminal block, where conductors are connected through two separate electrical levels inside one compact terminal body.
Its working design provides:
The spring clamp connection mechanism securely holds conductors using pressure-based locking, eliminating the need for constant retightening and reducing wire loosening caused by vibration or long-term industrial use.
This design improves panel compactness while supporting fast and secure conductor installation.
The CX2.5/2B improves safety by organizing multiple conductor circuits in one compact and structured terminal arrangement.
Safety advantages include:
Spring clamp technology improves electrical safety by reducing loose conductor risk.
The double level design provides several industrial wiring benefits.
Benefits include:
This makes the CX2.5/2B ideal for compact industrial electrical panels.
The CX2.5/2B is manufactured using flame-retardant engineering polyamide insulation with precision spring clamp conductive hardware, designed for industrial electrical environments.
Construction advantages include:
Its rugged construction ensures dependable industrial electrical performance.
Using CX2.5/2B improves panel layout by combining two conductor circuits in one compact terminal block.
Benefits include:
| Parameter | Specification |
|---|---|
| Product Code | CX2.5/2B |
| Product Type | Double Level Feed Through Spring Clamp Terminal Block |
| Rated Voltage | 800 V |
| Rated Current | 24 A |
| Conductor Capacity | 0.2 – 2.5 mm² |
| AWG Range | 24 – 12 AWG |
| Connection System | Spring Clamp |
| Number of Levels | 2 Level |
| Mounting Style | DIN 35 / DIN 35-15 Rail |
| Wire Entry | Top Entry |
| Operation | Screwdriver Operated |
| Housing Material | Flame Retardant Polyamide |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Electrical Function | Double Level Feed Through Terminal |
| Installation Type | Spring Pressure Connection |
| Mechanical Strength | High |
| Industrial Use | PLC Panels, Automation Systems, Switchboards |
Supports compact and efficient multi-circuit wiring.
Spring clamp technology reduces installation time.
Reduces DIN rail usage in compact electrical panels.
Spring pressure ensures reliable wire locking.
Suitable for industrial operating conditions.
Built for demanding industrial applications.
Improves clean and structured wiring layouts.
CX2.5/2B is widely used in:
