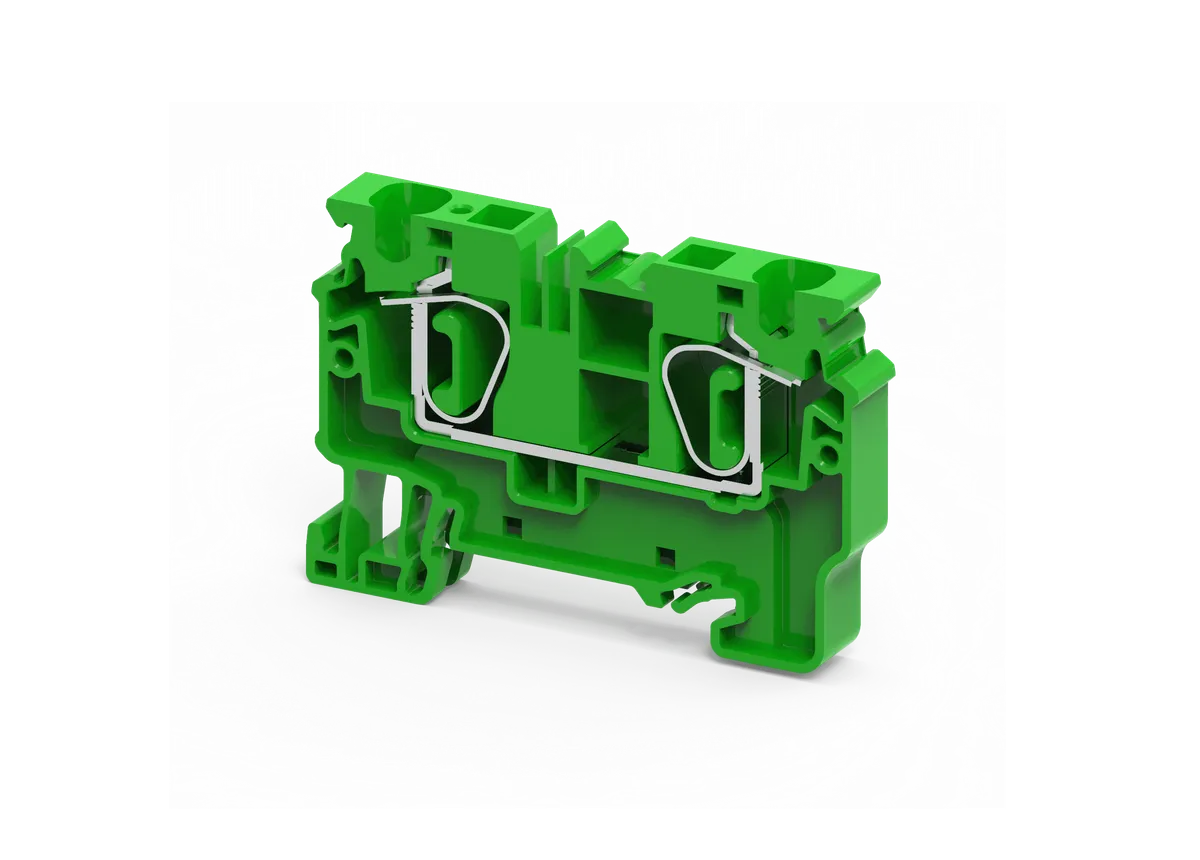

CX2.5/3GN is a three-level feed through spring clamp terminal block in green color specially designed for industrial electrical systems where high-density conductor termination, compact DIN rail installation, multi-circuit wiring, and dedicated circuit grouping are required. In electrical control panels, PLC cabinets, automation systems, switchboards, machine control assemblies, and instrumentation panels, engineers often need to terminate multiple circuits in a limited panel space while maintaining clear wiring organization and safe conductor management.
Using standard single-level terminals in such applications consumes more DIN rail space and creates panel congestion. The CX2.5/3GN solves this challenge by integrating three independent conductor connection levels in one compact insulated terminal body, allowing multiple conductors to be connected vertically within a single terminal assembly. This reduces panel space requirements, improves wiring density, and simplifies multi-circuit electrical distribution. The green housing provides a visual identification benefit and is commonly used for special circuit grouping, dedicated wiring sections, and organized terminal section recognition, helping maintenance engineers identify circuit sections quickly during servicing.
Its spring clamp conductor locking technology provides fast conductor insertion, vibration-resistant wire holding, and maintenance-free electrical continuity, making it highly suitable for industrial electrical environments where reliability, compactness, and fast installation are essential.
The CX2.5/3GN operates as a three-level spring clamp feed through terminal block, where conductors are connected through three independent electrical paths integrated inside one compact terminal body.
Its working design provides:
The spring clamp connection system uses pressure-based conductor locking, ensuring stable conductor retention and reliable electrical continuity without frequent retightening. This makes the terminal ideal for industrial control systems exposed to vibration and long-term electrical loading.
The green housing color improves visual recognition of dedicated terminal sections inside electrical panels.
Safety advantages include:
Color-coded terminal grouping improves electrical panel safety and maintenance efficiency.
Green terminal blocks are commonly used for:
This supports structured electrical panel management.
The CX2.5/3GN is manufactured using flame-retardant polyamide insulated housing with precision spring clamp conductive hardware, designed for demanding industrial electrical environments.
Construction advantages include:
Using CX2.5/3GN improves panel layout by combining multiple conductor circuits into one compact terminal block.
Benefits include:
| Parameter | Specification |
|---|---|
| Product Code | CX2.5/3GN |
| Product Type | Three-Level Feed Through Spring Clamp Terminal Block |
| Color | Green |
| Rated Voltage | 1000 V |
| Rated Current | 24 A |
| Conductor Capacity | 0.2 – 2.5 mm² |
| AWG Range | 24 – 12 AWG |
| Connection System | Spring Clamp |
| Number of Levels | 3 Level |
| Mounting Style | DIN 35 / DIN 35-15 Rail |
| Wire Entry | Top Entry |
| Operation | Screwdriver Operated |
| Housing Material | Flame Retardant Polyamide |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Stripping Length | 10 mm |
| Electrical Function | Feed Through Multi-Level Terminal |
| Mechanical Strength | High |
| Industrial Use | PLC Panels, Automation Systems, Switchboards |
Supports compact high-density industrial wiring.
Reduces DIN rail usage in electrical cabinets.
Green housing supports quick identification.
Spring pressure ensures reliable wire locking.
Suitable for industrial operating conditions.
Built for demanding industrial applications.
Improves clean and structured wiring layouts.
CX2.5/3GN is widely used in:
