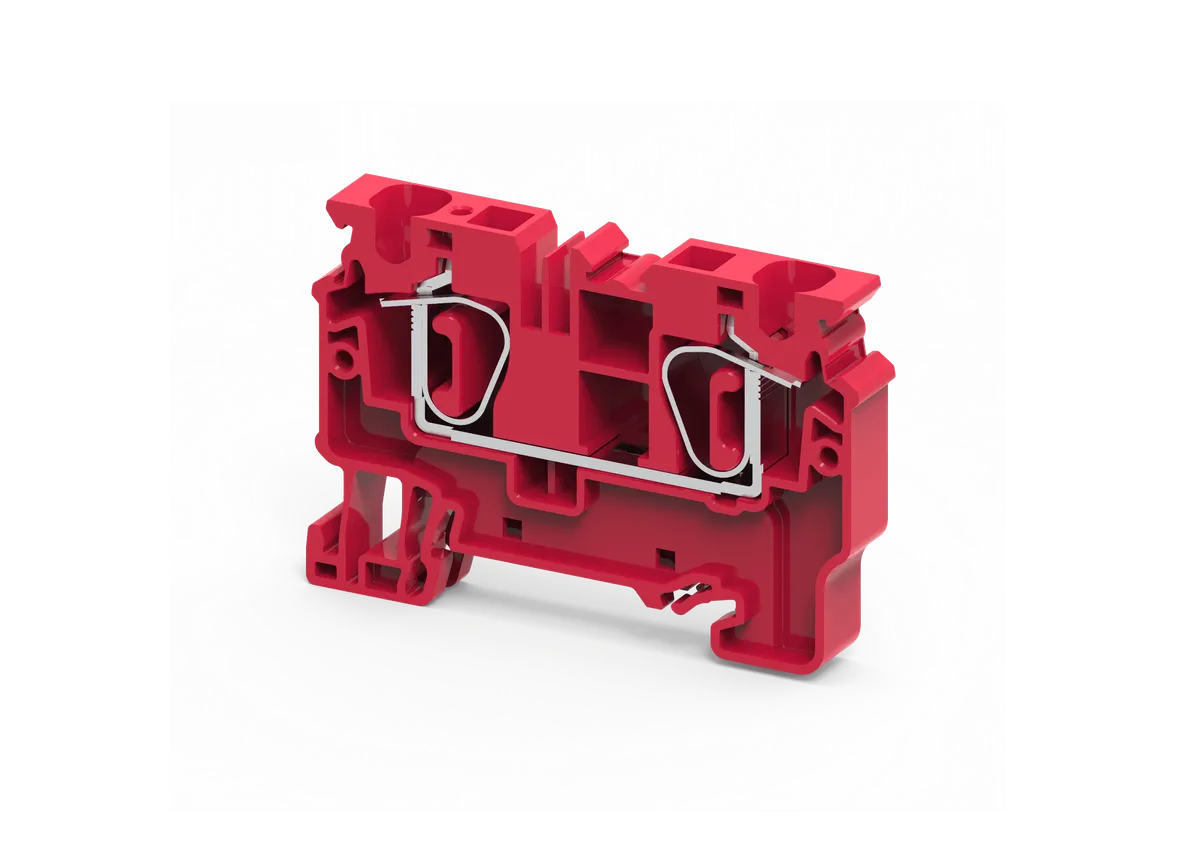

CX2.5/3R is a 2.5 sq.mm spring clamp feed through terminal block designed for secure conductor termination, reliable electrical connectivity, and organized panel wiring in industrial electrical systems. This compact feed through terminal block is specially engineered for modern control panels, automation systems, switchboards, PLC panels, machine wiring systems, and industrial electrical assemblies where fast wiring, vibration-resistant connections, and maintenance-friendly termination are essential.
Unlike conventional screw clamp terminal blocks, CX2.5/3R uses spring clamp connection technology, which ensures secure conductor holding through spring pressure. The conductor is inserted using a screwdriver-operated mechanism, and once the tool is removed, the spring clamp automatically applies pressure on the conductor, creating a firm and reliable electrical connection. This design minimizes the risk of loose wiring due to vibration, thermal cycling, or mechanical stress.
One of the major advantages of CX2.5/3R is its maintenance-free spring clamp design, which eliminates the need for periodic retightening required in screw-type connections. This improves electrical reliability and reduces maintenance effort in industrial installations.
The terminal block is designed for 2.5 sq.mm conductor capacity, making it suitable for signal circuits, control wiring, automation panels, and industrial power distribution systems requiring compact and efficient termination.
Its red color housing provides quick visual identification in electrical panels where color-based wiring segregation or circuit differentiation is required. Color-coded terminal blocks improve panel organization, maintenance speed, and troubleshooting efficiency.
✔ 24A Current Rating – Suitable for industrial electrical applications
✔ 1000V Rated Voltage – Reliable high-voltage insulation capability
✔ Spring Clamp Connection – Secure vibration-resistant conductor holding
✔ 2.5 sq.mm Conductor Capacity – Ideal for control and power wiring
✔ Red Color Coding – Easy circuit identification and panel organization
✔ DIN Rail Mounting – Fast and compact panel installation
✔ Tool-Assisted Spring Mechanism – Quick wiring and secure contact
✔ Maintenance-Free Connection – No periodic retightening required
✔ Compact 5mm Width – Supports high-density wiring panels
✔ Polyamide Housing – Strong insulation and mechanical durability
The spring clamp technology improves wiring reliability by maintaining consistent contact pressure over time. This reduces connection resistance and improves long-term electrical performance.
CX2.5/3R is widely used in PLC panels, control panels, industrial automation systems, relay panels, machine wiring, process control systems, switchboards, and electrical distribution applications where reliable feed through terminal connections are required.
| Parameter | Specification |
|---|---|
| Product Code | CX2.5/3R |
| Product Type | Spring Clamp Feed Through Terminal Block |
| Rated Current | 24 A |
| Rated Voltage | 1000 V AC/DC |
| Rated Surge Voltage | 8 KV |
| Conductor Size | 0.2 – 2.5 sq.mm |
| AWG Range | 24 – 12 AWG |
| Connection Type | Spring Clamp |
| Product Function | Feed Through |
| Wire Entry Orientation | Side Entry |
| Mounting Type | DIN 35 / DIN 35-15 Rail |
| Housing Material | Polyamide |
| Color | Red |
| Width (Thickness) | 5 mm |
| Length | 62.2 mm |
| Height with DIN 35 x 7.5 Rail | 38 mm |
| Height with DIN 35 x 15 Rail | 45.5 mm |
| Stripping Length | 10 mm |
| Operating Tool | Screwdriver |
| Pollution Degree | 3 |
| Mechanical Stability | High |
| Insulation Property | Non-Conductive |
| Function | Electrical Feed Through Connection |
| Application | Industrial Panel Wiring |
