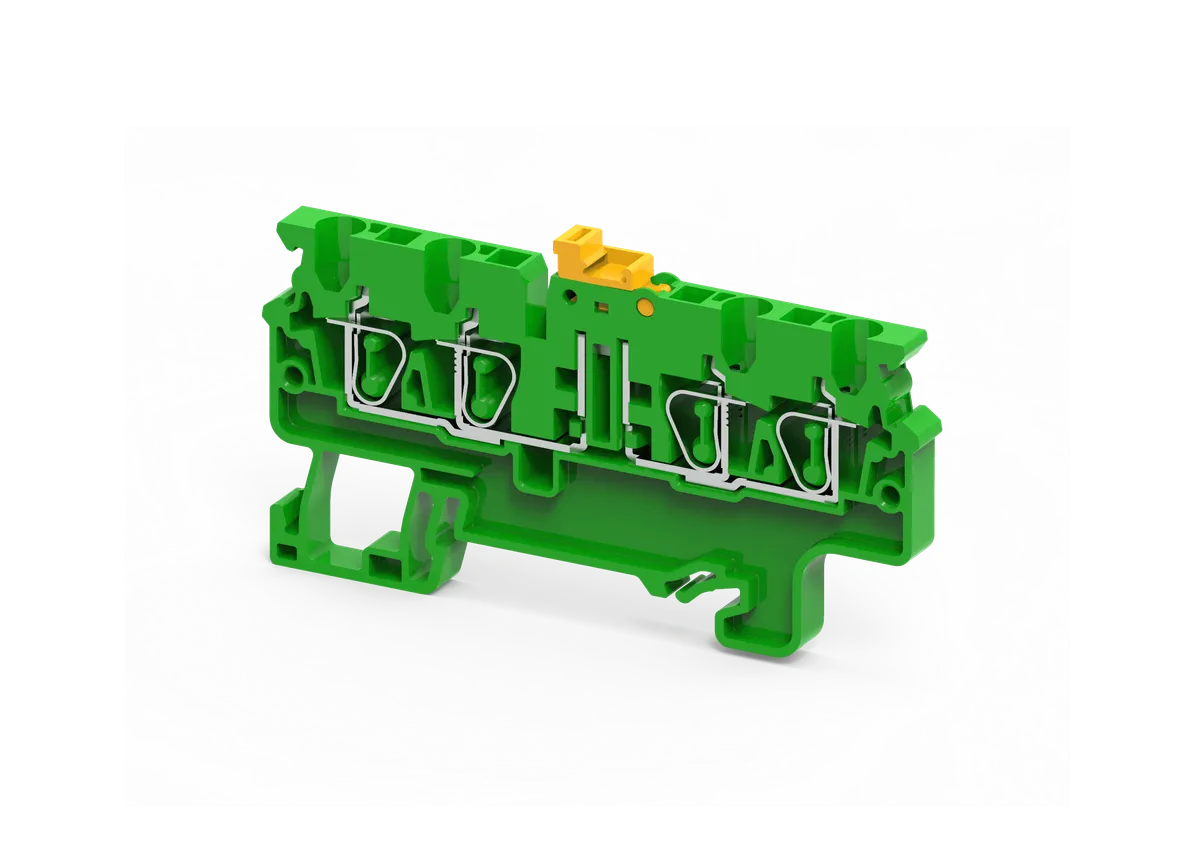

The Connectwell CX2.5/4GN is a high-quality 2.5mm² feed-through spring clamp 4-wire terminal block designed for fast, secure, and maintenance-free electrical connections in industrial control panels and automation systems. Featuring four independent wire connection points, it enables efficient distribution and termination of multiple conductors while minimizing wiring space.
Equipped with advanced spring clamp connection technology, the CX2.5/4GN provides consistent contact pressure for reliable electrical performance, even in high-vibration environments. The push-in spring mechanism allows quick conductor insertion, reducing installation time and eliminating the need for periodic screw tightening.
Manufactured from premium flame-retardant engineering thermoplastic with high-conductivity copper alloy current bars, this terminal block offers excellent electrical insulation, mechanical strength, and long-term durability. The green housing allows easy circuit identification and supports organized wiring within electrical panels.
Ideal for DIN rail mounting, the Connectwell CX2.5/4GN is widely used in PLC panels, machine building, industrial automation, instrumentation, and process control applications where dependable multi-wire
| Parameter | Specification |
|---|---|
| Manufacturer | Connectwell |
| Part Number | CX2.5/4GN |
| Product Type | Feed Through Terminal Block |
| Rated Conductor Size | 2.5mm² |
| Number of Connections | 4-Wire |
| Connection Technology | Spring Clamp |
| Terminal Type | Feed Through |
| Housing Color | Green |
| Mounting Type | DIN Rail Mount |
| Conductor Type | Solid & Stranded Copper Conductors (with ferrules where applicable) |
| Contact Material | High-Conductivity Copper Alloy |
| Housing Material | Flame-Retardant Engineering Thermoplastic |
| Application | Electrical Wire Termination & Signal/Power Distribution |
| UOM | Each (EA) |
| Standard Pack | 100 |
| Minimum Order Quantity | 200 |
| Product Group | A |
